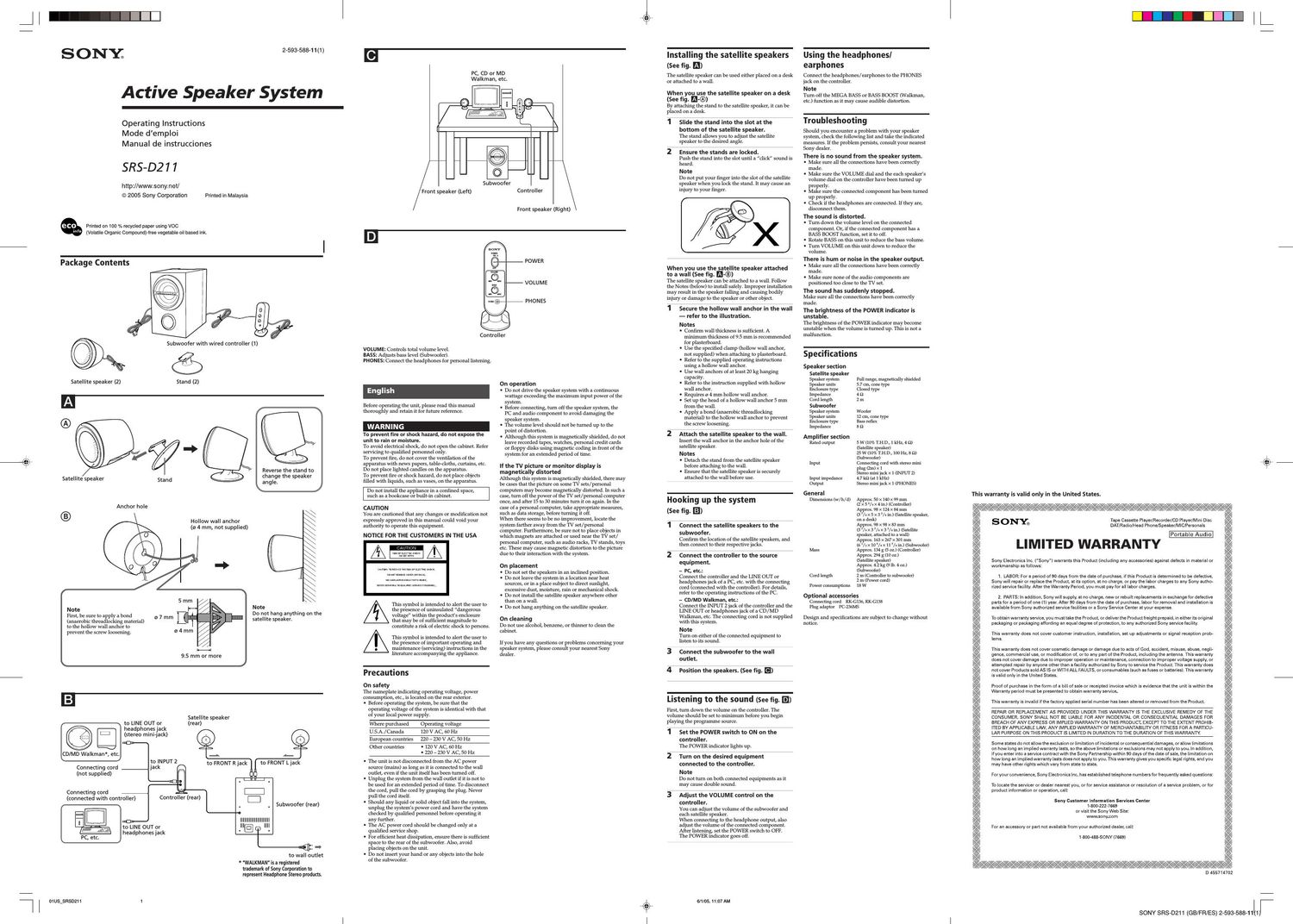

Page 1

Jl- ./

SONY.

Active

2-593-588-11(1)

Speaker System

Operating Instructions

Mode d'emploi

Manual de instrucciones

SRS-DZ 1 1

http://www.sony.net/

© 2005 Sony Corporation Printed in Malaysia

Printed on 100 % recycled paper using VOC

(Volatile Organic CompoundHree vegetable oil based ink.

Package Contents

Subwoofer with wired controller (1)

Satellite speaker (2) Stand (2)

Satellite speaker Stand

Reverse the stand to
change the speaker
angle.

Hollow wall anchor
(to 4 mm, not supplied)

Note

Note
Do not hang anything on the

PC, CD or MD
Walkman, etc.

_

Front speaker (Left)

Subwoofer

Controller

Front speaker (Right)

- POWER

- VOLUME

- PHONES

Controller

VOLUME: Controls total volume level.
BASS: Adjusts bass level (Subwoofer).

PHONES: Connect the headphones for personal listening.

Before operating the unit, please read this manual
thoroughly and retain it for future reference.

To prevent fire or shock hazard, do not expose the
unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.

To prevent fire, do not cover the ventilation of the
apparatus with news papers, table-cloths, curtains, etc.
Do not place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.

Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.

CAUTIO N

You are cautioned that any changes or modification not
expressly approved in this manual could void your
authority to operate this equipment.

NOTICE FOR THE CUSTOMERS IN THE USA

No user seiyrcrant PA)" s Mini

This symbol is intended to alert the user to
the presence of uriliisulated "dangerous

On operation

Do not drive the speaker system with a continuous
wattage exceeding the maximum input power of the
system.

Before connecting, turn off the speaker system, the
PC and audio component to avoid damaging the
speaker system.

The volume level should not be turned up to the
point of distortion.

Although this system is magnetically shielded, do not
leave recorded tapes, watches, personal credit cards
or floppy disks using magnetic coding in front of the
system for an extended period of time.

If the TV picture or monitor display is
magnetically distorted

Although this system is magnetically shielded, there may
be cases that the picture on some TV sets/personal
computers may become magnetically distorted. In such a
case, turn off the power of the TV set /personal computer
once, and after 15 to 30 minutes turn it on again. In the
case of a personal computer, take appropriate measures,
such as data storage, before turning it off.

When there seems to be no improvement, locate the
system farther away from the TV set /personal
computer. Furthermore, be sure not to place objects in
which magnets are attached or used near the TV set /
personal computer, such as audio racks, TV stands, toys
etc. These may cause magnetic distortion to the picture
due to their interaction with the system.

On placement

- Do not set the speakers in an inclined position.

. Do not leave the system in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust, moisture, rain or mechanical shock.
Do not install the satellite speaker anywhere other
than on a wall.

Do not hang anything on the satellite speaker.

Installing the satellite speakers
(See fig. I)

The satellite speaker can be used either placed on a desk
or attached to a wall.

When you use the satellite speaker on a desk
(See fig. --®)

By attaching the stand to the satellite speaker, it can be
placed on a desk.

1 Slide the stand into the slot at the
bottom of the satellite speaker.

The stand allows you to adjust the satellite
speaker to the desired angle.

2 Ensure the stands are locked.
Push the stand into the slot until a click sound is
heard.

Note

Do not put your finger into the slot of the satellite
speaker when you lock the stand. It may cause an
injury tO your finger.

When you use the satellite speaker attached
to a wall (See fig. .)

The satellite speaker can be attached to a wall. Follow
the Notes (below) to install safely. Improper installation
may result in the speaker falling and causing bodily
injury or damage to the speaker or other object.

1 Secure the hollow wall anchor in the wall
- refer to the illustration.

Notes

P Confirm wall thickness is sufficient. A
minimum thickness of 9.5 mm is recommended
for plasterboard.

Use the specified clamp (hollow wall anchor,
not supplied) when attaching to plasterboard.
Refer to the supplied operating instructions
using a hollow wall anchor.

Use wall anchors of at least 20 kg hanging
capacity.

Refer to the instruction supplied with hollow
wall anchor.

Requires o 4 mm hollow wall anchor.

Set up the head Of a hollow wall anchor 5 mm
from the wall.

Apply a bond (anaerobic threadlocking
material) to the hollow wall anchor to prevent
the screw loosening.

2 Attach the satellite speaker to the wall.
Insert the wall anchor in the anchor hole of the
satellite speaker.

Notes

P Detach the stand from the satellite speaker
before attaching to the wall.

- Ensure that the satellite speaker is securely
attached to the wall before use.

Hooking up the system
(See fig. El)

1 Connect the satellite speakers to the
subwoofer.

Confirm the location of the satellite speakers, and
then connect to their respective jacks.

2 Connect the controller to the source
eq ui pment.
- PC. etc.:
Connect the controller and the LlNE OUT or
headphones jack of a PC, etc. with the connecting
cord (connected with the controller). For details,
refer to the operating instructions of the PC.
- CD/MD Walkman, etc.:
Connect the INPUT 2 jack of the controller and the
LINE OUT or headphones jack of a CD/ MD

Using the headphones]
earphones

Connect the headphones/ earphones to the PHONES
jack on the controller.

Note
Turn off the MECA BASS or BASS BOOST (Walkman,
etc.) function as it may cause audible distortion.

Troubleshooting

Should you encounter a problem with your speaker
system, check the following list and take the indicated
measures. lf the problem persists, consult your nearest
Sony dealer.

There is no sound from the speaker system.

I Make sure all the connections have been correctly
made.

Make sure the VOLUME dial and the each speakers
volume dial on the controller have been turned up
properly.

Make sure the connected component has been turned
up properly.

Check if the headphones are connected. If they are,
disconnect them.

The sound is distorted.

I Turn down the volume level on the connected
component. Or, if the connected component has a
BASS BOOST function, set it to off.

- Rotate BASS on this unit to reduce the bass volume.

- Turn VOLUME on this unit down to reduce the
volume.

There is hum or noise in the speaker output.

- Make sure all the connections have been correctly
made.

- Make sure none of the audio components are
positioned too close to the TV set.

The sound has suddenly stopped.

Make sure all the connections have been correctly

made.

The brightness of the POWER indicator is

u nstabl e.

The brightness of the POWER indicator may become

unstable when the Volume is turned up. This is not a

malfunction.

Spectftcations

Speaker section
Satellite speaker

Speaker system Full range, magnetically shielded

Speaker units 5.7 cm, cone type

Enclosure type Closed type

lmpedance 4o

Cord length 2m

5 ubwoofer

Speaker system Woofer

Speaker units 12 on, cone type

Enclosure type Bass reflex

lmpedance x o

Amplifier section

Rated output 5 w (10% T H D,, 1 kHz, 4 9)
(Satellite speaker)
25 W (10% T.l-l.D., 100 Hz, 8 n)
(Subwooler)

liiput Connecting cord with stereo mini
plug (2m) x 1
Stereo mini jack x 1 (INPUT 2)

Input impedance 4.7 kn (at 1 kHz)

Output Stereo mini jack x 1 (PHONES)

Ge n eral

Dimensions (w/h/d) Approx. 50 x 140 x 99 mm
(2 x 5 5/3 x 4 in.) (Controller)
Approx. 98 x 124 x 34 mm
(3 7/i x 5 x 3 3/5 in.) (Satellite speaker,
on a desk)
Approx. 93 x 98 x 33 mm
(3 7/i x 3 7/5 x 3 3/5 in.) (Satellite
speaker, attached to a wall)
Approx. 163 x 267 x 301 mm
(o v; x it) s/ix 11 mm ) (Subwoofer)
Mass Approx. 134 g (5 oz.) (Controller)
Approx. 294 g (10 oz.)
(Satellite speaker)
Approx. 4.2 kg (9 lb. 4 oz.)
(Subwooter)
Cord length 2m (Controller to subwoofer)
2 m (Power cord)
Power consumptions 18 w

Optional accessories
Connecting cord RK-Gl36, RKCtss
Plug adaptor PC~236MS

Tape Cassette Player/Recorder/CD Player/Mini Disc
DAT/Radlo/Head Phone/Speaker/IVIlC/Personals

LIMITED WARRANTY

Sony Electronics Inc. ("Sony") warrants this Product (including any accessories) against defects in material or
workmanship as follows:

Portable Audio

1. LABOR: For a period cf so days from the date of purchase, ifthis Product is determined to be defective.
Scny will repair or replace the Product, at its option, at no charge, or pay the labor charges to any Scny authOr
rized service facility. After the Warranty Pcricd, you must pay for all labor charges.

2. PARTS: In addition, Sony will supply, at no charge, new or rebuilt replacements in exchange fordefectivc
parts for a period of one (1) year. After 90 days from the date of purchase, Iaborfor removal and installation is
available from Sony authorized service facilities or a Sony Service Center at your expense.

First, be sure to a ly a bond . voltage" within the product's enclosure , Walkman, em The conned, mm E or s jjed . . , . . , . . . . . . . . . .
(anaerobic threadrlscking material) satellite speaker. that may be of sufficient magnitude to On cleaning with this system. 3 PP Design and specifications are subject to change Without thgpataii:w:rrraarictlyase:ricaegfztri:i:1uasrt:keatlhgelrlzgugft,2:31:31;tr::r:otiauct:::iizgieridtggenpalstrizgtgirniits original
to the hollow wall anchor to constitute a risk of electric shock to persons. Do not use alcohol, benzene, or thinner to clean the N t 0 59- P 9 9 P 9 9 9 q 9 P r Y H / Y-
t th 1 - _ cabinet. 0 E . . . . . . . . .
preven e screw ooscning This symbol Lg intended to alert the user to Tum on Pith of the connected equipment to lTentnsswarranty does not cover customer instruction, installation, set up adjustments or signal reception prob
the presence of important operating and lf you have any questions or problems concerning your listen to 5 sound-
maintemms (servicing) instructions in the Speak system, Please consult Your nearest Sony This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negli'r
95 mm or more literature accompanying the appliance. dealer. 3 ("9 the subwoofer t° the W3 gence, commercial use, or modification of, or to any part of the Product, including the antenna. This warranty
outlet. '5: does not cover damage due to improper operation or maintenance, connection to improper voltage supply, or
4 = attempted repair by anyone ctherthan a facility authorized by Sony to service the Product. This warranty does
- Position the 5 eakers. See fi _ c not cover Products sold AS IS orWlTH ALL FAULTS, cr consumables (such as fuses or batteries). This warranty
Precautions P 9 " i.,..~uni,n.uuneisees.
On safety Proof of purchase in the form oi a bill of sale or receipted invoice which is evidence that the unit is within the
The nameplate indicating operating voltage, power Warranty period must be presented to obtain warranty service.
consum tion, etc., is located on IE rear exterior. ' ' -
B . Befogoperagng the system] be sure that (he LIStenIng to the sound (See flg- E) This warranty is invalid ifthe factory applied serial number has been altered or removed from the Product.
femmlg Image of the 513mm '5 dem'cal mm W Fm" mm down 9 31? .0 9 mom- The, REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTV IS THE EXCLUSIVE REMEDY OF THE
Satellite speaker " Y0 C PM PP 3" Volume Should be 59* 0 m'mmum before You PERI CONSUMER. SONY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
to LINE OUT or (rear) where pmdmd 0pm g voltage Playing the Programme 50mm BREACH OF ANY EXPRESS OR lMPLlED WARRANTY ON THIS PRODUCT EXCEPT TO THE EXTENT PROHIB-
headphones jack - , ITED BY APPLICABLE LAW, ANY lMPLlED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICU-
(stereo minijack) W 1 Set the POWER sWItch to ON on the LAR PURPoSE ON THIS PRODUCT ls LlMITED lN DURATION To THE DURATION OF THIS WARRANTY.
European countries 220 - 231) V AC, 51) Hz controller.
. , =13- .- The POWER indicator 1, MS u Some states do riotallowthe exclusion crlimitation ofincidental crconsequential damages, orallow limitations
J 0 mm 12 V Act 6 Hz 3 P' on how long an implied warranty lasts, sothe above limitations or exclusions may not applyto you. In addition,
CD/MD Walkman*, etc. ' 220 - 230 V AC 50 HZ 2 T th d . d . t if you enter into a service Contract with the Sony Pannership within so days ofthe date of sale, the limitation on
urn °" e "9 equ'lme" how long an implied warranty lasts does not apply to you. This warranty gives you specific legal rights, and you

to INPUT 2
jack

The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet, even if the urtit itself has been turned off. Note

Unplug the system from the wall outlet if it is not to Do not turn on both connected equipments as it
be used for an extended period of time. To disconnect may cause double sound.

connected to the controller. may have other rights which vary from state to state.

Connecting cord

(not 5Upplied) Foryourconvenience, Sony Electronics Inc. has established telephone numbers forfrequently asked questions:

To locate the servicer or dealer nearest you, or for service assistance or resolution of a service problem, or for
product information or operation, Call:

- the cord, pull the cord by grasping the plug. Never
Connecting C?"d 111119 cord 5e, 3 Adjust the VOLUME control on the
(connected wtth controller) Controller (rear) p . . . . . ' '
Subwoo fer (rear) . Should any liquid or solid object fall into the system, controller. 5" "5"9'1'3é;'£;"7;293""" cm"
. . unplug the system's power cord and have the system You can adjust the volume of the subwoofer and orvisitihe so; wet, site-
checked by qualified personnel before operating it each satellite speaker. www.sOriy.com '
any further. When connecting to the headphone output, also

The AC power cord should be changed only at a
qualified service shop.

For efficient heat dissipation, ensure there is sufficient
space to the rear of the subwoofer. Also, avoid
placing objects on the unit.

Do not insert your hand or any objects into the hole
of the subwoofer.

adjust the volume of the connected component.
After listening, set the POWER switch to OFF.
The POWER indicator goes off. j.goo.483.50Ny (7659,

cache-a
to LINE OUT or
headphonesjack

For an accessory or part not available from your authorized dealer, call:

l

to wall outlet
* WALKMAN is a registered
trademark of Sony Corporation to
represent Headphone Stereo products.

D 455714702

01US,SRSD211 1 6/1/05, 11 :07 AM

SONY SRS-D211 (GB/FR/ES) 2-593-588-110
