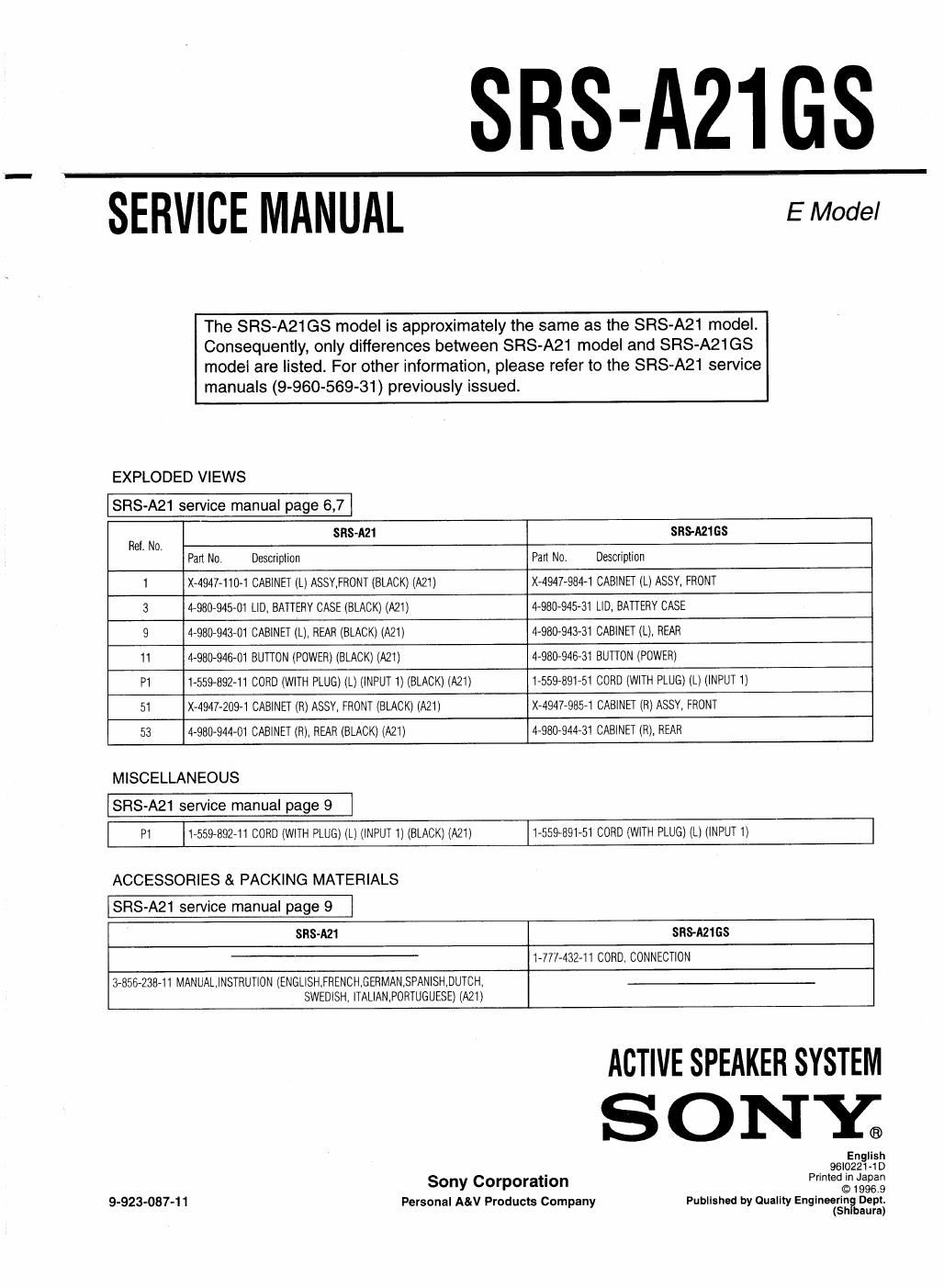

SRS-A21GS
SERVICE MANUAL
E Model
manuals (9-960-569-31) previously issued.
The SRS-A21 GS model is approximately the same as the SRS-A21 model.
Consequently, only differences between SRS-A21 model and SRS-A21GS
model are listed. For other information, please refer to the SFlS-A21 service
EXPLODED VIEWS
Rel, No, SHs-AZI 311842168
Part No, Description Part No. Description
1 X4947-110«1 CABINET (L) ASSY,FRONT (BLACK) (A21) X-4947-984-1 CABINET (L) ASSY, FRONT
3 4-980945-01 LID, BATTERY CASE (BLACK) (A21) 114380-945431 LID, BATTERY CASE
9 4-980-943-01 CABINET (L), REAR (BLACK) (A21) 4-980943-31 CABINET (L), REAR
11 4-980-946»01 BUTTON (POWER) (BLACK) (A21) 4»98(%946-31 BUTTON (POWER)
P1 1-559-892-11 CORD (WITH PLUG) (L) (lNPUT 1) (BLACK) (A21) 1-559-891-51 CORD (WITH PLUG) (L) (INPUT 1)
51 X-49472094 CABINET (R) ASSY, FRONT (BLACK) (A21) X-4947»985-1 CABINET (R) ASSY, FRONT
53 4»980-944-01 CABINET (R), REAR (BLACK) (A21) 4-980-944-31 CABINET (H), REAR
MISCELLANEOUS
| P1 )1-559892-11 CORD (WITH PLUG) (L) (INPUT 1) (BLACK) (A21) 1-559891-51 CORD (WITH PLUG) (L) (INPUT 1)
ACCESSORIES & PACKING MATERIALS
SRS-AZ1 SRS-A21GS
1-777-43241 CORD, CONNECTION
34356723841 MANUALINSTRUTION (ENGLISH,FRENCH,GERMAN,SPANISH,DUTCH,
SWEDISH, |TAL|AN,PORTUGUESE) (A21)
9-923-087-11
ACTIVE SPEAKER SYSTEM
SONY;
Sony Corporation
Personal A&V Products Company
English
96|0221-1 D
Printed in Japan
(9 1996.9
Published by Quality Englneerin Dept.
(Sh baura)
