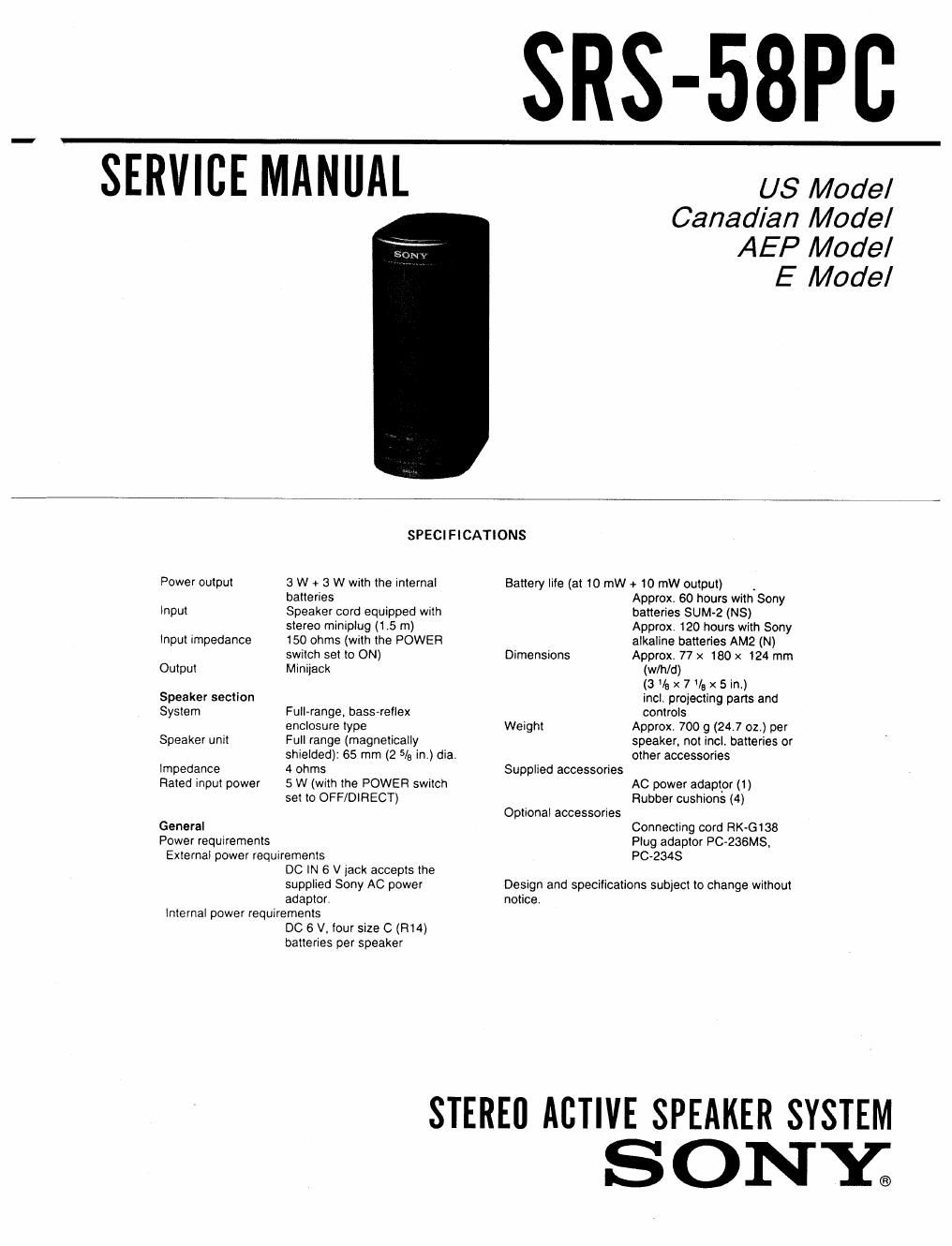

Page 1
SRS-58PC
SERVICE MANUAL
US Model
Canadian Model
AEP Model
E Model
Power output
Input
input impedance
Output
Speaker section
System
Speaker unit
impedance
Rated input power
General
Power requirements
SPECIFICATIONS
3 W + 3 W with the internal
batteries
Speaker cord equipped with
stereo miniplug (1.5 m)
150 ohms (with the POWER
switch set to ON)
Minijack
Full-range, bass-reflex
enclosure type
Full range (magnetically
shielded): 65 mm (2 5/3 in.) die.
4 ohms
5 W (with the POWER switch
set to OFF/DlRECT)
External power requirements
DC IN 6 V jack accepts the
supplied Sony AC power
adaptor.
Internal power requirements
DC 6 V, tour size C (R14)
batteries per speaker
STEREll ACTIVE SPEAKER SYSTEM
ON Y;
Battery life (at 10 mW + 10 mW output)
Dimensions
Weight
Supplied accessories
Optional accessories
Approx, 60 hours with Sony
batteries SUM~2 (NS)
Approx. 120 hours with Sony
alkaline batteries AM2 (N)
Approx. 77 x 180 x 124 mm
(w/h/d)
(3 lg x 7 we x 5 int)
incl, projecting parts and
controls
Approx 700 g (24.7 oz) per
speaker. not incl. batteries or
other accessories
AC power adaptor (1)
Rubber cushions (4)
Connecting cord RK-Glae
Plug adaptor PC-ZSSMS.
PC2348
Design and specifications subject to change without
notice.
