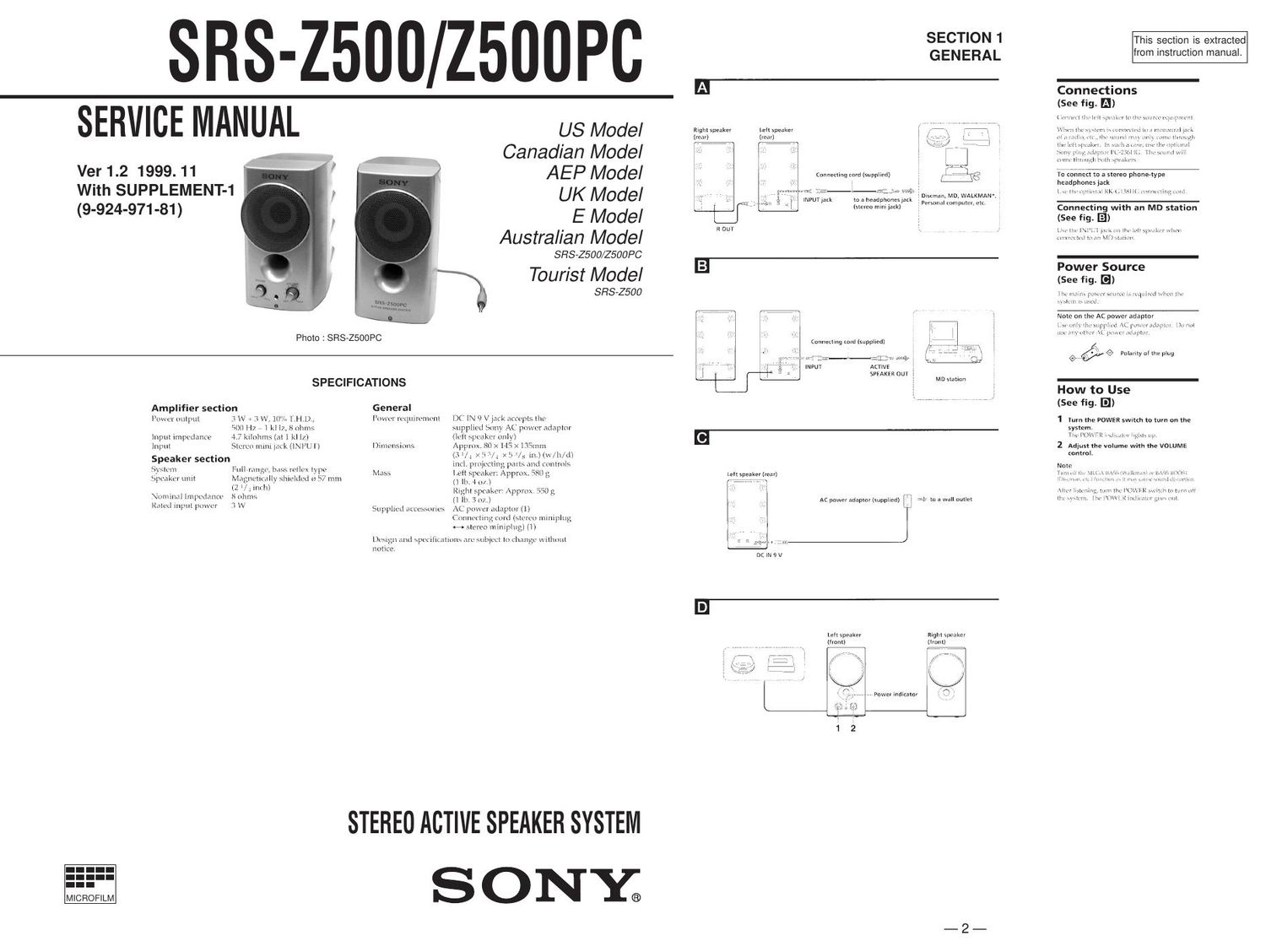

Sony srs 500 service manual
This is the 5 pages manual for sony srs 500 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony srs 500 service manual (Ocr-read)
Page 1
SECTION 2 DIAGRAMS 2-1. SCHEMATIC DIAGRAM Ñ 3 ÑÑ 4 Ñ SRS-Z500/Z500PC Note on Schematic Diagram: ¥ All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. ¥ All resistors are in W and 1/4 W or less unless otherwise specified. ¥ % : indicates tolerance. ¥C: panel designation. ¥U: B+ Line. 204GD ¥ Power voltage is dc 9 V and fed with regulated dc power supply from external power voltage jack. ¥ Voltages and waveforms are dc with respect to ground under no- signal (detuned) conditions. ¥ Voltages are taken with a VOM (Input impedance 10 MW). Voltage variations may be noted due to normal production toler- ances. ¥ Signal path. F: AUDIO
