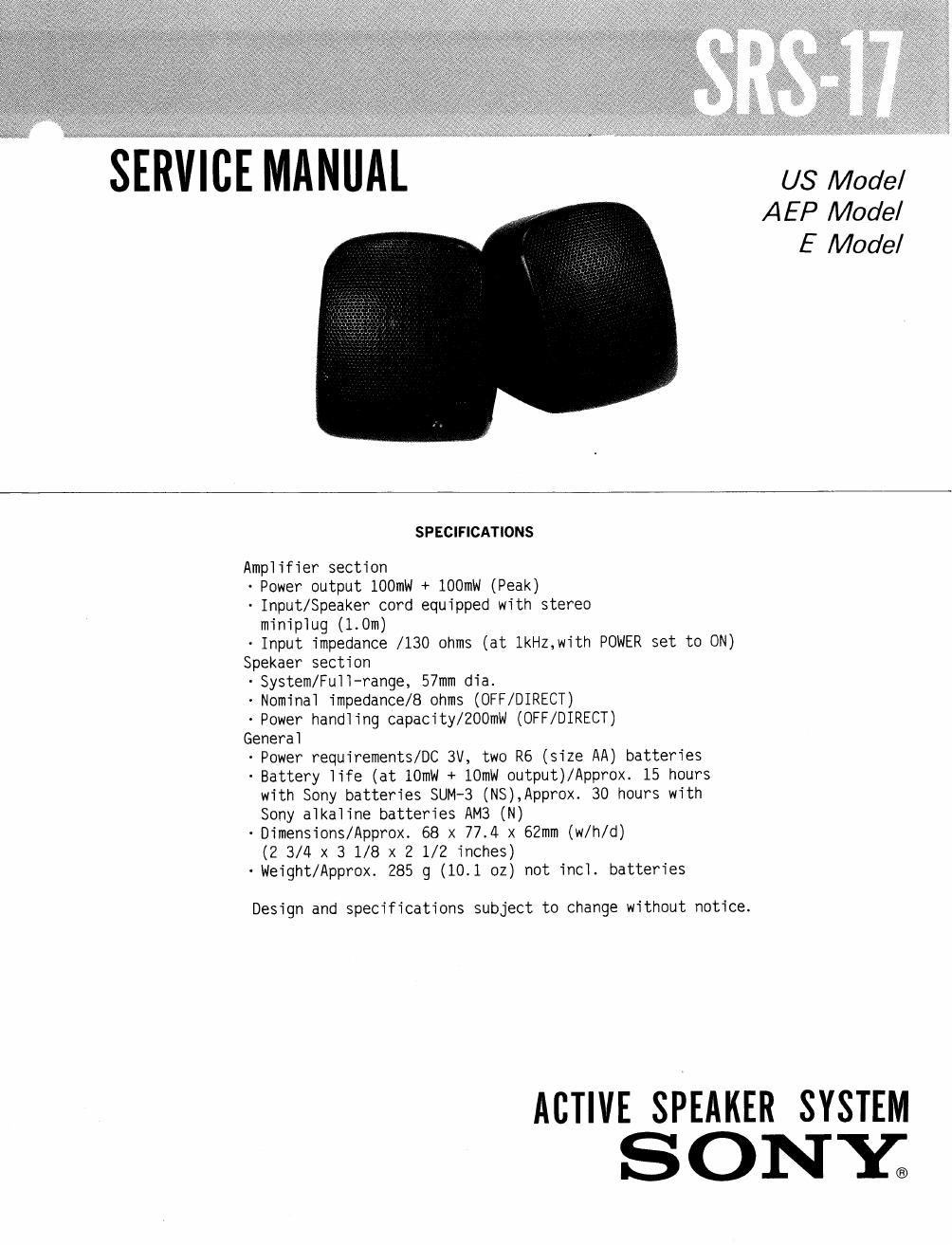

Page 1

3; am:

SERVICE MANUAL us Model
AEP Model
E Model

SPECIFICATIONS

Ampiifier section
' Power output lOOmW + lOOmW (Peak)
- Input/Speaker cord equipped with stereo
minipiug (1.0m)
~ Input impedance /l30 ohms (at lkHz,with POWER set to ON)
Spekaer section
- System/FuII-range, 57mm dia.
- NominaI impedance/8 ohms (OFF/DIRECT)
' Power handling capacity/ZOOmW (OFF/DIRECT)
Genera]

Power requirements/DC 3V, two R6 (size AA) batteries
- Battery Iife (at 10mw + lOmW output)/Approx. 15 hours
with Sony batteries SUM-3 (NS),Approx. 30 hours with

Sony aikaiine batteries AM3 (N)
- Dimensions/Approx. 68 x 77.4 x 62mm (w/h/d)
(2 3/4 x 3 1/8 x 2 1/2 inches)
- Weight/Approx. 285 g (10.1 02) not inc]. batteries

Design and specifications subject to change without notice.

ACTIVE SPEAKER SYSTEM
SONY;

Page 2

SRS-17

PRINTED WIRING BOARD

1 | 2 | 3 | 4 I 5 1 6
SP2
A SPDIXER a
[AMPLIFIER BOARD] (93%)
3, .
B
C
W BAJTEHRV
snz: AA
[IEC uzzgcwesugvou R6)
D
~{II
_ Note:

a
0 Through hole.
01-.

Pattern of the rear side.

ELECTRICAL PARTS LIST

NOTE:

0 Due to standardization, replacements in the parts
list may be dlfferent from the parts specified in
the diagrams or the components used on the set.

0 If there are two or more same circuits in a set
such as a stereophonic machine, only typical
circuit parts may be indicated and capacitors and
resistors in other same circuits may be omitted.

RelNo Part No. DescriElion
901 1-634-288-11 PC BOARD. AMPLIFIER
CAPACITOR
CI 1-153>059-00 CERAMIC CHIP 0.0IMF
C2 1-126-209-11 ELECT CHIP IOOMF
C3 1-126-207-11 ELECT CHIP 33MF
C4 1-163-075*00 CERAMIC CHIP 0.047MF
C5 1-163181-00 CERAMIC CHIP IOOPF
CB 1126-501-11 ELECT CHIP 2.2MF
C7 1-126-603-11 ELECT CHIP 4.7MF
C8 1-126-209-11 ELECT CHIP IOOMF
C9 1-126-246-11 ELECT CHIP 220MF
010 1-163-059-00 CERAMIC CHIP 0.01MF
CH 1-163<059>00 CERAMIC CHIP 0.01MF
012 l-lfi3-075~00 CERAMIC CHIP 0.047MF
C13 1-163181-00 CERAMIC CHIP IOOPF
CM 1-126-601-11 ELECT CHIP 2.2MF
015 1-126-603-11 ELECT CHIP 4.7MF

10%
20%
20%

5%

20%
20%

20%
10%

10%
5%

20%
20%

o o- : parts extracted from the component side.
: parts extracted from the conductor side.

CAPACITORS:

MF: uF, PF: uuF.
RESISTORS
o All resistors are in ohms.
o F: nonilammable

RetNo Part No. Descrigtion

C16 1-12624641 ELECT CHIP

m 8-719-812-26 DIODE TLR226
50v lCl 3-759-910-71 IC aAszosAF-n
4V
4V P1 1-557-633-41 CORD (WITH PLUG)
50V
50V RESISTOR
50V Rl l-216~176-00 METAL GLAZE 120
35V R2 1-216-144-00 METAL GLAZE 5.6
4V R3 1-216-1'52-00 METAL GLAZE 560
AV R4 1-216-176-00 METAL GLAZE 120
50V R5 1216-144-00 METAL GLAZE 5.6
50V R6 1-216-192-00 METAL GLAZE 560
50V R7 1-216-186-00 METAL GLAZE 330
50V
50V SI 1-554-295-00 SWITCH, SLIDE
35V

SP1 1-544-282-11 SPEAKER

SP2 1-544-282'11 SPEAKER

ZZOMF

5%
5%
5%
5%

5%
5%

20%4V

l/8W
I/BW
1/8W
I/BW
1/8W

1/ 8W
1/ SW
