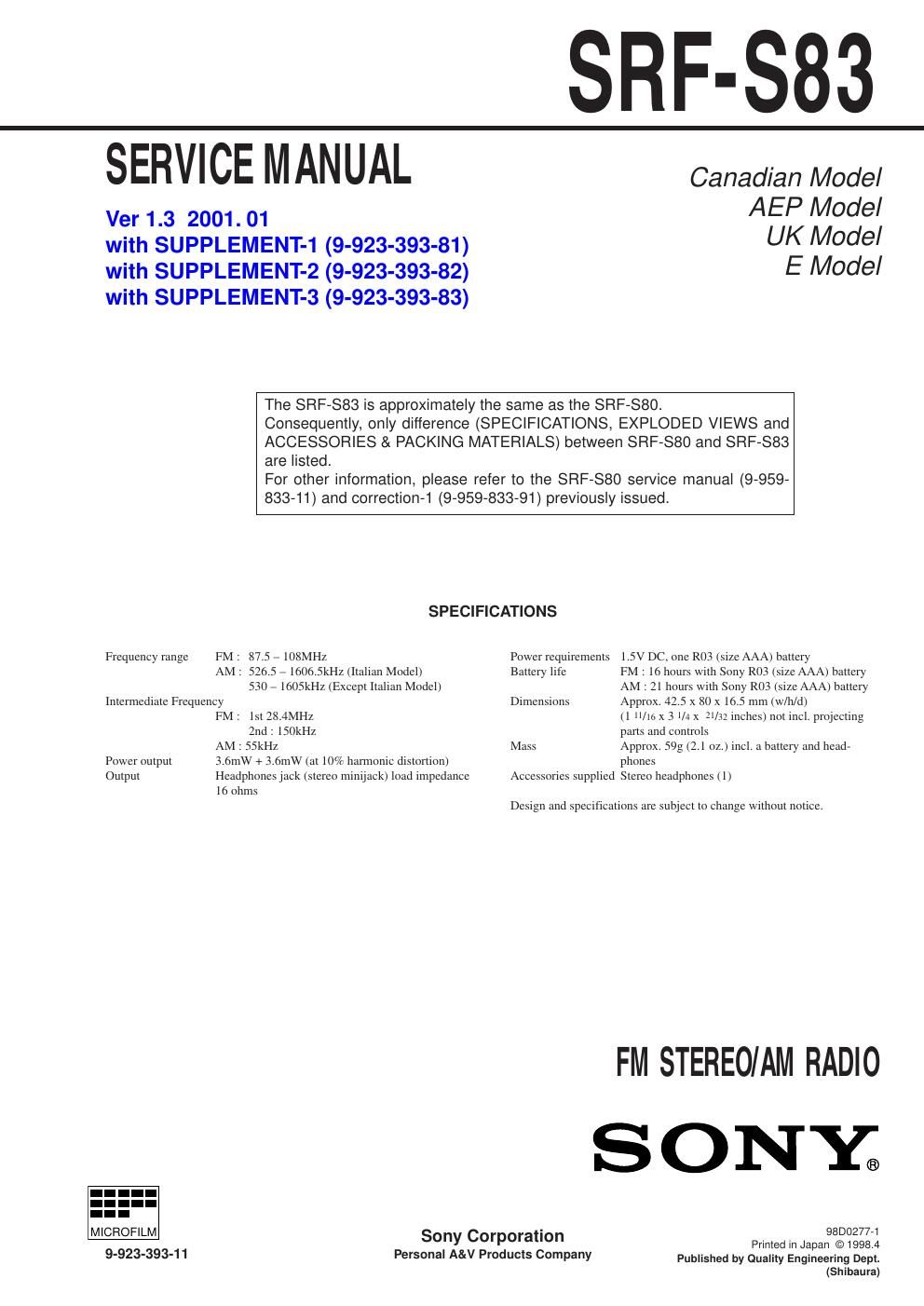

Sony srf s 83 service manual
This is the 6 pages manual for sony srf s 83 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony srf s 83 service manual (Ocr-read)
Page 1
Ð 2 Ð SECTION 5 EXPLODED VIEW NOTE : ¥ The mechanical parts with no reference number in the exploded views are not supplied.¥ Items marked Ò * Óare not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 3-024-346-01 PANEL (GOLD) 1 3-024-346-11 PANEL (BLUE) 2 3-024-347-11 SCALE, DIAL (EXCEPT Italian) 2 3-024-347-21 SCALE, DIAL (Italian) 3 3-024-343-01 CABINET (FRONT) 4 3-919-918-01 GEAR (MIDWAY) 5 3-919-915-01 KNOB (TUNING) 6 3-018-582-01 SCREW (2) 7 3-919-919-01 GEAR (TUNING CAPACITOR) 8 3-919-914-01 POINTER 9 3-880-990-00 SCREW (1.7X3),FLAT,(+) SPECIAL 10 3-919-920-01 ADAPTOR* 11 A-3679-652-A MAIN BOARD, COMPLETE (Italian) * 11 A-3679-653-A MAIN BOARD, COMPLETE (EXCEPT Italian) 12 3-024-349-01 KNOB (BAND) 13 3-920-078-01 TERMINAL (-), BATTERY 14 3-919-921-01 TERMINAL (+), BATTERY 15 3-024-344-01 CABINET (REAR) (Canadian) 15 3-024-344-11 CABINET (REAR) (EXCEPT Canadian) 16 3-024-348-01 KNOB (POWER) 17 3-318-203-31 SCREW (B1.7X8), TAPPING 18 3-024-345-01 LID, BATTERY CASE 19 3-918-543-01 CLIP r ACCESSORIES & PACKING MATERIALS ACCESSORIES & PACKING MATERIALS ******************************** 1-505-267-11 HEADPHONE (TRH-11) 3-862-530-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, DUTCH, ITALIAN, PORTUGUESE, CHINESE) Ref. No. Part No. Description Remark¥ -XX, -X mean standardized parts, so they may have some difference from the original one. ¥ Color indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ¥¥¥ (RED) Parts color Cabinet's color Page 12 Page 10
Page 2
1998. 11 SRF-S83 SERVICE MANUAL SUPPLEMENT - 1 File this Supplement with the Service Manual. Subject : Addition of Tourist model (ENG-98008) Canadian ModelAEP ModelUK Model E Model T our ist Model 9-923-393-81 Sony Corporation Personal A&V Products Company 98K0282-1 Printed in Japan © 1998.11 Published by Quality Engineering Dept. (Shibaura) r DIFFERENCE PARTS LIST Ref. No. Part No. Description Remark Part No. Description Remark Page E model Tourist model 2 3-024-347-11 SCALE, DIAL (EXCEPT Italian) * 11 A-3679-653-A MAIN BOARD, COMPLETE (EXCEPT Italian) 2 ACCESSORIES & PACKING MATERIALS ******************************** 3-862-530-11 MANUAL INSTRUCTION (ENGLISH, FRENCH, GERMAN,DUTCH,ITALIAN,PORTUGUESE, CHINESE ) 3-024-347-21 SCALE, DIAL (Italian,Tourist) *A-3679-649-A MAIN BOARD, COMPLETE (Tourist) ACCESSORIES & PACKING MATERIALS ******************************* 3-865-209-11 MANUAL INSTRUCTION (JAPANESE, ENGLISH, KOREAN,CHINESE) Tourist model is almost the same as E model. The difference parts from E model are described in this service manual. Please refer to SRF-S83 service manual (9-923-393-11) previously issued for other information. ¥ Items marked Ò*Ó are not stocked since they are seldom required fo\ r routine service. Some delay should be anticipated when ordering these items.
