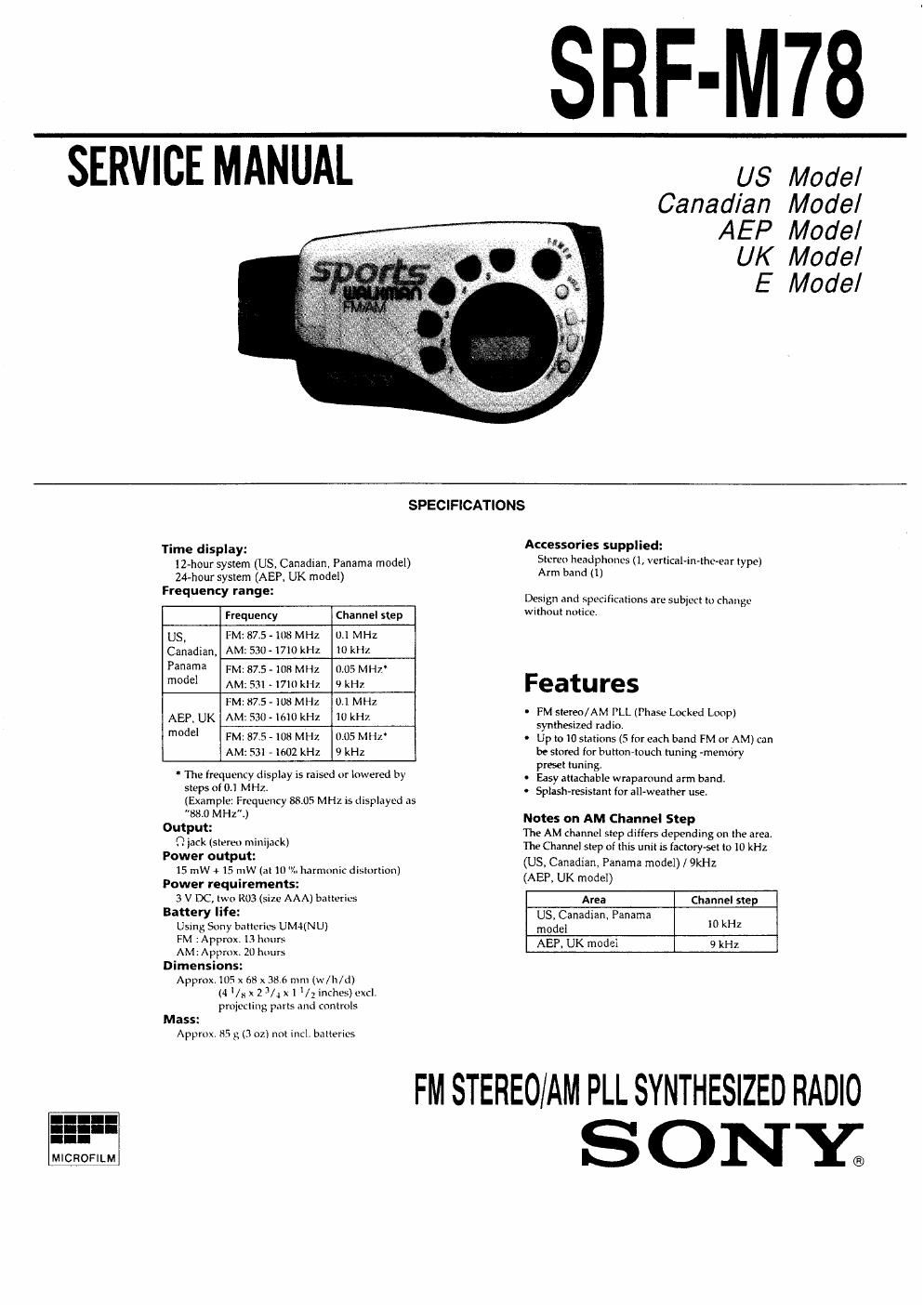

SRF-M78

SERVICE MANUAL

U8 Model
Canadian Model
AEP Model

UK Model

E Model

£0201:le

SPECIFICATIONS

Time display:
12-hour system (US. Canadian, Panama model)
24»hour system (AEP, UK model)
Frequency range:

Frequency Channel step
US, FM: 37.5 - ins MHz 0.1 MHz
Canadian, AM: 530- 1710 kHz in km
Panama FM: 87.5 - 108 MHz 0.05 MH7.
0! AM: 531 . 17m kHz 9 kHz

F ans-mama 0.1MHz
AEP, UK AM: 530 ~ 1610 kHz 10 kHz
"W361 FM: 87.5 - ma MHz 0.05 MHz
AM:53] 4602 kHz 9kHz

The frequency display is raised or lowered by
steps cl 0.] MHz.
(Example: Frequency 8805 MHz is displayed as
"33.0 MHz)
Output:
0 jack (stereo m iiack)
Power output:
15 mW +15 mW (at 10% harmonic distortion)
Power requirements:
3 v DC, two R03 (size AAA) batteries
Battery life:
Using Sony batteries UM-i(NU)
FM : Approx. 13 hours
AM ; Approx. 20 hours
Dimensions:
Approx, 105 x 68 x 38.6 mm (w/Ii/d)
(4 '/,,- x 2 3/4 x1/2inchus)excl,
projecting parts and controls
Mass:
Approx. 85 g (3 02) not incl. baIlerics

Accessories supplied:
Stereo headphones (1, \'ertical-in»the-ear type)
Arm band (1)

Design and specifications are subject to changu
without notice.

Features

' FM stereo/AM PLL (Phase Locked Loop)
synthesized radial

0 Up to 10 stations (5 for each band FM or AM) can
be stored for button-touch tuning -men\dry
preset tuning.

- Easy attachable wraparound arm band.

' Splash-resistant for all-weather use.

Notes on AM Channel Step

The AM channel step differs depending on the area.
The Channel step of this unit is factory-set to 10 kHz
(US, Canadian, Panama model) l 9kHz

(AEP, UK model)

Area Channel step
US, Canadian. Panama
model 10 kHz
AEP. UK model 9 kHz

FM STEREO/AM PLL SYNTHESIZED RADIO

ONY;
