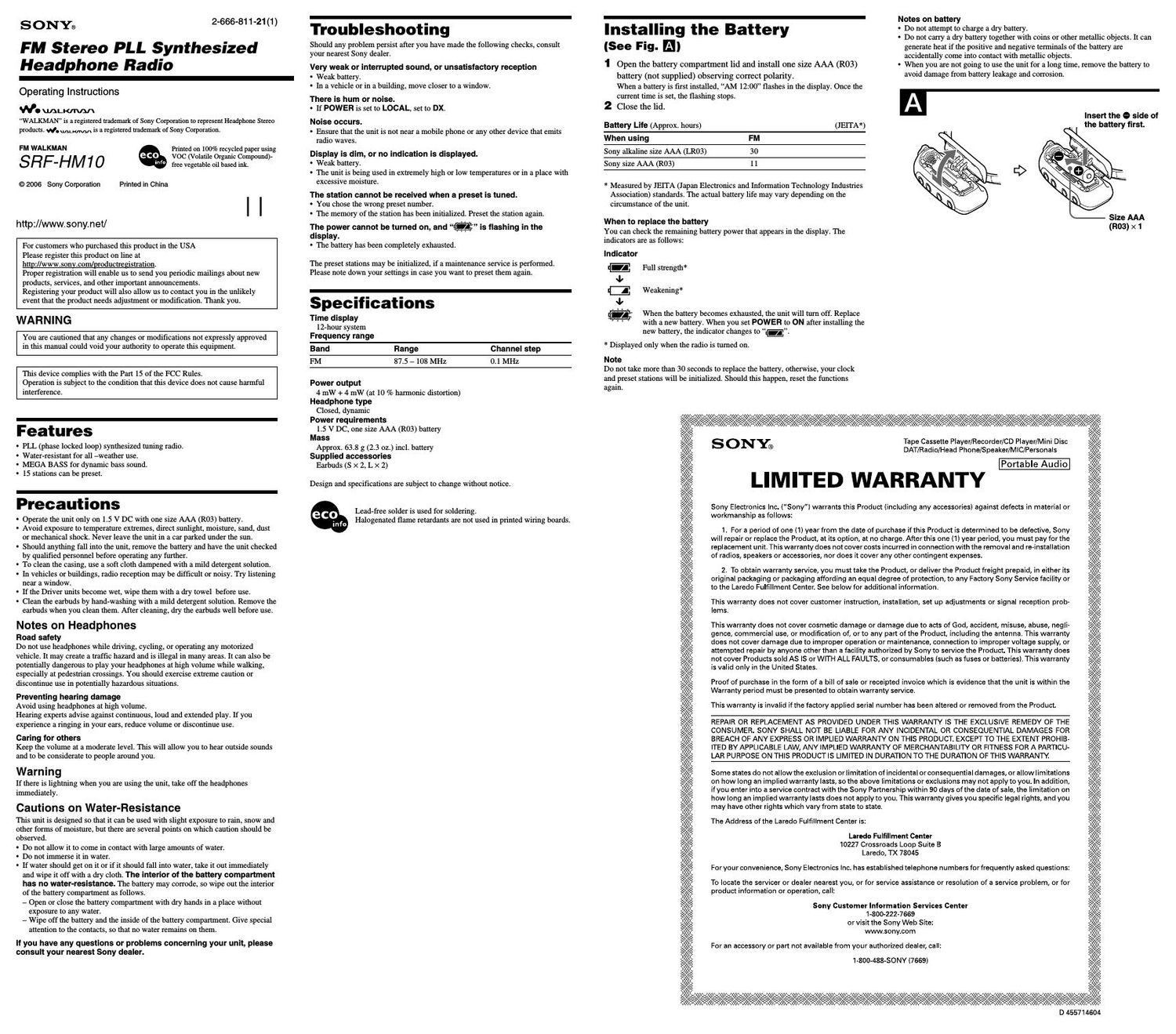

Page 1

SONYo 2-666-81 1-21 (1)

FM Stereo PLL Synthesized
Headphone Radio

Operating Instructions
WI \iALK/MA

WALKMAN is a registered trademark of Sony Corporation to represent Headphone Stereo
products. w. harm is a registered trademark of Sony Corporation.

FM WALKMAN Printed on 100% recycled paper using
voc (Volatile Organic Compound)-

SRF HM 1 0 trce vegetable oil based ink.

© 2006 Sony Corporation Printed in China

http://www.sony.net/

For customers who purchased this product in the USA

Please register this product on line at

http /www ony com/productregistrau n.

Proper registration will enable us to send you periodic mailings about new
products, services, and other impomnt announcements.

Registering your product will also allow us to contact you in the unlikely
event that the product needs adjustment or modification. Thank you.

WARNING

You are cautioned that any changes or modifications not expressly approved
in this manual could void your authority to operate this equipment.

Troubleshooting

Should any problem persist after you have made the following checks, consult
your nearest Sony dealer.

Very weak or interrupted sound, or unsatisfactory reception
- Weak battery.
- In a Vehicle or in a building. move closer to a window.

There is hum or noise.
- If POWER is set to LOCAL. set to DX.

Noise occurs.
- Ensure that the unit is not near a mobile phone or any other device that emits
radio waves.

Display ls dim, or no indication is displayed.

- Weak battery.

- The unit is being used in extremely high or low temperatures or in a place with
excessive moisture.

The station cannot be received when a preset Is tuned.
- You chose the wrong preset number.
- The memory of the station has been initialized. Preset the station again.

The power cannot be turned on, and Wm is flashing in the
display.
- The battery has been completely exhausted.

The preset stations may be initialized, if a maintenance service is performed.
Please note down your settings in case you want to preset them again.

Spec Icatlons
Time display

erhour system
Frequency range

Band Range Channel step

FM 87.5 r 108 MHZ 0.1 MHz

This devtce complies with the Pan 15 of the FCC Rules.
Operation is subject to the condition that this device does not cause harmful
interference.

Features

- PLL (phase locked loop) synthesized tuning radio.
- Waterrresistant for all rweather use.

' MEGA BASS for dynamic bass sound.

- 15 stations can be preset.

Precautions

Operate the unit only on 1.5 v DC with one size AAA (R03) battery.

Avoid exposure to temperature extremes, direct sunlight, moisture, sand, dust
or mechanical Shock. Never leave the unit in a car parked under the sun.
Should anything fall into the unit, remove the battery and have the unit checked
by qualified personnel betore operating any further.

To clean the casing, use a soft cloth dampened with a mild detergent solution.
In vehicles or buildings, radio reception may be diftlcult or noisy. Try listening
near a window.

If the Driver units become wet, wipe them with a dry towel before use.

Clean the earbuds by handrwashing with a inlld detergent solution. Remove the
earbuds when you clean them. After cleaning, dry the earbuds well before use.

Notes on Headphones

Road safety

Do not use headphones while driving, cycling, or operating any motorized
vehicle. It may create a traffic hazard and is illegal in many areas. It can also be
potentially dangerous to play your headphones at high volume while walking,
especially at pedestrian crossings. You should exercise extreme caution or
discontinue use in potentially hazardous situations.

Preventing hearing damage

Avoid using headphones at high volume.

Hearing experts advise against continuous, loud and extended play. If you
experience a ringing in your ears, reduce volume or discontinue use.

Caring for others
Keep the Volume at a moderate level. This will allow you to hear outside sounds
and to be considerate to people around you.

Wa rn in 9
it there is lightning when you are using the unit, take off the headphones
immediately.

Cautions on Water-Resistance

This unit is designed so that it can be used with slight exposure to rain, snow and

other forms of moisture, but there are several poirtts on which caution should be

observed.

- Do not allow it to come in contact with large amounts of water.

' Do not immerse it in water.

- If water should get on it or if it should fall into water, take it out immediately
and wipe it off with a dry cloth. The interior of the battery compartment
has no water-resistance. The battery may corrode, so wipe out the interior
of the battery compartment as follows.

, Open or close the battery compartment with dry hands in a place without
exposure to any water.

7 Wipe off the battery and the inside of the battery compartment. Give special
attention to the conmcts, so that no water remains on them.

If you have any questions or problems concerning your unit, please
consult your nearest Sony dealer.

Power output

4 mw + 4 mw (at 10 % harmonic distortion)
Headphone type

Closed, dynamic
Power requirements

1.5 V DC, one size AAA (R03) battery
Mass

Approx. 63.8 g (2.3 oz.) incl. battery
Suppl ied accessories

Earbuds (s X 2, L X 2)

Design and specifications are subject to change without notice.

Leadrfree solder is used for soldering.

Halogenated flame retardants are not used irt printed wiring boards.

Insta ng the Battery
(See Fig. I)

1 Open the battery compartment lid and install one Size AAA (R03)
battery (not Supplied) observing correct polarity.
When a battery is first installed. AM 12:00" flashes in the display. Once the
current time is set, the flashing stops.

2 Close the lid.

Battery Life (Approx. hours) (JEITA*)
When using FM
Sony alkaline size AAA (LR03) 30
Sony size AAA (R03) ll

* Measured by J'EITA (Japan Electronics and information Technology Industries
Association) standards. The actual battery life may vary depending on the
circumstance of the unit.

When to replace the battery
You can check the remaining battery power that appears in the display. The
indicators are as follows:

Ind icator
Full strength*

When the battery becomes exhausted, the unit will turn off. Replace
with a new battery. When you set POWER to ON after installing the
new battery, the indicator changes to E.

4:
Jr

4E Weakeuing*
vb

* Displayed only when the radio is turned on.

Note

Do not take more than 30 seconds to replace the battery, otherwise, your clock
and preset stations will be initialized. Should this happen, reset the functions
again.

s

a. a}
«tw
a,

workmanship as follows:

g).

t.

o

g:

«agita-
" m %

LIMITED WARRANTY

Sony Electronics lnc. ISonv"l warrants this Product (including any accessoriesl against defects in material or

l. For a period of one Ill year from the date of purchase ifthis Product is determined to be defective, Sony
will repair or replace the Product, at its option, at no charge. After this one I1) year period, you must pay for the
replacement unit. This warranty does not cover costs Incurred in connection with the removal and re-installatiorl
of radios, speakers or accessories, nor does it cover any other contingent expenses.

2. To obtain warranty servlce, you must take the Product, or deliver the Product freight prepaid, in either its
original packaging or packaging affording an equal degree of protection,to any Factory Sony Service facility or
to the Laredo Fulfillment Center. See below for additional information.

Notes on battery

- Do not attempt to charge a dry battery.

- Do not carry a dry battery together with coins or other metallic objects. It can
generate heat if the positive and negative terminals of the battery are
accidentally come into contact with metallic objects.

- When you are not going to use the unit for a long time, remove the battery to
avoid damage from battery leakage and corrosion.

Insert the 6 side of
the battery first.

Size AAA
(n03) x 1

v93 ~ .32
:r.~;::,::.~:;:\

Tape Cassette PIayer/Recorder/CD Player/Mini Disc
DAT/Radlo/Head Phone/Speaker/IVIlC/Personals

Portable Audio

This warranty does not cover customer instruction, installation, set up adjustments or signal reception probe
Iems.

This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, neglir
gence, commercial use, or modification of, or to any part of the Product, including the antenna. This warranty
does not cover damage due to improper operation or maintenance, connection to improper voltage supply, or
attempted repair by anyone otherthan a facility authorized by Sony to service the Product. This warranty does
not cover Products sold AS IS or WITH ALL FAULTS, or consumables Isuch as fuses or batteriesl. This warranty
ls valid only in the United States.

Proof of purchase in the form of a bill of sale or receipted Invoice which is evidence that the unit is within the
Warranty period must be presented to obtain warranty servtce.

This warranty is invalid It the factory applied serial number has been altered or removed from the Product.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER. SONY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT EXCEPT TO THE EXTENT PROHIB-
ITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICUr
LAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY

Some states do not allowthe exclusion or limitation of Incidental or consequential damages, or allow limitations
on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. In addition,
ifyou enter into a service contract with the Sony Partnership within so days ofthe date ofsale,the limitation on
how long an implied warranty lasts does not apply to you. This warranty gives you specific legal rights, and you
may have other rights which vary from state to state.

The Address of the Laredo Fulfillment Center is:

Laredo Fulfillment Center
10227 Crossroads Loop Suite B
Laredo, TX 78045

For your convenience, Sony Electronics Inc. has established telephone numbers for frequently asked questions:

To locate the servicer or dealer nearest you, or for service assistance or resolution of a sen/ice problem, or for
product information or operation. call:

Sony Customer Information Services Center
1-800-222-7669
or visit the Sony Web Site:
www.sony.com

For an accessory or part not available from your authorized dealer, call:

1-800-488-SONY (7669i

D 4557 I 4604

Page 2

DAQCQD

TUNE - TUNE +*

Neckband

Driver unlt

MODE/ENTER VOL -
MEGA BASS!

* The TUNE + and VOL +
have a tactile dot.

Setting the Clock

The display will flash AM 12:00" when a battery is first inserted.
1 Set POWER to OFF to turn off the power.
2 Hold down MEGA BASS/CLOCK for

more than 2 seconds.
A beep sounds and the hour flashes in the display.

3 Press TUNE + or - until the correct hour appears in the display.
Each press changes the digit(s) by one.
When you keep the button pressed, the digit(s) change rapidly.

4 Press MEGA BASS/CLOCK.
A beep sounds and the minutes start to flash.
Repeat step 3 to set the minutes. After setting, press MEGA BASS/CLOCK
again. Two beeps sound, starts flashing, and the clock starts from 0
seconds.
if you press MODE/ENTER while setting. the clock, the clock setting will
be canceled.

\ l 1/
4' ttw't I't/
ILWJLH
l

Note
While setting the clock, you must perform each step within 65 seconds. or the
clock setting mode will be canceled.

Wearing the Headphone
Radio

1 Wear the neckband around the back of your head. (See Fig. El.)

2 Wear the headphones with the Driver unit marked 0 in your left
ear, and the Driver unit marked 0 in your right. (See Fig. --®)

3 Adjust the angle of the neckband to fit the headphones on your ears.
(See Fig. l-®)

How to install the earbuds correctly
(See Fig. E)

if the earbuds do not fit your ears correctly, lowebass sound may not be heard. To
enjoy better sound quality, adjust the earbuds position to sit on your ears
comfortably or push them into the inside of your ears so that they fit your ears
snugly. If the earbuds do not fit your ears, try ones of other size.

Playing the Radio

- Manual Tuning
1 Set POWER to ON (DX) to turn on the power.
2 If P is displayed, press MODEIENTER so that P" disappears.

tltL'

Pressing MODE/ENTER will switch over between manual tuning mode and
preset tuning mode.

3 Press TUNE + or - to select the desired frequency.
if you hold down TUNE + or -, the frequency changes rapidly.
When the frequency matches the broadcast frequency, the broadcast will be
received.

4 Adjust the volume using VOL + or -.

To turn off the radio, set POWER to OFF.

Improving the Reception

Set POWER to LOCAL if interference is prevalent and
reception is too strong. Under normal conditions, set it to DX.

Note
Lt POWER is set to LOCAL under normal conditions,
reception sensitivity will decrease.

Obtain Powerful Bass Sound

Press MEGA BASS/CLOCK.

M B" indication appears in the display when the MEGA BASS function IS on.
The MEGA BASS function intensifies the bass sound for richer quality audio
reproduction.

Presetting Your Favorite

Station
- Preset Tuning

You can preset up to 15 FM stations. You can also delete a preset station,
whether it is factoryeset or preset by yourself.

Presetting a Station

1 Follow steps 1 to 3 in Playing the Radio" and manually tune in to
the station you wish to preset.
2 Hold down MODE/ENTER until the preset number flashes.
A preset number without a preset station will flash.
When all the preset numbers are set to stations, the following occurs:
- initialized (factoryeset): 1" flashes and P" appears.
- After tuning in a preset station: The next preset number after the one last
preset flashes and P" appears.

Ltl'tl Q

Lt tJP :13

3 Press TUNE + or - to select the number you wish to preset, then
press MODE/ENTER.
When you select the preset number using TUNE + or -, P" appears if that
number has a preset station. If it has no preset station, only the number
flashes and "P" does not appear.
When you press MODE/ENTER. the selected preset number lights up in the
display.
Example: Display window when you assign FM 87.5 MHz to preset

number 2.

PL

To preset another station, repeat the above steps.

To change a preset station. assign a new station. The previous station will be
canceled.

To cancel the presettmg mode. set POWER to OFF.

Note
If you do not press TUNE + or -, or MODE/ENTER within 65 seconds, the
preset tuning mode will be canceled.

Tuning in to a Preset Station

1 Set POWER to ON (DX) to turn on the power.

2 Press MODE/ENTER so that P and preset number appear.
3 Press TUNE + or - to select the desired preset number.

4 Adjust the volume using VOL + or -.

To turn off the radio, set POWER to OFF.

Deleting a Preset Station

1 Follow steps 1 and 2 in Tuning in to a Preset Station".

2 Press TUNE + or - to select the preset number to be deleted.

3 Hold down MODE/ENTER for more than 4 seconds until ,P
(if 'L and the preset number flash.

\U U 'a (a? preset number to
_ J I e r -
eLU. L4: .3 . be deleted
r l | t .
4 While the letters and the preset number are flashing, press MODE]
ENTER.
The station set to the preset number Just before the deleted station will be
displayed.
To delete other stations, repeat steps 2 to 4.
If all the preset stations are deleted, P appears in the display.

To cancel the deleting mode, set POWER to OFF while P", at E L" and the
preset number are flashing.
