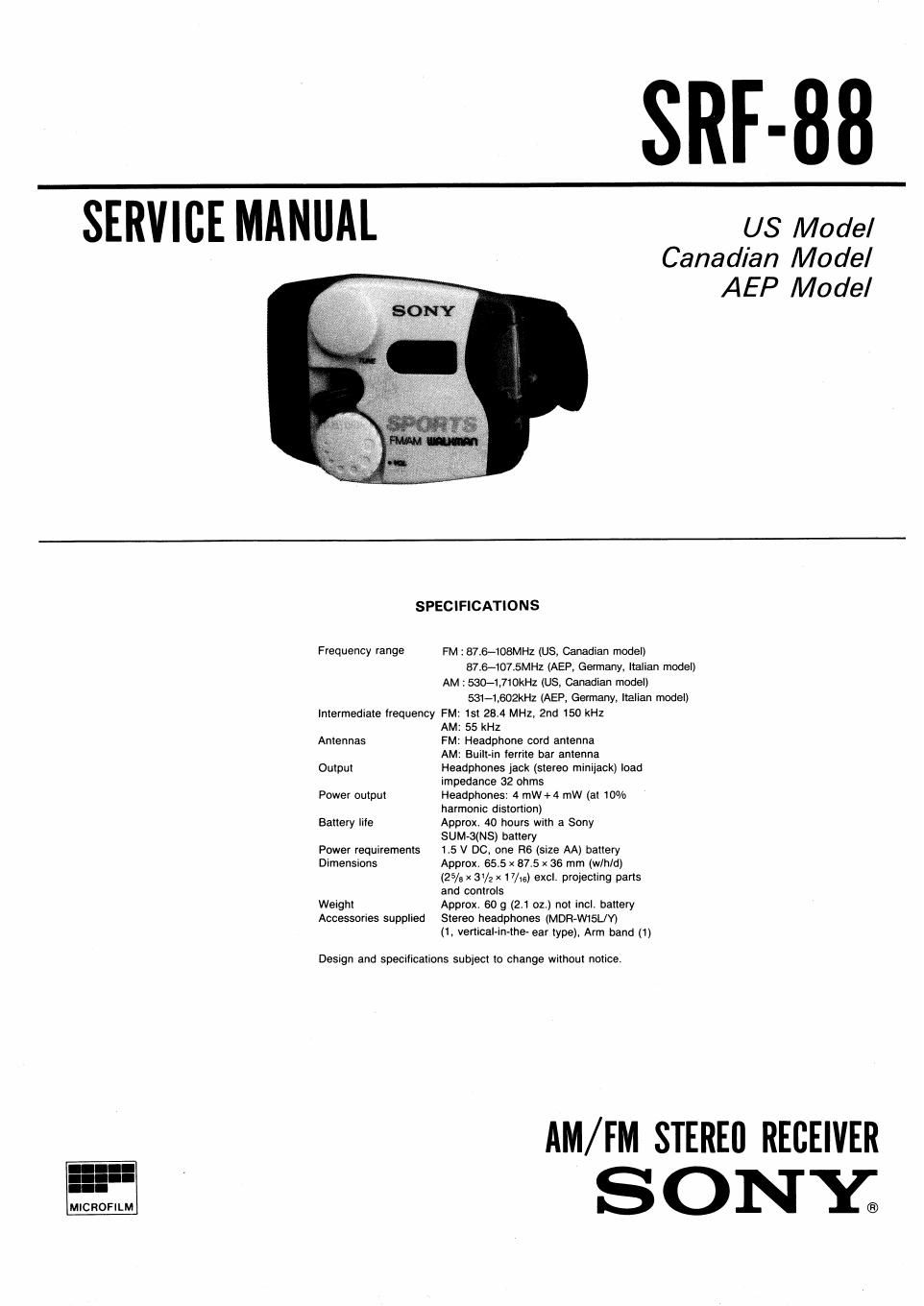

SRF-88
SERVICE MANUAL us Model
Canadian Model
AEP Model
SPEClFICATIONS
Frequency range FM :87.6~1DBMHZ (US, Canadian model)
87.6-107.5MHZ (AEP. Germany. Italian model)
AM : 530-1,710kHz (US. Canadian model)
531-1,602kHz (AEP, Germany, Italian model)
Intermediate frequency FM: ist 28.4 MHz. 2nd 150 kHz
AM: 55 kHz
Antennas FM: Headphone cord antenna
AM: Built-in ferrite bar antenna
Output Headphones jack (stereo minijack) load
Impedance 22 ohms
Power output Headphones: 4 mW+4 mW (at 10%
harmonic distortion)
Battery life Approx. 40 hours with a Sony
SUM-3(NS) battery
Power requirements 1.5 V DC, one R6 (size AA) battery
Dimensions Approx. 655 x 87.5 x 36 mm (w/h/d)
(25/5 x 3V2 x 17/i5) excl. projecting parts
and controls
Weight Approx. 60 g (2.1 oz.) not incl. battery
Accessories supplied Stereo headphones (MDFivW15L/Y)
(1, vertical-in-the- ear type), Arm band (1)
Design and specifications subject to change without notice.
