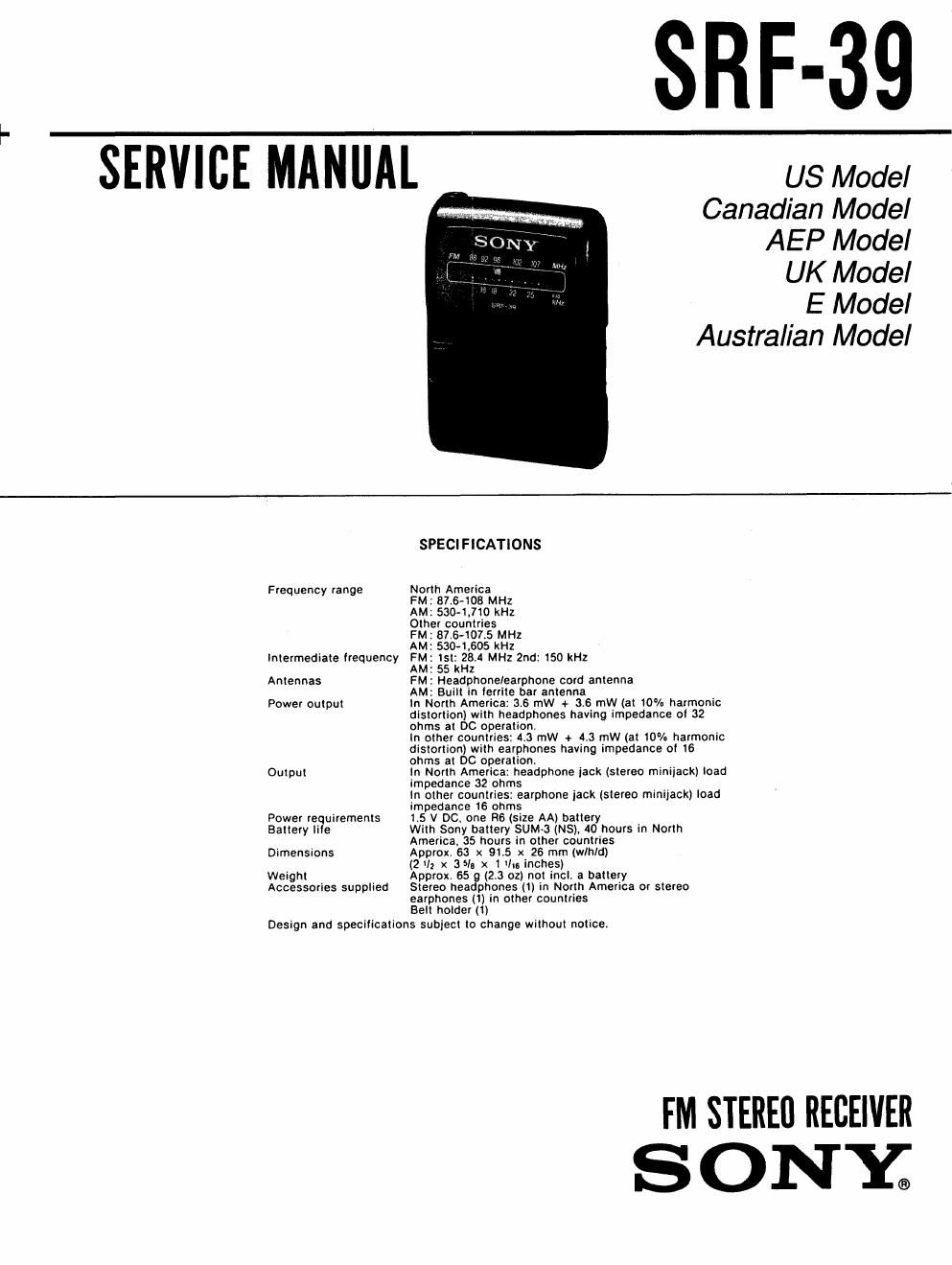

SRF-39
SERVICE MANUAL 3 us Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
SPECIFICATIONS
Frequency range North America
FM: 87.6-108 MHZ
AM: 5304.710 kHz
Other countries
FM: 876-1015 MHZ
AM: 530-1,605 kHz
Intermediate lrequency FM: tst: 28.4 MHz 2nd: 150 kHz
AM: 55 kHz
Antennas FM: Headphone/earphone cord antenna
AM: Built In ferrite bar antenna
Power output In North America: 3,6 mw + 3,6 mW (at 10% harmonic
distortion) with headphones having impedance oi 32
ohms at DC operation.
In other countries: 4,3 mw + 4.3 mW (at 10% harmonic
distortion) with earphones having impedance oi t6
ohms at DC operation
Output In North America: headphone jack (stereo minijack) load
impedance 32 ohms
In other countries: earphone jack (stereo minijack) load
impedance 16 ohms
Power requirements 1.5 V DC, one R6 (size AA) battery
Battery lite With Sony battery SUM-3 (NS), 40 hours in North
America, 35 hours in other countries
Dimensions Approx. 63 x 91.5 x 26 mm (win/d)
(21!; x 35!. x I xIn; inches)
Weight Approx. 65 g (2.3 oz) not inct. a battery
Accessories supplied Stereo headphones (1) in North America or stereo
earphones (1) in other countries
Belt hoider (1)
Design and specifications subject to change without notice.
FM STEREO RECEIVER
SONY
Page 2
SECTION 1
DISASSEMBLY
POINTER SETTING
Pointer
front cabinet
0 Set the needle as illustrated and
push it to the left.
0 Adjust the right side or the needle
coming out of the guide to the
right marking line of the two
on the lront cabinet
(Additional figure)
Rotate knob (tune) fully in
the direction of the arrow
and fix it on.
(Place the battery terminal on the
board.)
main board-
Set a knob (tune)
to 93f of pointer,
tollowing put on
the boardt
Pointer
front cabinet
