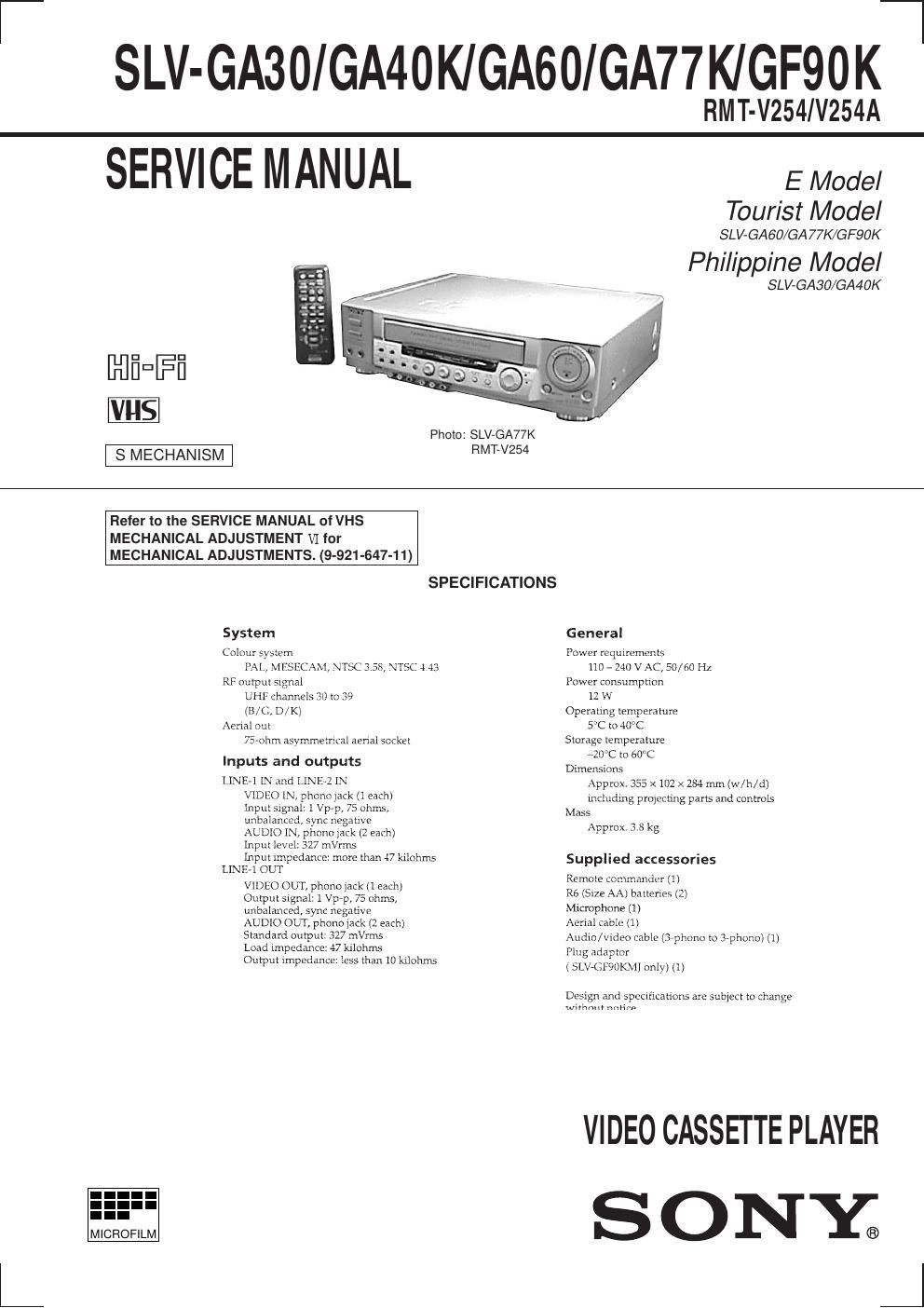

Page 1
SLV'GA30/GA4OK/GA60/GA77K/GF90K-
RMT-V254/V254A
SERVICE MANUAL
PhoIo: SLV-GA77K
E Model
Tourist Model
SLV-GA60/GA77K/GF90K
Philippine Model
SLV-GASO/GA40K
s MECHANISM MT-V254
Refer to the SERVICE MANUAL of VHS
MECHANICAL ADJUSTMENT VI for
MECHANICAL ADJUSTMENTS. (9-921-647-11)
SPECIFICATIONS
MICROFILM
System
Colour system
PAL, MESECAM, NTSC 3.58, NTSC 443
RP output signal
UHF Channels 30 to 39
(B/G, D /K)
Aerial out
7S-ohm asymmetrical aerial socket
Inputs and outputs
LINE-1 IN and LINE-2 IN
VIDEO IN, phone Iack a each)
InpuI Signal: 1 Vprp, 75 ohms,
unbalanced, sync negative
AUDIO 1N, phono lack (2 each)
Input Ievel: 327 mes
Input impedance: more than 47 101:;th
LINE-1 OUT
VIDEO OUT, phone jack (1 each)
Output signal: I Vpip, 75 ohms,
unbalanced, sync negative
AUDIO OUT, phonoiack (2 each)
Standard output' 327 mVrms
Load Impedance: 47 kilohms
Output impedance: less than 10 1019th
G en eraI
Power requiremenis
110 - 240 V AC, 50/60 Hz
Power consumption
12 W
Operating temperature
5C lo 40C
Storage temperature
20°C to 60°C
Dimensions
Approx. 355 x102 x 284 mm (w/h/d)
including projecting parts and controls
Mass
Approx 18 kg
Supplied accessories
Remote commandvr (1)
R6 (SIZE AA) banenes (2)
Micmphone (1)
Aerial cable (1)
Audio/video cable (313110110 to 3-phono) (1)
Plug adaptor
I SLV-(SF90KMI only) (1)
Design and specificanons are Subjett to change
wh'mm (\Hrn
VIDEO CASSETTE PLAYER
SONY)
J
