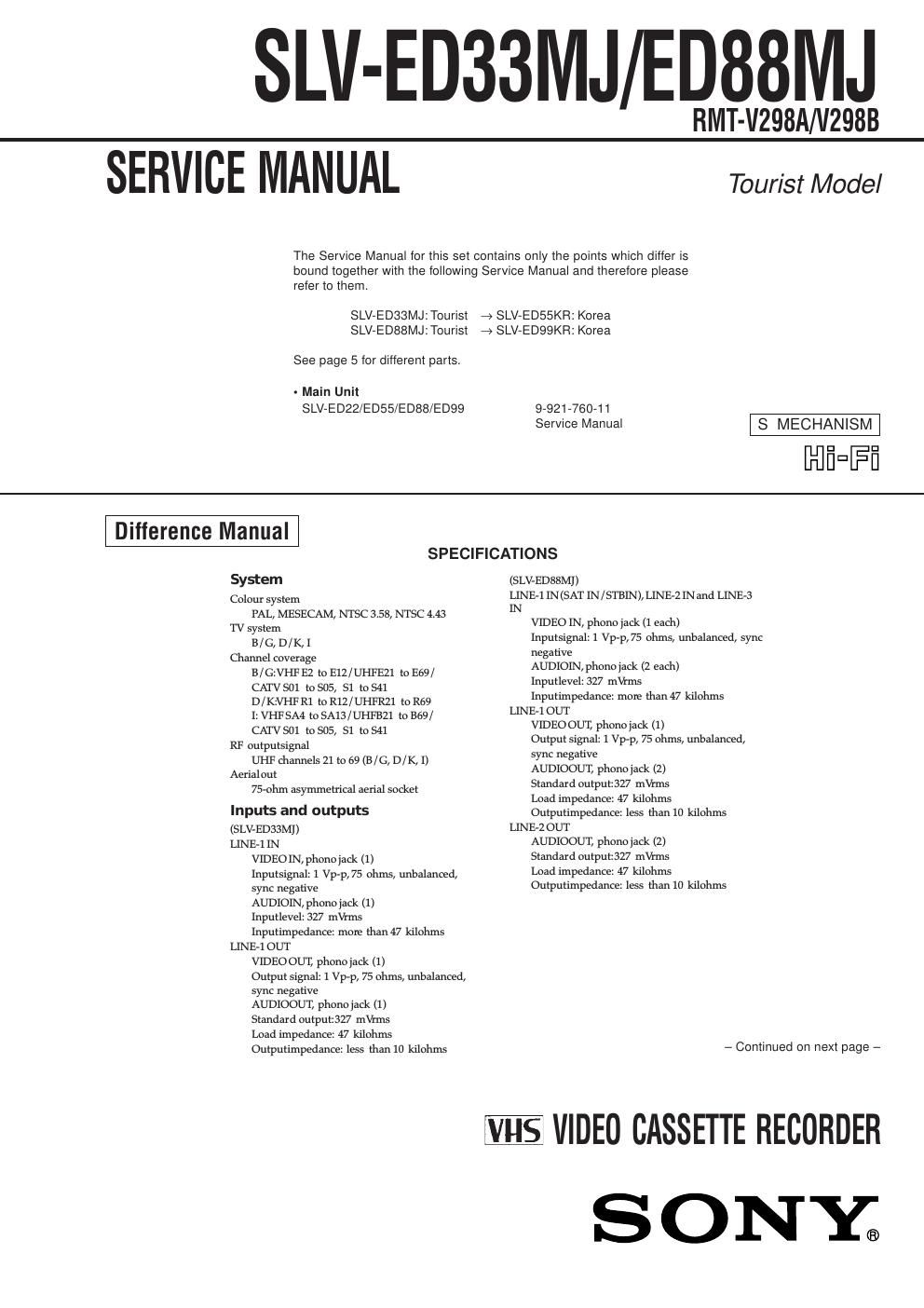

Page 1
SLV-ED33MJflED88MJ
RMT-V298A/V2983
SERVICE MANUAL
Tourist Model
The Service Manual tor this set contains only the points which difler is
bound together with the following Service Manual and therefore please
refer to them.
SLV-ED33MJ: Tourist ~> SLV-ED55KR: Korea
SLV-ED88MJ: Tourist ~> SLV-ED99KR: Korea
See page 5 for different parts.
- Main Unit
SLV-ED22/ED55/ED88/ED99
9-921-760-11
Service Manual
itifiaFfi
Difference Manual
SPECIFICATIONS
(SLV-EDSSMI)
LINE-I IN (SAT IN / ST BIN ), LINE-2 IN and LINE-3
System
Colour system
PAL, MESECAM, NTSC 3.58, NTSC 4.43
TV system
B/ G, D /K, i
Channel coverage
B/G:VHF E2 to EIZ/UHFEZI to E69/
CATV S01 to 505, s1 to 541
D/KNHF R1 to R12/UHFR21 to R69
1: VHF 5A4 to SA13/ UHFBZI to 369/
CATV S01 to S05, 51 to 54]
RF outputsignal
UHF channels 21 to 69 (B /c, D/K, 1)
Aerialout
75-ohm asymmetrical aerial socket
Inputs and outputs
(SLV-Eosle)
LINE-1 IN
VIDEO IN, phonojack (l)
lnputsignal: 1 Vp-p,75 ohms, unhalanccd,
sync negative
AUDIOIN, phono jack (1)
anutlevcl; 327 mVems
anutimpedanee; more than 47 kilohms
LINE-1 OUT
VIDEO OUT, phonojack (1)
Output signal: 1 vp-p, 75 ohms, unbalanced,
sync negative
AUDIOOUT, phono jack (1)
Standard output;327 mVrms
Load impedance: 47 kilohms
Outputimpedanee; less than ll] kilohms
IN
VIDEO IN, phuno jack (1 each)
Inputsignal: 1 Vp-p,75 ohms, unbalanced, sync
negative
AUDIOIN, phono jack (2 each)
Inputlcvc12327 mVrms
anutimpedaneo: more than 47 kilohms
LIN E-l OUT
VIDEO our, phono jack (1)
Output signal: 1 Vp-p, 75 ohms, unbalanced,
sync negativc
AUDIOOUT, phono jack (2)
Standard output;327 mVrms
Load impedance: 47 kilohms
Outputimpcdancc: less than to kilohms
LIN E-Z OUT
AUDIOOUT, phonojack (2)
Standard output;327 mVrms
Load impedance: 47 kilohms
Outputimpodance; less than 10 kilohms
- Continued on next page -
VHS VIDEO CASSEITE RECORDER
SONY;
Page 2
General
Power requirements
110 - 240 VAC, 50/60Hz
Power consumption
15 w (SLV-ED33MI)
16 w (SLV-EDBSMJ)
Operating temperature
5°C to 40"C
Storage temperature
-2ovc to 60°C
Dimensions
Approx. 430 X 97 X 288 mm (w/h/d)
including projecting parts and controls
Mass
Approx. 4.1 kg
Power back-up
Built-in self-charging capacitor
Back-up durationtup to 24 hours at a time (it
may lie differ in actual pertorrnance)
Supplied accessories
Remote commander (1)
R6 (size AA)liatterics (2)
Acrialcalile (1)
Plug adaptor (1)
Design and specifications are subject to change
without notice.
