Sony slv d 990 pb service manual
This is the 138 pages manual for sony slv d 990 pb service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony slv d 990 pb service manual (Ocr-read)

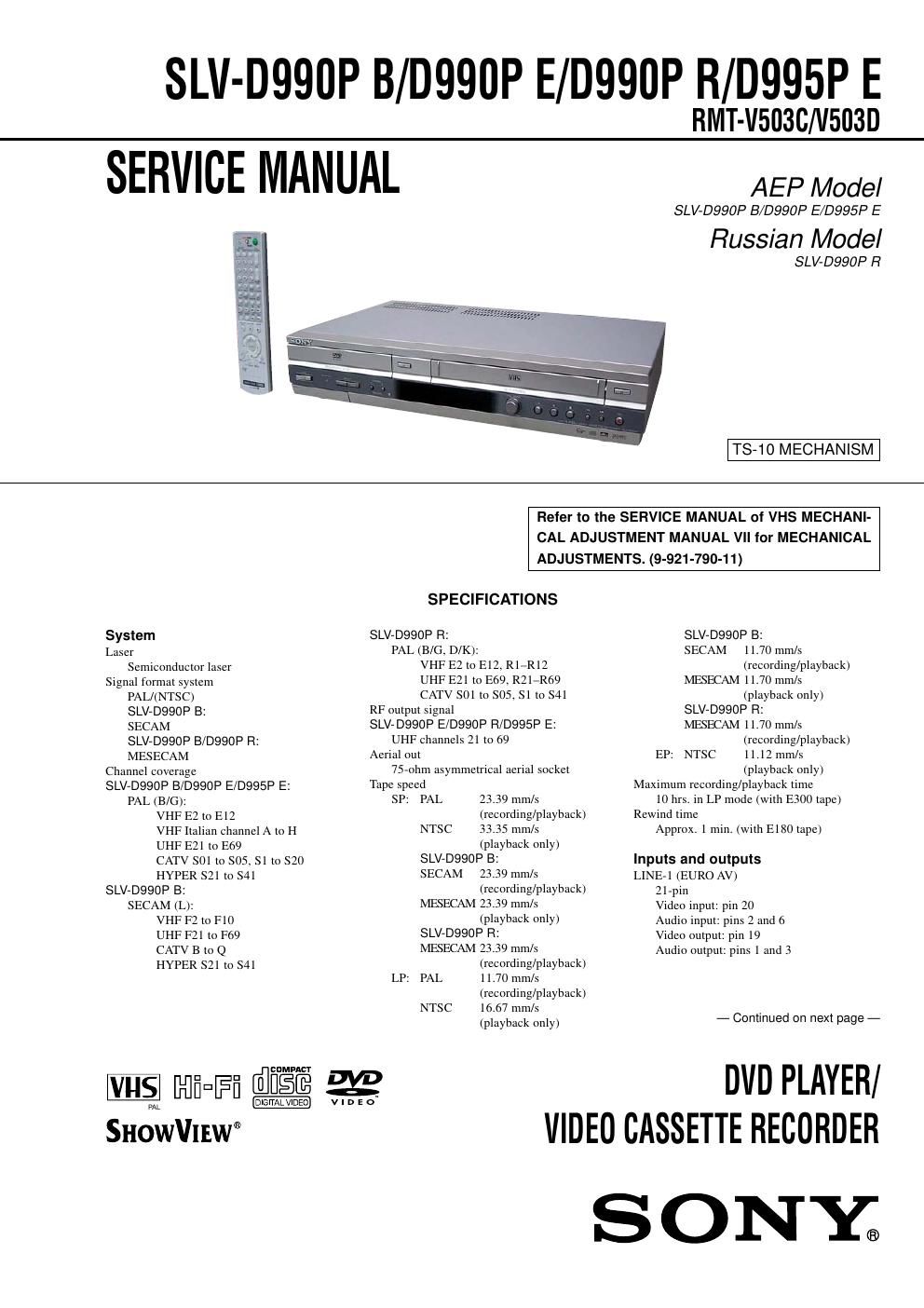

Page 1
- 2 - LINE-2 IN t / o L/R VIDEO IN, phono jack (1) Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO IN, phono jacks (2) Input level: 327 mVrms Input impedance: more than 47 kilohms LINE-3 21-pin Video input: pin 20 Audio input: pins 2 and 6 OUT VIDEO OUT, phono jack (1) Output signal: 1 Vp-p, 75 ohms, unbal- anced, sync negative AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms Additional AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms DIGITAL OUT (OPTICAL) Optical output jack/–18 dBm (wave length 660 nm) DIGITAL OUT (COAXIAL) Phono jack/0.5 Vp-p/75 ohms COMPONENT VIDEO OUT (Y, C B, CR) phono jack Y: 1.0 Vp-p/C B, CR: 0.7 Vp-p, 75 ohms S-VIDEO OUT 4-pin mini DIN/Y: 1.0 Vp-p, C: 0.3 Vp-p (PAL), 0.286 Vp-p (NTSC)/75 ohms Timer sectionClock Quartz locked Timer indication 24-hour cycle Timer setting 6 programs (max.) GeneralPower requirements 220 − 240 V AC, 50 Hz Power consumption 20 W Standby power consumption 2.6 W (Power Save On mode, minimum) SLV-D990P R: Power back-up Back-up duration: 1 hour at a time Operating temperature 5 °C to 40 °C Storage temperature –20 °C to 60 °C Dimensions including projecting parts and controls (w/h/d) SLV-D995P E: Approx. 430 × 85 × 294 mm SLV-D990P B/D990P E/D990P R: Approx. 430 × 85 × 287 mm Mass Approx. 3.9 kg Supplied accessoriesRemote commander (1) R6 (size AA) batteries (2) Aerial cable (1) SLV-D990P B: PERITEL cable (1) Design and specifications are subject to change without notice.
Page 2
- 3 - SAFETY CHECK-OUT 1. Check the area of your repair for unsoldered or poorly-sol- dered connections. Check the entire board surface for solder splashes and bridges. 2.Check the interboard wiring to ensure that no wires are pinched or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transis- tors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.After correcting the original service problem, perform the following safety checks before releasing the set to the customer: 4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recom- mend their replacement. 5. Check the B+ voltage to see it is at the values specified. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. CAUTION: The use of optical instrument with this product will increase eye hazard. Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.
