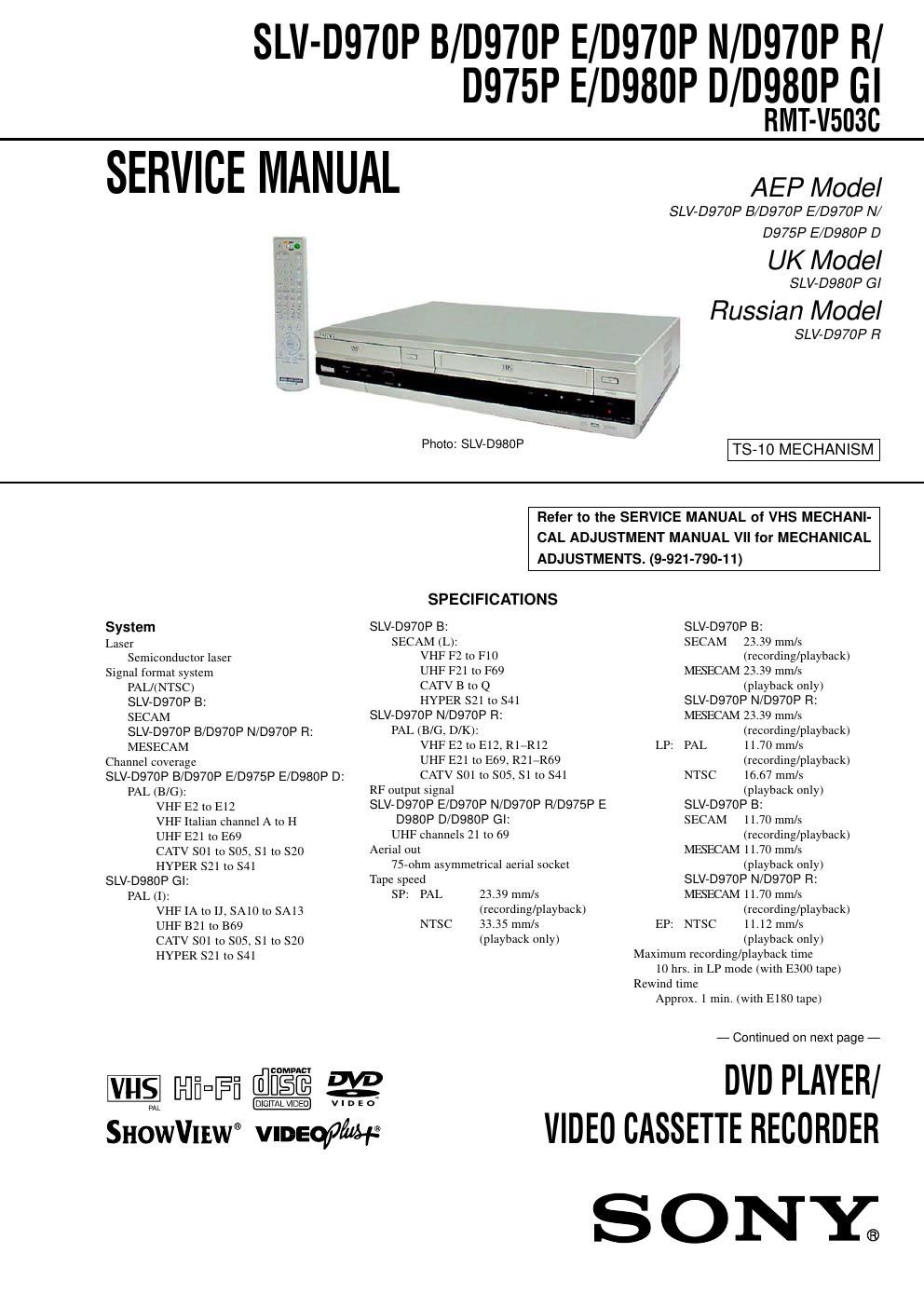

Sony slv d 970 p service manual

Page 1

- 2 - Inputs and outputs LINE-1 (EURO AV) 21-pin Video input: pin 20 Audio input: pins 2 and 6 Video output: pin 19 Audio output: pins 1 and 3 LINE-2 IN t / o L/R VIDEO IN, phono jack (1) Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO IN, phono jacks (2) Input level: 327 mVrms Input impedance: more than 47 kilohms LINE-3 21-pin Video input: pin 20 Audio input: pins 2 and 6 OUT VIDEO OUT, phono jack (1) Output signal: 1 Vp-p, 75 ohms, unbal- anced, sync negative AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms Additional AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms DIGITAL OUT (OPTICAL) Optical output jack/–18 dBm (wave length 660 nm) DIGITAL OUT (COAXIAL) Phono jack/0.5 Vp-p/75 ohms COMPONENT VIDEO OUT (Y, C B, CR) phono jack Y: 1.0 Vp-p/C B, CR: 0.7 Vp-p, 75 ohms S-VIDEO OUT 4-pin mini DIN/Y: 1.0 Vp-p, C: 0.3 Vp-p (PAL), 0.286 Vp-p (NTSC)/75 ohms Timer section Clock Quartz locked Timer indication 24-hour cycle Timer setting 6 programs (max.) General Power requirements 220 − 240 V AC, 50 Hz Power consumption 20 W Standby power consumption 2.6 W (Power Save On mode, minimum) SLV-D970P N/D970P R: Power back-up Back-up duration: 1 hour at a time Operating temperature 5 °C to 40 °C Storage temperature –20 °C to 60 °C Dimensions including projecting parts and controls (w/h/d) Approx. 430 × 85 × 287 mm Mass Approx. 3.9 kg Supplied accessories Remote commander (1) R6 (size AA) batteries (2) Aerial cable (1) SLV-D970P B: PERITEL cable (1) Design and specifications are subject to change without notice.
