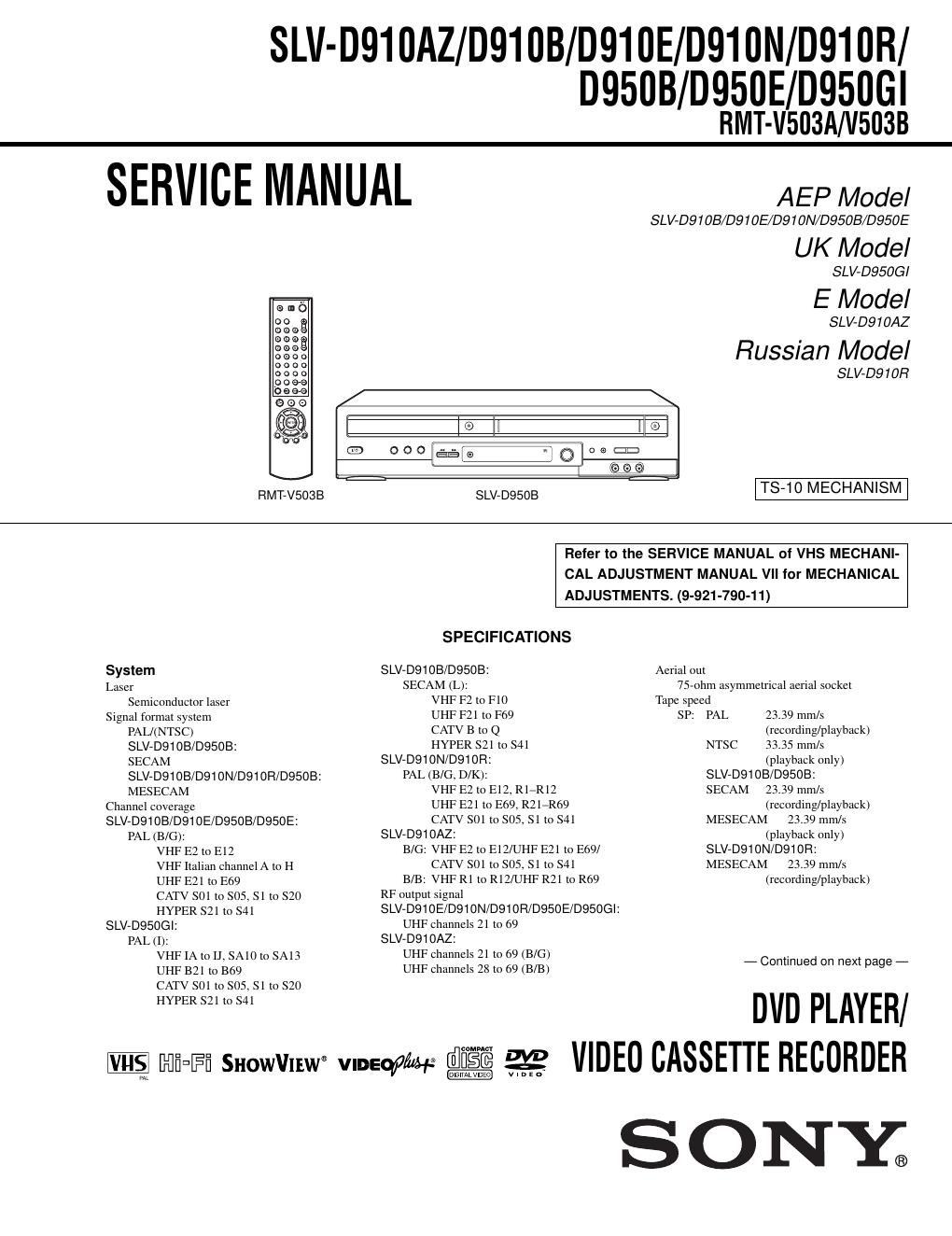

Sony slv d 950 service manual

Page 1

- 2 - LP: PAL 11.70 mm/s (recording/playback) NTSC 16.67 mm/s (playback only) SLV-D910B/D950B: SECAM 11.70 mm/s (recording/playback) MESECAM 11.70 mm/s (playback only) SLV-D910N/D910R: MESECAM 11.70 mm/s (recording/playback) EP: NTSC 11.12 mm/s (playback only) Maximum recording/playback time 10 hrs. in LP mode (with E300 tape) Rewind time Approx. 1 min. (with E180 tape) Inputs and outputsSLV-D910B/D910E/D910N/D910R/D950B/ D950E/D950GI: LINE-1 (EURO AV) 21-pin Video input: pin 20 Audio input: pins 2 and 6 Video output: pin 19 Audio output: pins 1 and 3 LINE-2 IN t / o L/R VIDEO IN, phono jack (1) Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO IN, phono jacks (2) Input level: 327 mVrms Input impedance: more than 47 kilohms LINE-3 21-pin Video input: pin 20 Audio input: pins 2 and 6OUT VIDEO OUT, phono jack (1) Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms SLV-D910AZ: LINE IN1/LINE-2 IN VIDEO IN, phono jack (1) Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO IN, phono jacks (2) Input level: 327 mVrms Input impedance: more than 47 kilohms LINE OUT VIDEO OUT, phono jack (1) Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms DIGITAL OUT (OPTICAL) Optical output jack/–18 dBm (wave length 660 nm) DIGITAL OUT (COAXIAL) Phono jack/0.5 Vp-p/75 ohms S VIDEO OUT 4-pin mini DIN/Y: 1.0 Vp-p, C: 0.3 Vp-p (PAL), 0.286 Vp-p (NTSC)/75 ohms SLV-D910AZ: COMPONENT VIDEO OUT (Y, Cb, Cr) phono jack Y: 1.0 Vp-p/Cb, Cr: 0.7 Vp-p, 75 ohms Timer sectionClock Quartz locked Timer indication 24-hour cycle Timer setting 6 programs (max.) SLV-D910AZ: Power back-up Back-up duration: up to 1 hour at a time GeneralPower requirements 220 – 240 V AC, 50 Hz Power consumption 25 W Operating temperature 5 °C to 40 °C Storage temperature –20 °C to 60 °C Dimensions including projecting parts and controls (w/h/d) SLV-D910AZ/D950: Approx. 430 × 95 × 333 mm SLV-D910B/D910E/D910N/D910R: Approx. 430 × 95 × 325 mm Mass Approx. 4.2 kg Supplied accessoriesRemote commander (1) R6 (size AA) batteries (2) Aerial cable (1) Audio cord (pinplug ×2 y pinplug ×2) (1) Video cord (pinplug ×1 y pinplug ×1) (1) Design and specifications are subject to change without notice.
