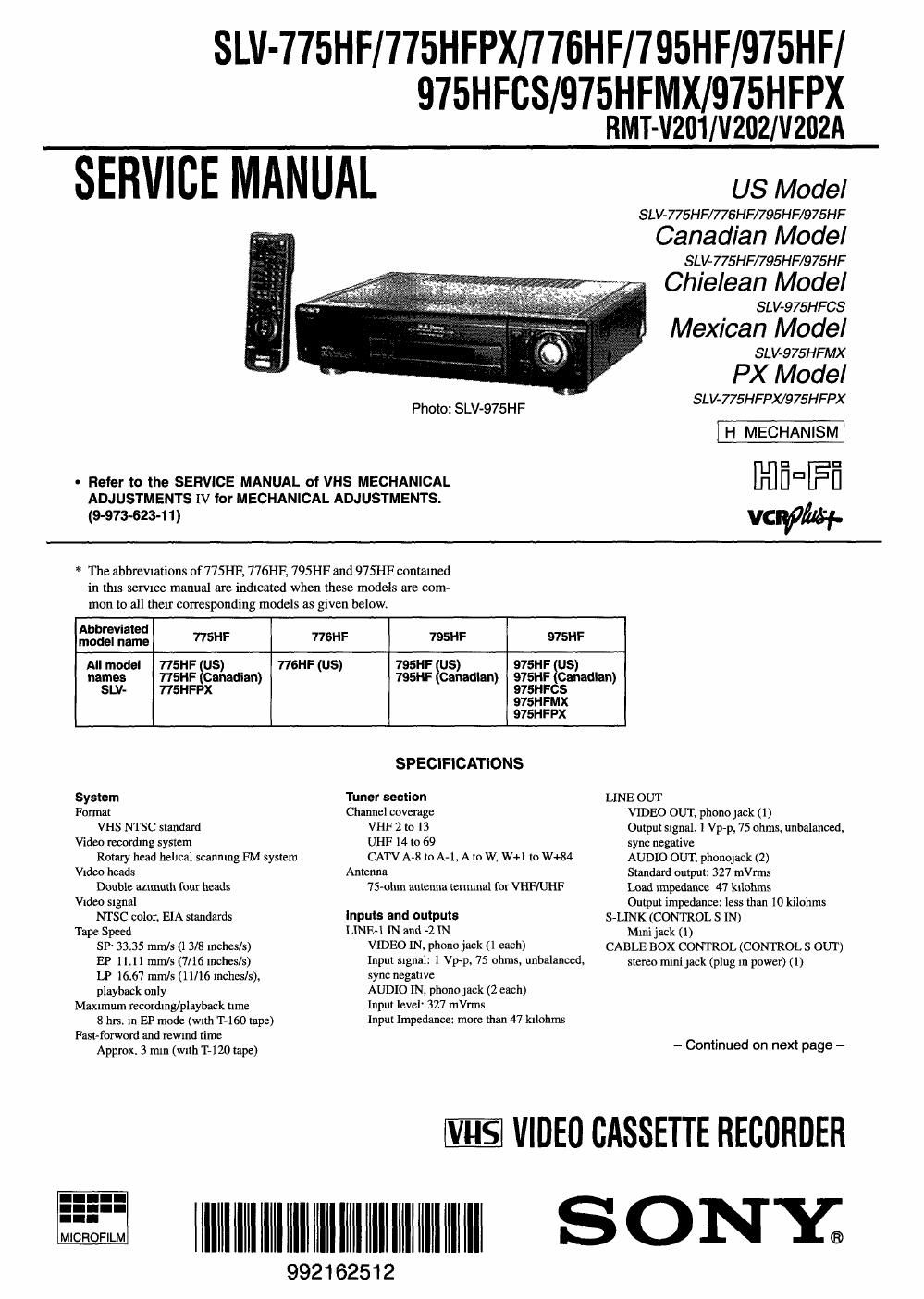

Sony slv 775 hf service manual

Page 2

Timer section
Clock
Quarts locked
Timer indication
12-hour cycle
Tuner setting
8 programs per month (max)
Power backup
Built-in selflcharging capacitor
Back-up duraxion. up to 1 hours at a time

Power consumpuon
24 w (max) (SLV-775HF/776HF/795HF/
975HF (US)/975HF (Cana-

Suppliad accessories
Remote commander (1)
Size AA (RS) batienes (2)

d1an)) 75-ohm coronal cable with F-type connectors (1)
20 W (max) (SLV-775HFPx/975HFCS/ Audio/video cable (3 phono, 1 mini to 3 phono, 1
975HFMX/975HFPX) Mini) (1)

Operating temperature

5 'Cto40'C(41'FtolO4'F)
Storage temperature

-20 C to -60 C (-4 'F to 140 'F)
Dimensions

Cable Mouse (cable box controller) (1)
Plug adaptor (1) (SLVe775HFPX/975HFCS/
975HFPX)

Desxgn and specxflcations are subject to change

General Approx. 430x109><308 mm (w/h/d) Without 01108
Power requirements (SLV-775HP/776HF/795HF)
120 V AC. 60 Hz (SLV~775HFI'I76HFI Approx. 430x109x321 mm (wlh/d)
795HF/975HF (US)/ (SLV-975HF)
975W (Canadian)/975HPMX) Approx. (17x43/xx123/4 inches) including
110 V AC to 240 v AC, 50/60 Hz projecting pans and controls
(SLV-775HFPX/975HFCS/ Mass
975HFPX) Approx 4.5 kg (811:! 13 oz)

(SLV-775HF/776HFI79SI'H7)
Approx. 4.7 kg (10 lb 6 oz) (SLV-975l-IF)

- Feature Difference

SLV-
FEATURE 773$? 795HF 915m:
HEAD/CH 4HD/60H 4HD/60H 4HD/70H
F.E.HEAD X x 0
X2 X 0 FWD/RVS O FWD/RVS
PSO (DSF)/APSO X DSF DSF
INDEX SEARCH X 0 O
SKIP 0 (CM skip) O (skip/scroI) O (skip/scrol)
DIMMER X 0 (MENU) 0 (MENU)
A/V INSERT XIX XIX O/O
AUDIO-DUB X/X x O
EDIT SWITCH X X 0
CLICK/JOG SHU'I'ILE (REMOTE COMMANDER) X X 0/0
VTR MODE (REMOTE COMMANDER) 3 3 1/2/3
OSD type Blue/White Intelligente Intelligenie
VTR MODE (TERMINALS) 3 3 OFF/1/2/3
FRONT DOOR X X 0 (with switch)
FUNCTION SWITCH Direci Function New DMSw/Jog New DMSw/Jog
V-Set (Auto Guide Channel Set) X 0 O

SAFETY-RELATED COMPONENT WARNING"

COMPONENTS IDENTIFIED BY MARK A OR DO'I'I'ED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA sécunrré!

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE ASUR
LES DIAGRAMMES SCHEMATIOUES ET LA LISTE DES
PIECES SONT CRITIQUES POUR LA SECURITE DE
FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS
QUE PAR DES PIECES SONY DONT LES NUMEROS SONT
DONNES DANS CE MANUEL 0U DANS LES SUPPLEMENTS
PUBLIES PAR SONY.
