sony seq h 4800

Extracted text from sony seq h 4800 (Ocr-read)


Page 1

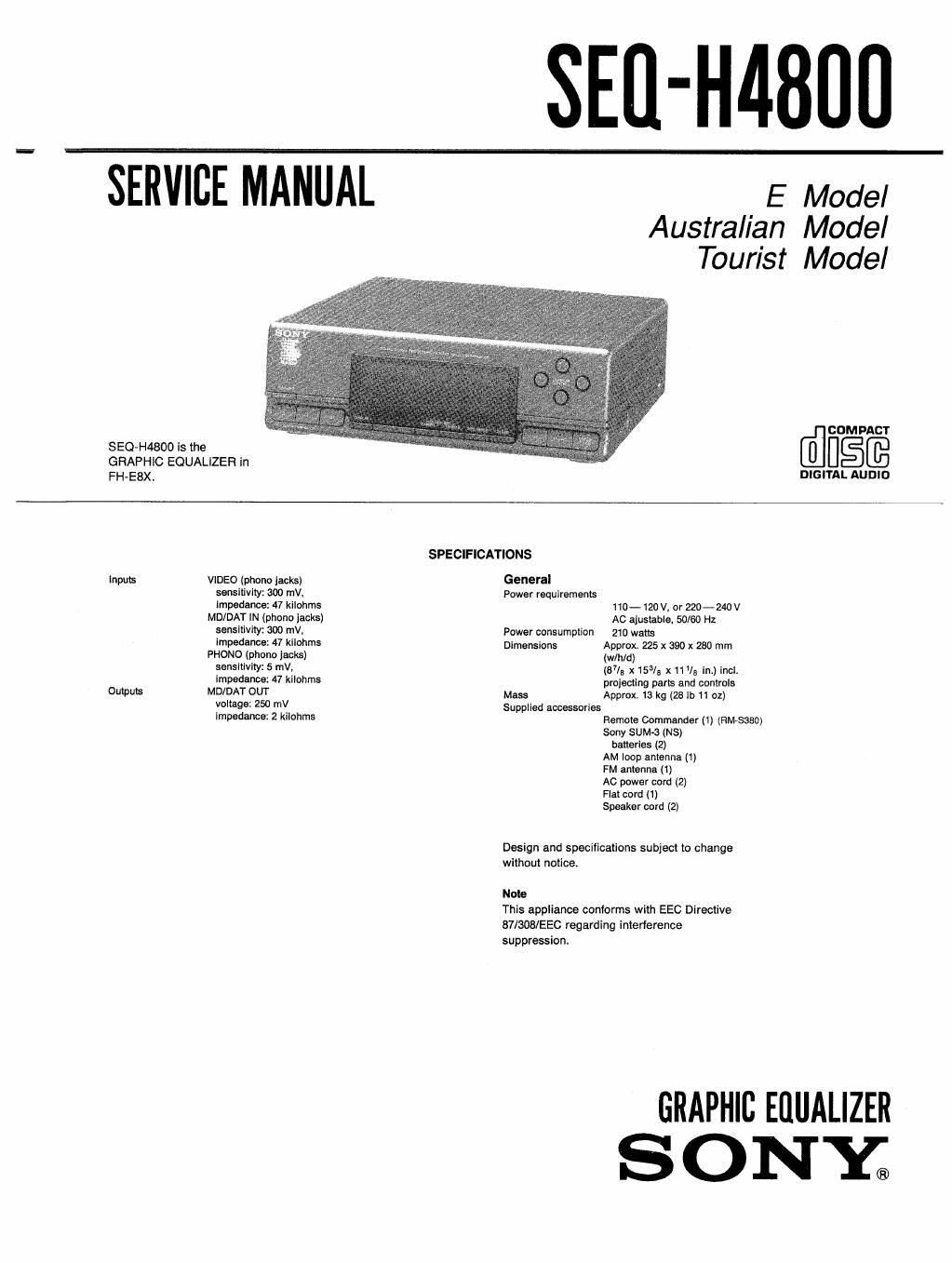

SEfl-H4800

SERVICE MANUAL E Model

Australian Model
Tourist Model

SEQ»H4800 is the
GRAPHIC EQUALIZER in

[flfiwgfi

FH~E8X. DIGITAL AUDIO
SPECIFICATIONS
inputs VIDEO (phono jacks) General
sensitivity: 300 mV, Power requirements
impedance: 47 kllohms 110- 120 V, or 220-240V
MD/DAT IN (phone jacks) A0 ajustable, 50/60 Hz
sensitivity: 300 mV, Power consumption 210 watts
impedance: 47 kliohms Dimensions Approx. 225 x 390 x 280 mm
PHONO (phone Jacks) (w/h/d)
sensitivity: 5 mV, (37/5 x153], x 11]; In.) incl.
impedance: 47 kiiohms projecting pans and controls
OUWUB MD/DAT OUT Mass Approx. 13 kg (2811) 11 oz)
"3991 250 mV Supplied accessories
Impedance: 2 kilohms Remote Commander (1) (RM-$350)
Sony SUM-3 (NS)
batteries (2)

AM loop antenna (1)
FM antenna (1)

AC power cord (2)
Flat cord (1)
Speaker cord (2)

Design and specifications subject to change
without notice,

Note
This appliance coniorms with EEC Directive

87/308/EEC regarding interference
suppression.

GRAPHIC EflliALIZER
S O NY®
