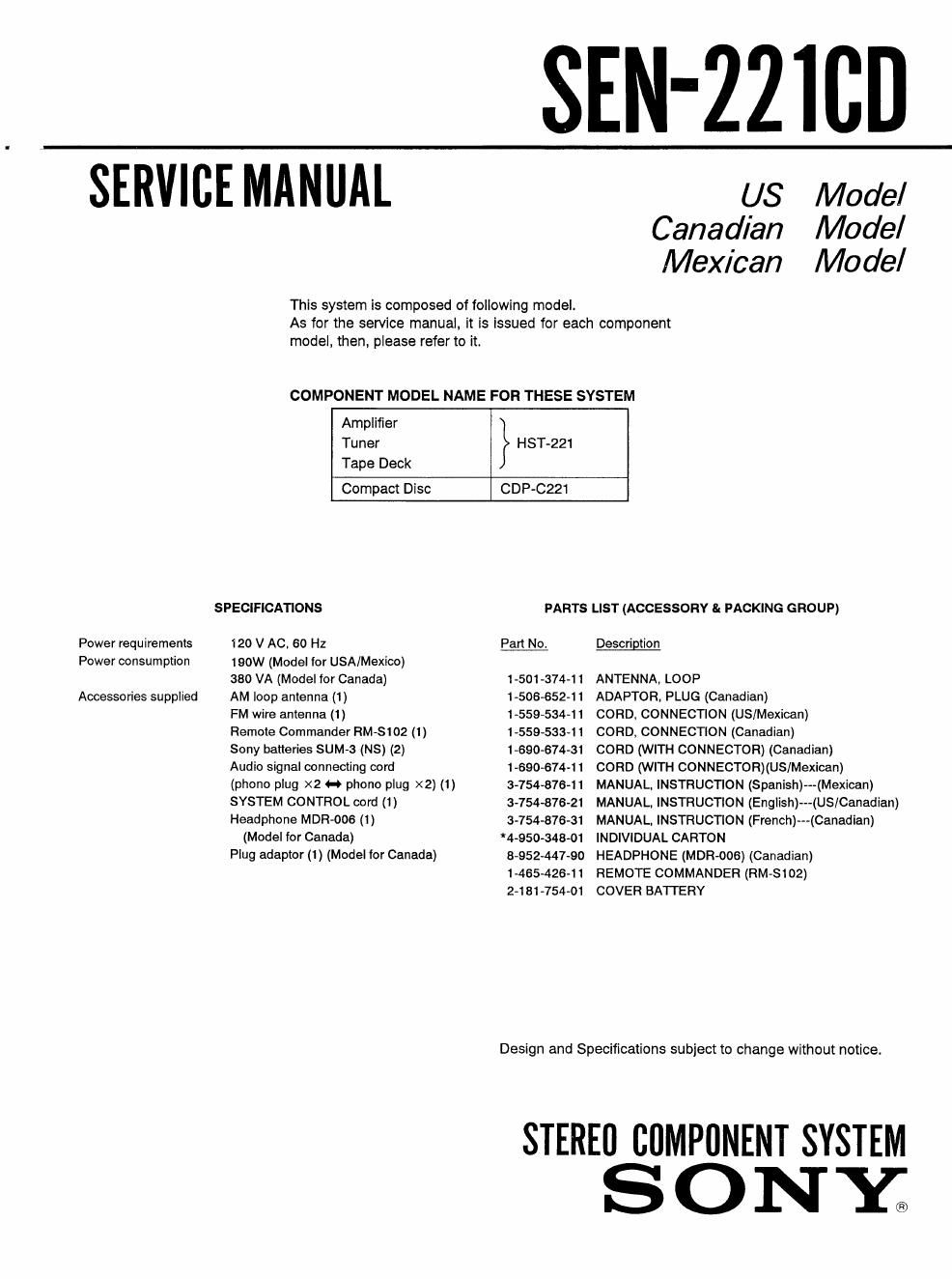

SEN-22180 1

SERVICE MANUAL

Power requirements
Power consumption

Accessories supplied

US Model
Canadian Model
Mex/can M0 (19/

This system is composed of following model.
As for the service manual, it is issued for each component

model, then, please refer to it.

COMPONENT MODEL NAME FOR THESE SYSTEM

Ampliﬁer
Tuner
Tape Deck

} HST-221

Compact Disc

GDP-0221

SPECIFICATIONS

120 V AC, 60 Hz
190W (Model for USA/Mexico)
380 VA (Model for Canada)
AM loop antenna (1)
FM wire antenna (1)
Remote Commander RM-SIOZ (1)
Sony bakeries SUM~3 (NS) (2)
Audio signal connecting cord
(phone plug x2 H phono plug X2) (1)
SYSTEM CONTROL cord (1 )
Headphone MDR~006 (1)

(Model for Canada)
Plug adaptor (1) (Model for Canada)

PARTS LIST (ACCESSORY & PACKING GROUP)

Parl No Description

1-501 ~374~1I ANTENNA, LOOP

1-506-652-11 ADAPTOR, PLUG (Canadian)

1-559-534-11 CORD, CONNECTION (US/Mexican)

1-559-533-11 CORD. CONNECTION (Canadian)

1-690-674-31 CORD (WITH CONNECTOR) (Canadian)

1-690-674-11 CORD (WITH CONNECTOR)(US/Mexican)

3-754-876-11 MANUAL. INSTRUCTION (Spanish)---(Mexican)

3-754-876-21 MANUAL, INSTRUCTION (English)-~»(US/Canadian)

3-754-876-31 MANUAL. INSTRUCTION (French)---(Canadian)
*4~950-348-01 INDIVIDUAL CARTON

8-952-447»90 HEADPHONE (MDR-ooe) (Canadian)

1-465-426-11 REMOTE COMMANDER (RM-$102)

2-181-754-01 COVER BATTERY

Design and Specifications subject to change without notice.

STEREO COMPONENT SYSTEM
S O N Y;

Page 2

9-957-037-1 1

SEN-221GB

Remote Commander

The remote commander supplied with this unit can control the
unit from a distance. The remote commander is divided into 6
sections according to the functions as shown below.

Battery life

About half a year of normal operation can be expected when
using the Sony SUM»3 (NS) batteries. When the batteries
are exhausted, the remote commander can no longer
operate the unit. If this happens, replace both batteries with
new ones.

To avoid battery leakage

When the commander is not be used for a long time, remove
the batteries to avoid damage caused by battery leakage
and corrosion

inserting the batteries into the remote commander

2 insert two size-AA (R6)
batteries with correct
polarity.

1 Open the cover.

ﬁe

POWER button

ﬂ

DBFB button (This button does not operate.)

TUNER PRESET +/- buttons

VOL (volume) +/-- buttons

Function selectors

CD player operation buttons
in the TUNER mode:
Press CD > once, the unit enters the CD mode.
Press CD > twice, the CD player starts playback.
In the mode other than the TUNER mode:
Press CD > once, the unit enters the CD mode and
starts playback

Sony Corporation
Audio Group

_2_
