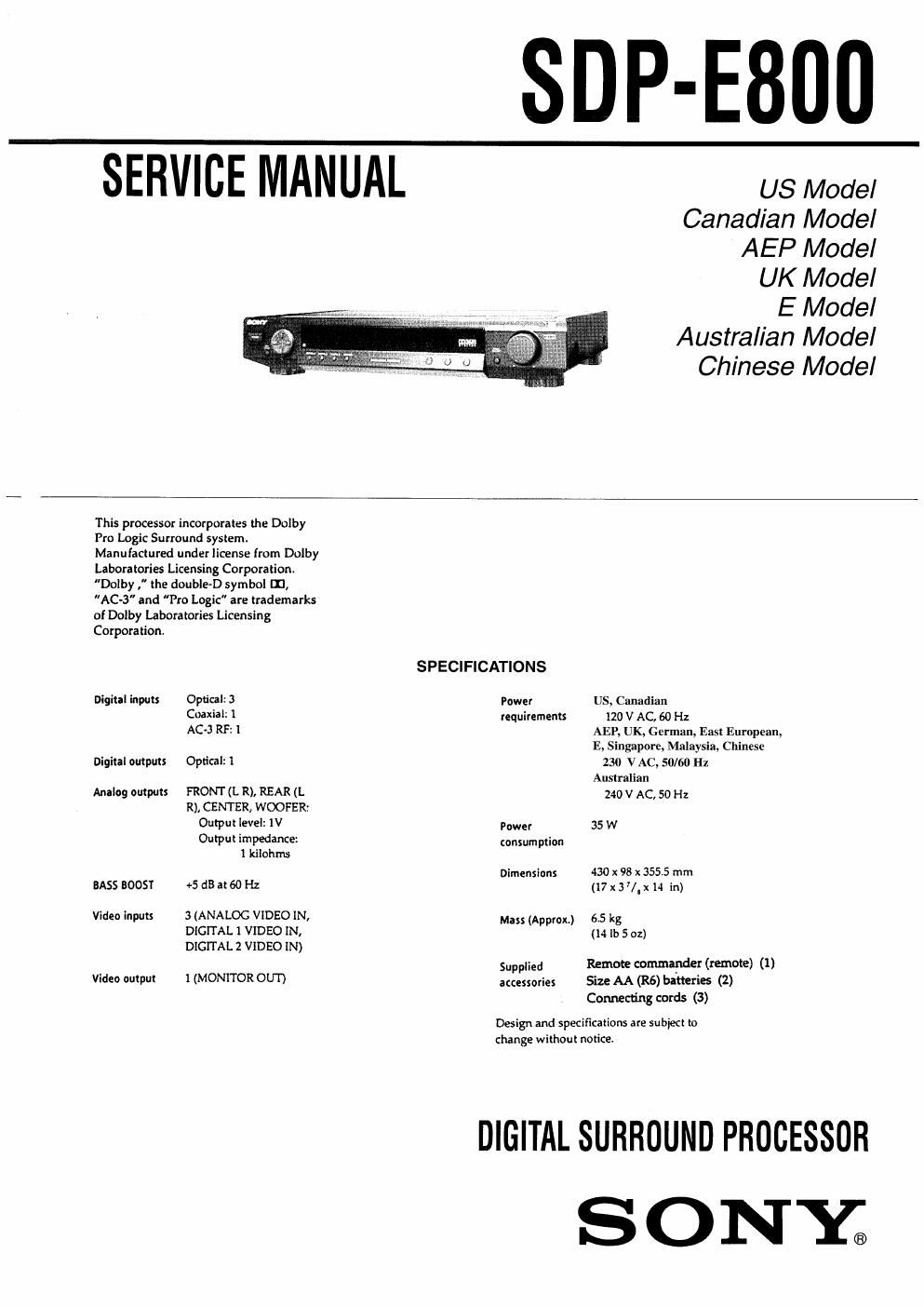

Sony sdp e 800 service manual
This is the 59 pages manual for sony sdp e 800 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony sdp e 800 service manual (Ocr-read)
Page 1
Ñ 2 ÑTABLE OF CONTENTS 1. SERVICING NOTE .......................................................... 3 2. GENERAL .......................................................................... 4 3. TEST MODE ..................................................................... 13 4. DIAGRAMS 4-1. Circuit Boards Location ...................................................... 14 4-2. Block Diagrams ¥ DA Section ....................................................................... 15 ¥ DSP Section ..................................................................... 17 ¥ Display Section ................................................................ 19 ¥ Panel Section .................................................................... 21 ¥ Power Section .................................................................. 21 4-3. Printed Wiring Board Ñ Main Section Ñ .......................... 23 4-4. Schematic Diagram Ñ D/A Section Ñ .............................. 27 4-5. Schematic Diagram Ñ Control Section Ñ ......................... 31 4-6. Schematic Diagram Ñ Dolby AC-3 Section Ñ ................. 35 4-7. Printed Wiring Board Ñ Display Section Ñ ...................... 38 4-8. Schematic Diagram Ñ Display Section Ñ ........................ 41 4-9. IC Block Diagrams .............................................................. 44 4-10. IC Pin Functions ................................................................ 48 5. EXPLODED VIEWS 5-1. Case Section ........................................................................ 60 5-2. Main Section ....................................................................... 61 6. ELECTRICAL PARTS LIST ........................................ 62 MODEL IDENTIFICATION Ñ BACK PANEL Ñ Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be damaged by heat. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ!! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY. SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Parts No. ¥ Abbreviation CND : Canadian model. SP : Singapore model. CH : Chinese model. AUS : Australian model. ¥ For detailed Malaysia model refer to E model. ¥ For detailed German, East European model refer to AEP model. US model E, SP model AEP, UK model AUS model CND model CH model 4-992-696-0 4-992-696-1 4-992-696-2 4-992-696-3 4-992-696-4 4-992-696-5 MODEL PARTS No.
Page 2
Ñ 3 Ñ SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. To Exposed Metal Parts on Set 0.15 mF1.5k W AC voltmeter (0.75V) Earth Ground SECTION 1 SERVICING NOTE RV101 of MAIN Board RV101 of the MAIN board requires no adjustments. Please note that it should be dixed to mechanical center position when you moved and do not know origin position. L702 of PLL board Do not touch the L702 on the PLL Board because it is not needed to adjust. Connection and Test Disc Connection of this unit to a AC-3 Dolby surround equipment will realize outstanding sound playback. Check if the respective surround channel outputs are playing back normally by the following method. Jig : Discription Part No. AC-3 TEST LD J-2501-132-A Connected Equipment: AC-3 LD player (This unit is also compatible with the digital versatile disc player (DVD). The DVD must be checked with the LD player using all the circuits of this unit.) Connecting Method: AC-3 RF output terminal AC-3 RF input terminal AC-3 RF output terminal Coaxial digital connecting cable VMC-10G, etc. (Optional) AC-3 compatible LD playerUnit Checking Method: Play back a test disc of the LD player, and check if the contents recorded on the disc case (printed on the disc case) are played back normally.
