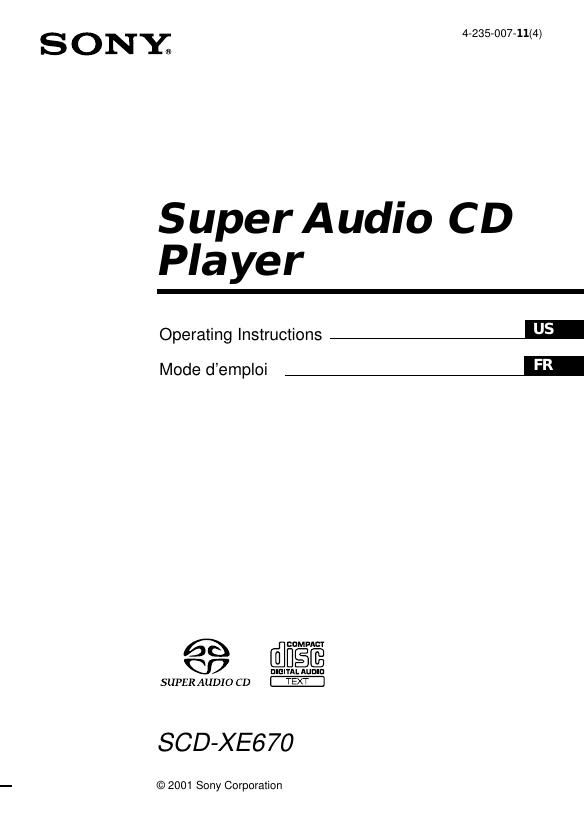

Sony SCD XE670 Owners Manual
This is the 52 pages manual for Sony SCD XE670 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sony SCD XE670 Owners Manual (Ocr-read)
Page 1
2US WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. For the customers in the United States This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna – Increase the separation between the equipment andreceiver – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected – Consult the dealer or an experienced radio/TV technician for help CAUTIONYou are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment This label is located on the LEFT exterior The use of optical instruments with this product will increase eye hazard As the laser beam used in this CD player is harmful to eyes, do not attempt to disassemble the cabinet Refer servicing to qualified personnel only Owners Record The model and serial numbers are located at the rear of the unit Record the serial number in the space provided below Refer to them whenever you call upon your Sony dealer regarding this product Model No SCD-XE670 Serial No For the customers in Canada This Class B digital apparatus complies with Canadian ICES-003 CAUTION TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE About This Manual The instructions in this manual are for model SCD- XE670. Conventions- Instructions in this manual describe the controls on the player. You can also use the controls on the remote if they have the same or similar names as those on the player. - The following icons are used in this manual: Indicates that you can do the task using the remote. Indicates hints and tips for making the task easier. Z z
Page 2
3US Features About the Super Audio CD - Super Audio CD is a new high-quality audiodisc standard where music is recorded in the DSD (Direct Stream Digital) format (conventional CDs are recorded in the PCM format). The DSD format, using a sampling frequency 64 times higher than that of a conventional CD, and with 1-bit quantization, achieves both a wide frequency range and a wide dynamic range across the audible frequency range, and so provides music reproduction extremely faithful to the original sound. - The Super Audio CD has two types; a 2 channel stereo disc and a Multi-channel disc which holds up to 6 independent channels. The multi-channel characteristic of the Super Audio CD features a speaker allocation system basically similar to the 5.1 channel output of current AV systems. Features of the player This player is designed to play back 2-channel and multi-channel Super Audio CDs, and conventional CDs, and provides the following features: - Mounted with a Discrete Dual Laser OpticalPickup, capable of reading a Super Audio CD or conventional CD depending on the exclusive wavelength. - Quicker track access performance enabled by an advanced servo mechanism. - A Multi-Channel Management function that allows you to adjust the multi-channel playback environment according to the allocation and size of your speakers. - A Super Audio D/A Converter and Direct Digital Sync System, which allows higher- quality sound reproduction. Others - A Super Audio CD can mark up to 255 tracknumbers. This feature applies to SCD- XE670. - The supplied remote is capable of controlling both the SCD-XE670 and a conventional Sony CD player. Table of Contents Parts Identification Front Panel ................................................ 4 Rear Panel ................................................. 4 Remote Control ......................................... 5 Getting Started Checking the supplied accessories ............ 6 Inserting Batteries Into the Remote .......... 6 Hooking Up the System ............................ 6 Playing CDs Compatible Disc Types ............................. 9 Playing a Disc ......................................... 10 Using the Display .................................... 11 Locating a Specific Track ....................... 14 Locating a Particular Point in a Track .... 15 Playing Tracks Repeatedly ...................... 16 Playing Tracks in Random Order (Shuffle Play) .................................................. 17 Creating Your Own Program (Program Play) ................................. 18 Listening to a Multi-channel Super Audio CD (Multi-channel management function) ........................................... 19 Additional Information Precautions .............................................. 23 Notes on Discs ........................................ 24 Troubleshooting ...................................... 25 Specifications .......................................... 25 US
