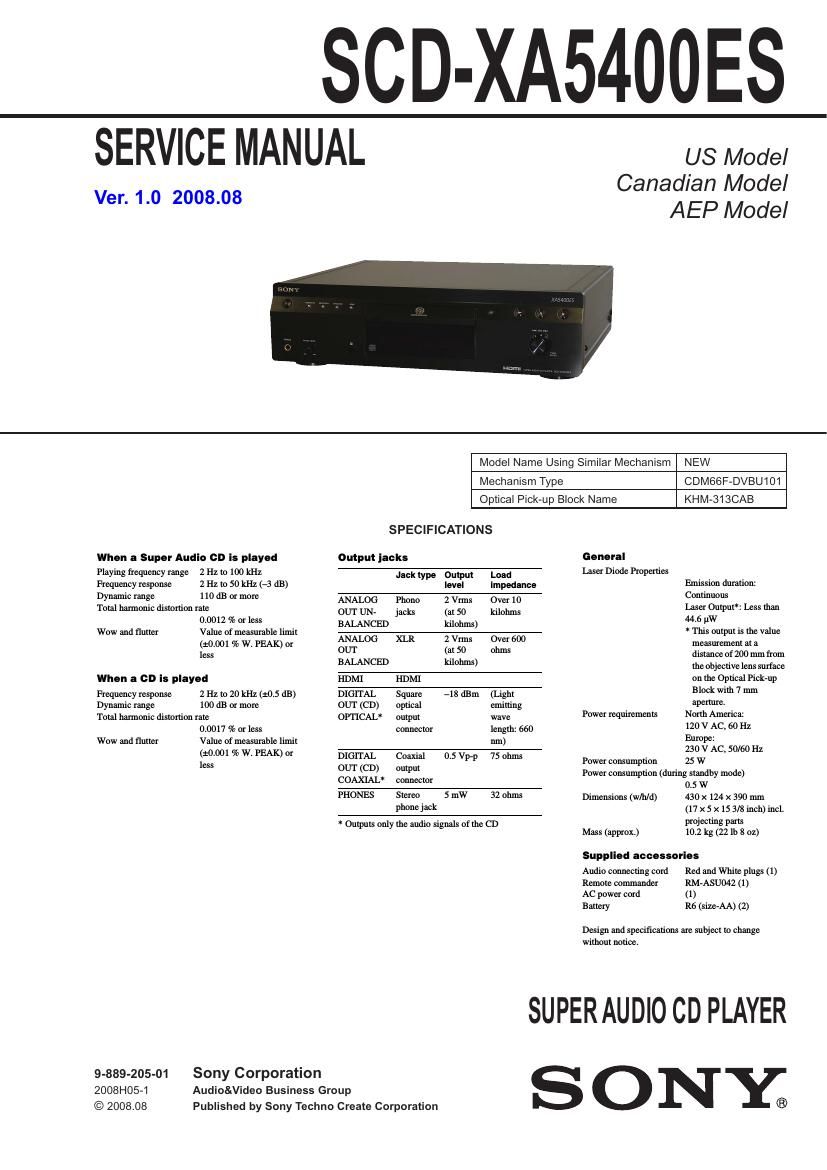

Sony SCD XA5400ES Service Manual
This is the 66 pages manual for Sony SCD XA5400ES Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sony SCD XA5400ES Service Manual (Ocr-read)
Page 1
SCD-XA5400ES 2 NOTES ON CHIP COMPONENT REPLACEMENT - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam-aged by heat. FLEXIBLE CIRCUIT BOARD REPAIRING - Keep the temperature of soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) 1.5 kΩ 0.15 μF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. SAFETY-RELATED COMPONET WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. CAUTION Use of controls or adjustments or performance of procedures other than those speci fi ed herein may result in hazardous radia- tion exposure. This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior.
Page 2
SCD-XA5400ES 3 1. SERVICING NOTES ............................................. 4 2. GENERAL .................................................................. 6 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 8 3-2. Case ........................................................................\ ......... 8 3-3. Loading Panel Assy ........................................................ 9 3-4. Front Panel Assy ............................................................. 9 3-5. MAIN Board ................................................................... 10 3-6. Mechanism Deck (CDM66F-DVBU101) ....................... 10 3-7. MOTOR Board, Motor (L) Assy (Loading) ................... 11 3-8. Base Unit Block .............................................................. 11 4. TEST MODE ............................................................ 12 5. ELECTRICAL ADJUSTMENT ........................... 16 6. DIAGRAMS 6-1. Block Diagram - SA-CD/CD SERVO Section - ............. 17 6-2. Block Diagram - HDMI Section - ................................... 18 6-3. Block Diagram - MAIN Section - ................................... 19 6-4. Block Diagram - PANEL, POWER SUPPLY Section - ........................... 20 6-5. Printed Wiring Board - MAIN Section (1/2) - ................ 22 6-6. Printed Wiring Boards - MAIN Section (2/2) - .............. 23 6-7. Schematic Diagram - MAIN Section (1/4) - ................... 24 6-8. Schematic Diagram - MAIN Section (2/4) - ................... 25 6-9. Schematic Diagram - MAIN Section (3/4) - ................... 26 6-10. Schematic Diagram - MAIN Section (4/4) - ................... 27 6-11. Printed Wiring Board - AUDIO Section (1/2) - .............. 28 6-12. Printed Wiring Boards - AUDIO Section (2/2) - ............ 29 6-13. Schematic Diagram - AUDIO Section (1/2) - ................. 30 6-14. Schematic Diagram - AUDIO Section (2/2) - ................. 31 6-15. Printed Wiring Boards - PANEL Section - ..................... 32 6-16. Schematic Diagram - DISPLAY Board - ........................ 33 6-17. Schematic Diagram - KEY Section - .............................. 34 6-18. Schematic Diagram - POWER Board - .......................... 35 6-19. Schematic Diagram - STANDBY Board - ...................... 36 6-20. Printed Wiring Boards - POWER Section - .................... 37 7. EXPLODED VIEWS 7-1. Case Section .................................................................... 47 7-2. DISPLAY Board Section ................................................ 48 7-3. Front Panel Section ......................................................... 49 7-4. MAIN Board Section ...................................................... 50 7-5. AUDIO Board Section .................................................... 51 7-6. Chassis Section ............................................................... 52 7-7. Mechanism Deck Section (CDM66F-DVBU101) .......... 53 7-8. Base Unit Section ............................................................ 54 8. ELECTRICAL PARTS LIST .............................. 55 Accessories are given in the last of the electrical parts list. TABLE OF CONTENTS
