Sony scd xe 600 service manual
This is the 38 pages manual for sony scd xe 600 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony scd xe 600 service manual (Ocr-read)
Page 1

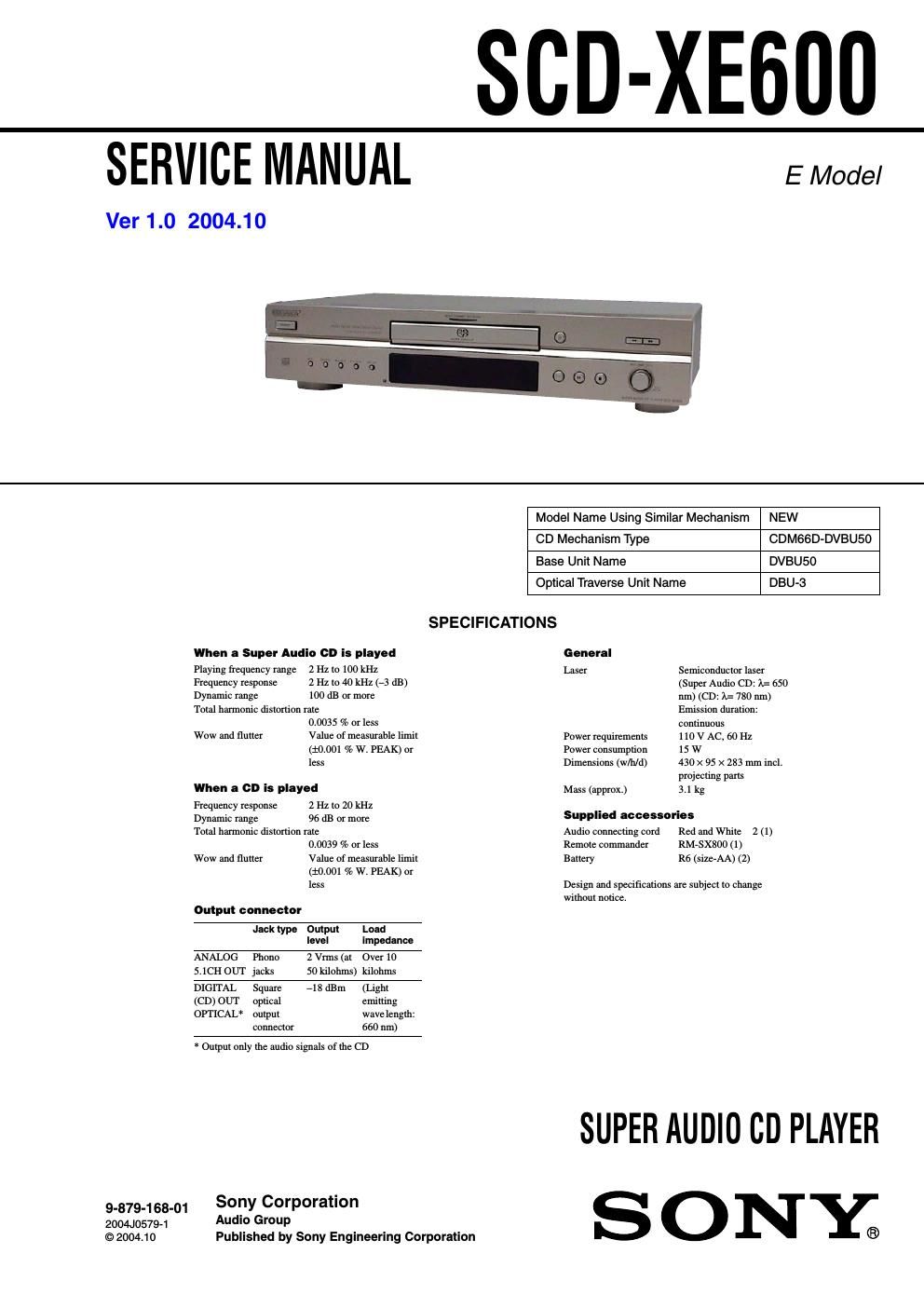

2 SCD-XE600 Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing -Keep the temperature of the soldering iron around 270 ˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior.CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. TABLE OF CONTENTS 1. SERVICING NOTES ......................................................... 3 2. GENERAL ............................................................................ 4 3. DISASSEMBLY 3-1. Disassembly Flow .............................................................. 6 3-2. Case (408226) ..................................................................... 6 3-3. Main Board ......................................................................... 7 3-4. Panel Loading ..................................................................... 7 3-5. Front Panel Block ............................................................... 8 3-6. CD Mechanism Deck (CDM66D-DVBU50) ..................... 8 3-7. Base Unit (DVBU50) ......................................................... 9 3-8. RF Board, Optical Traverse Unit ........................................ 9 3-9. Loading Board, Motor (L) Assy (Loading) (M151) ......... 10 4. TEST MODE ...................................................................... 11 5. DIAGRAMS 5-1. Block Diagram ................................................................. 12 5-2. Printed Wiring Board – RF Board – ................................. 14 5-3. Schematic Diagram – RF Board – .................................... 15 5-4. Printed Wiring Boards – MAIN Board – .......................... 16 5-5. Schematic Diagram – MAIN Board (1/4) – ..................... 17 5-6. Schematic Diagram – MAIN Board (2/4) – ..................... 18 5-7. Schematic Diagram – MAIN Board (3/4) – ..................... 19 5-8. Schematic Diagram – MAIN Board (4/4) – ..................... 20 5-9. Printed Wiring Boards – Display, Power Supply Section – .................................. 21 5-10. Schematic Diagram – Display, Power Supply Section – .................................. 22 6. EXPLODED VIEWS 6-1. Main Section ..................................................................... 28 6-2. Front Panel Section .......................................................... 29 6-3. CD Mechanism Deck Section (CDM66D-DVBU50) ....................................................... 30 6-4. Base Unit Section (DVBU50) .......................................... 31 7. ELECTRICAL PARTS LIST ......................................... 32
Page 2
3 SCD-XE600 The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. CLEANING OF OPTICAL PICK-UP LENS In cleaning the lens of optical pick-up, use the air blower. Never use a cotton swab for cleaning the lens of optical pick-up, which otherwise causes a trouble. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT HOW TO OPEN THE TRAY WHEN POWER SWITCH TURNS OFF SECTION 1 SERVICING NOTES A 2 Pull out the tray in the direction of arrow B. 1 Insert a flat-head screwdriver in to a hol e at the bottom, and rotate the cam (66) in the direction of arrow A. cam (66) B
