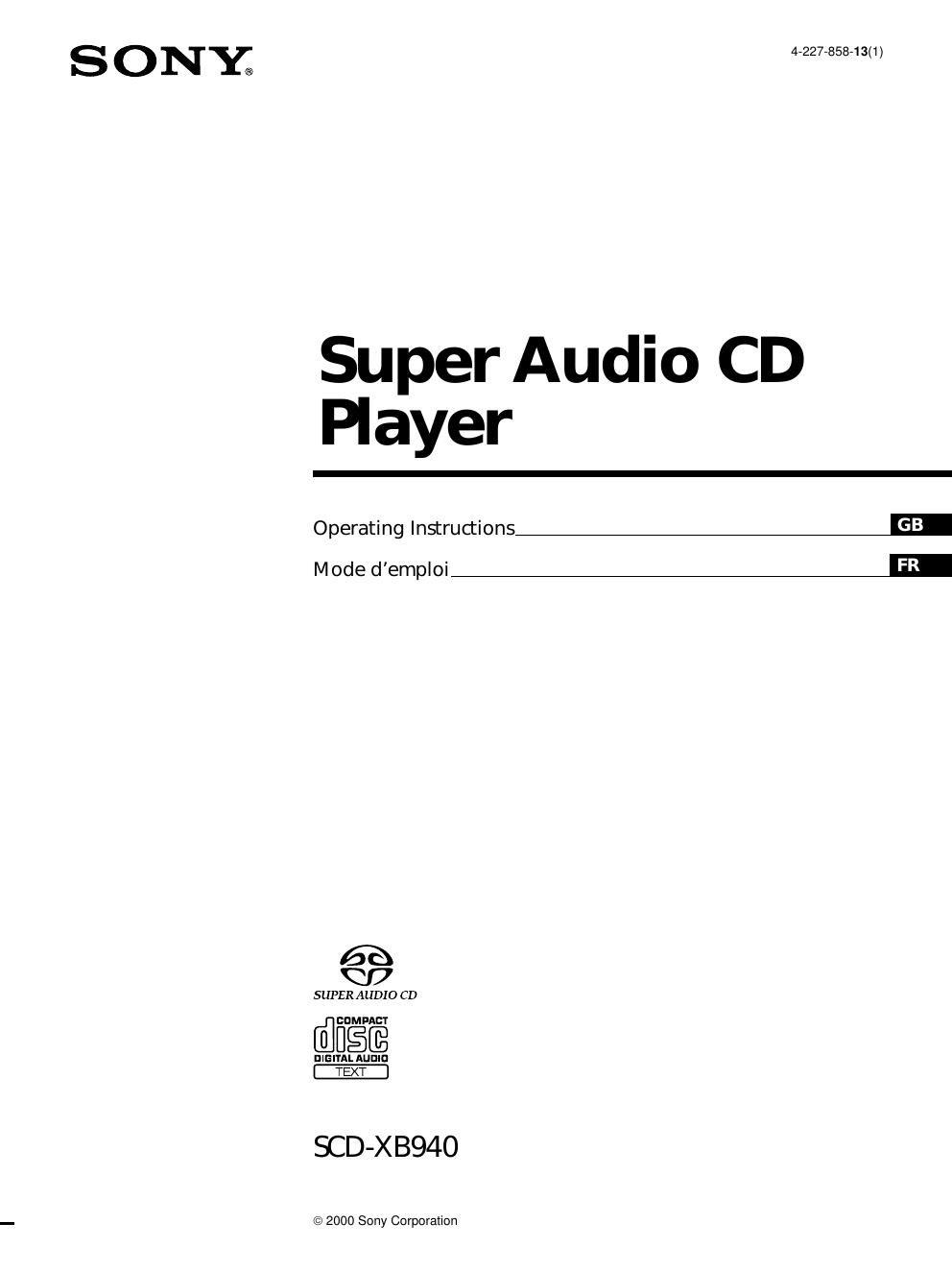

Sony scd xb 940 owners manual
This is the 48 pages manual for sony scd xb 940 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony scd xb 940 owners manual (Ocr-read)
Page 1
2GB WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Welcome! Thank you for purchasing the Sony Super Audio CD Player. Before operating the unit, please read this manual thoroughly and retain it for future reference. About This Manual The instructions in this manual are for model SCD-XB940. Conventions - Instructions in this manual describe the controls on the player. You can also use the controls on the remote if they have the same or similar names as those on the player. - The following icons are used in this manual: Indicates that you can do the task using the remote. Indicates hints and tips for making the task easier. Z z This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. The following caution label is located inside the unit.
Page 2
3GB GB Features Playback of the Super Audio CD recorded in the DSD format The DSD (Direct Stream Digital) format is the core technology of a Super Audio CD, allowing music reproduction that is extremely faithful to the original sound. The DSD format, using a 2.8224 MHz sampling frequency 64 times higher than that of a conventional CD, and the 1- bit quantization, makes possible recording of more than four times the data information of the PCM format which is used for a conventional CD. Different from the PCM format which performs data decimation and interpolation via digital filters, the DSD format adopts the simple playback process. In other words, the A/D converted 1-bit digital signal only passes through an analog low-pass filter before playback. As a whole, the DSD format achieves both a wide frequency range of, theoretically, over 100 kHz, and a wide dynamic range across the audible frequency range resulting in high-quality music reproduction faithful to the original sound. To play back a Super Audio CD recorded in the DSD format with exceptional quality, the SCD-XB940 employs a newly developed DSD decoder and a D/A converter system, as well as a chassis and loading mechanism especially designed for this unit. Playback of a conventional CD with higher quality The SCD-XB940 can also play back a conventional CD with higher quality than a conventional CD player. To provide enhanced quality, the SCD-XB940 employs various advanced technologies. For example, a 24-bit precision variable coefficient (V.C.) digital filter is provided for CD playback (see page 18). By selecting one of five filters which have different cutoff characteristics, you can adjust the tone quality in accordance with the music source or your audio system. Others - A Super Audio CD can mark up to 255 track/index numbers. This feature applies to SCD-XB940. - The supplied remote is capable of controlling either the SCD-XB940 and a conventional Sony CD player. T ABLE OF CONTENTS Getting Started 4 Before You Start the Hookup 4 Hooking Up the Audio Components 5 Location and Functions of Parts 6 Front Panel Parts Descriptions 6 Rear Panel Parts Descriptions 8 Remote Parts Descriptions 9 Playing Discs 10 Compatible Disc Types 10 Playing a Disc 11 Using the Display 12 Locating a Specific Track 14 Locating a Particular Point in a Track 15 Playing Tracks Repeatedly 16 Playing Tracks in Random Order (Shuffle Play) 17 Creating Your Own Programme (Programme Play) 17 Listening to a CD Using a Filter (Digital Filter Function) 18 Additional Information 20 Precautions 20 Notes on Discs 21 Troubleshooting 22 Specifications 22 Index 23
