SAT-A55 RN-Ysoz
SAT-B55 mm
SAN-18D3
-\L

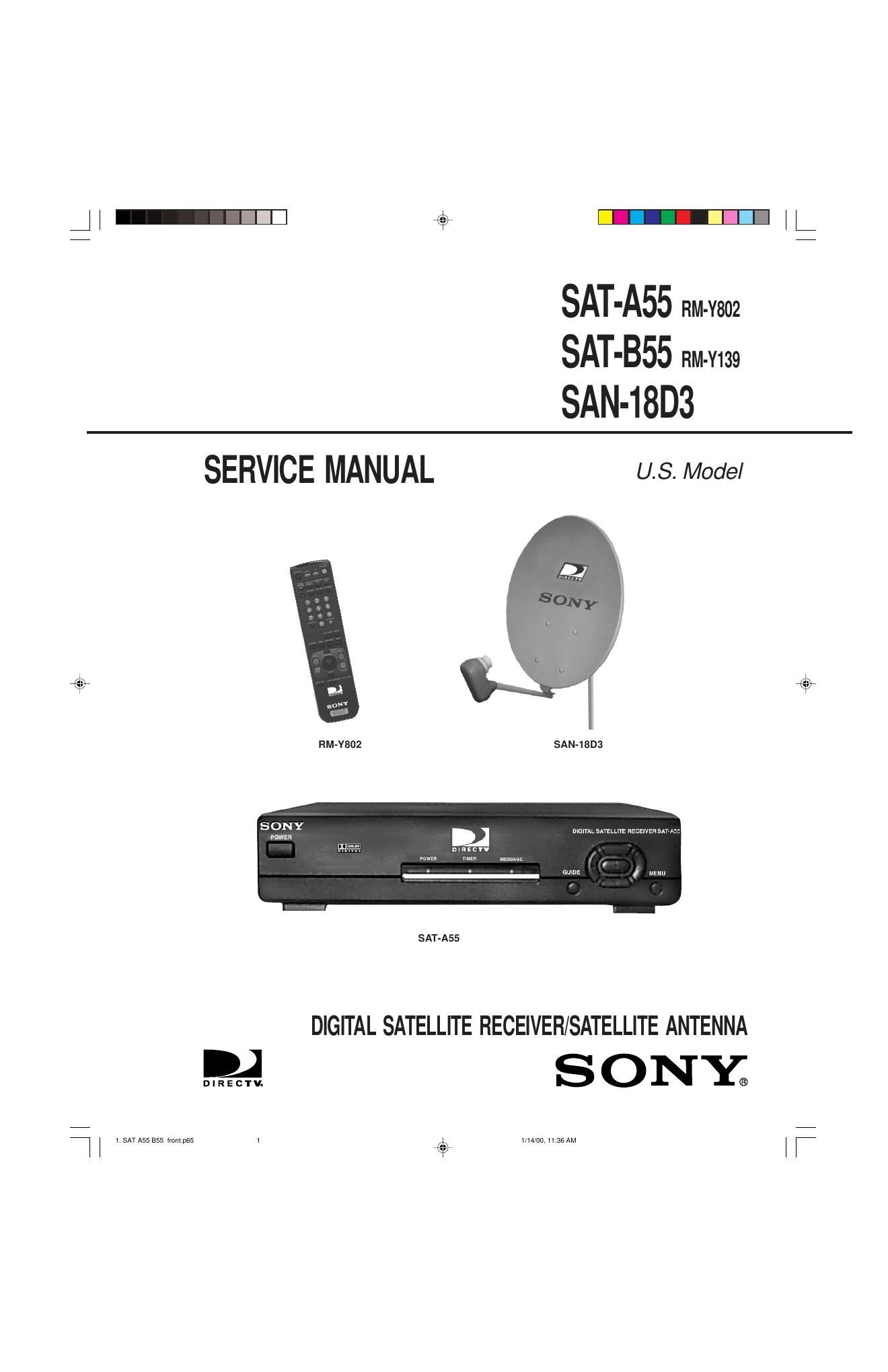

SERVICE MANUAL us. Model
RM-Y802 SAN-1803
SAT-A55
DIGITAL SATELLITE RECEIVER/SATELLITE ANTENNA
Page 2
SAT-A55/B55
SPECIFICATIONS
FOR DIGITAL SATELLITE RECEIVER:
Input Jacks UHF/VHF 75 ohm F-type
Satellite Antenna 75 ohm FAtype
RF Remote Antenna (SATAASS only)
AC Power (120V, 60 HZ)
Output Jacks S-VIDEO OUT 4-pin mini DIN
VIDEO (RCA jacks) (2)
AUDIO R/L (RCAjacks) (2)
VHF (SAD/UHF 75 ohms FrType
Low Speed Data, 97pm DASub Female
Telephone Line (R11 1)
VCR control (I) VCR Controller (or monoaural cable for Sony SmartFile VCRs)
Optical output (1) (SAT-A55 only)
Input Frequency 950 - 1450 Mhz / 950-2150 Mhz
Power Requirements 120V AC, 60 Hz
Power Consumption 20 W max.
Dimensions (w/h/d) 11 x 28 x 9 inches
280 x 66.5 x 228.5 mm
Weight SAT~A55 SATABSS
Set: 6.0 lb (2.7 kg) Set: 5.4 lb (2.5 kg)
Unit: 3.6: (1.6 kg) Unit: 3.4 lb (1.5 kg)
Supplied Accessories Remote Commander RM-YSOZ (SATAASS)
Remote Commander RMAYI39 (SAT-B55)
Size AA Batteries (2)
Access Card (I)
Audio/Video Cable (1)
SAVIDEO Cable (1) (SAT-A55 only)
Coaxial RF Cable (1)
RF Remote Antenna (1) (SAT7A55 only)
VCR Controller (1)
Telephone Cable (1)
AC Power Curd (l)
Optional Sony-brand DSS Accessories
Local TV Antenna ANJ-AAI
Installation Kit ANJ»DSZ
Amplifier EACADAI
Diplexer EACADDI
Voltage Switch ECAADVZ
RF Universal Remote Commander
Remote Control RMAYSOZ
Design and specifications subject to change without notice.
