Sony sa wpsd 5 service manual
This is the 60 pages manual for sony sa wpsd 5 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

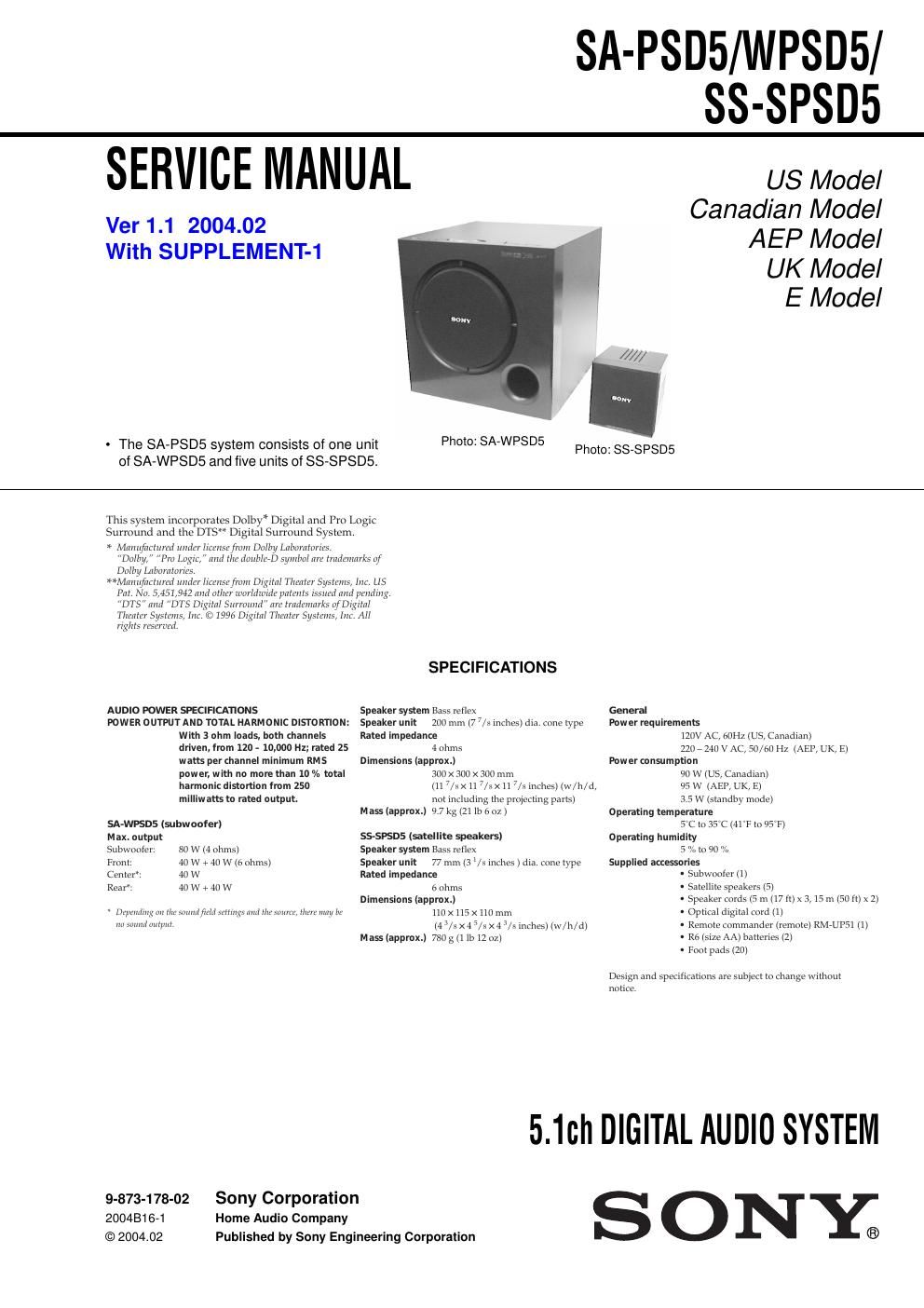

Extracted text from sony sa wpsd 5 service manual (Ocr-read)
Page 1
2 TABLE OF CONTENTS SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. SA-PSD5/WPSD5/SS-SPSD5 Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing - Keep the temperature of soldering iron around 270˚C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15 µF 1.5 kΩAC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. SAFETY CHECK-OUT ·················································2 1. GENERAL ·········································································3 2. DIAGRAMS ·······································································4 2-1. Circuit Boards Location························································4 2-2. Block Diagrams····································································5 2-3. Printed Wiring Board – Digital Section (Side A) – ··················································6 2-4. Printed Wiring Board – Digital Section (Side B) – ·················································7 2-5. Schematic Diagram – Digital Section (1/2) – ·······················8 2-6. Schematic Diagram – Digital Section (2/2) – ·······················9 2-7. Schematic Diagram – LCD Section – ···································10 2-8. Printed Wiring Board – LCD Section – ································11 2-9. Schematic Diagram – Key Section – ····································12 2-10. Printed Wiring Board – Key Section – ··································13 2-11. Schematic Diagram – IN/OUT Section – ·····························14 2-12. Printed Wiring Board – IN/OUT Section – ···························15 2-13. Schematic Diagram – Pre Amp Section – ·····························16 2-14. Printed Wiring Board – Pre Amp Section – ··························17 2-15. Schematic Diagram – Power Section (1/2) – ························18 2-16. Schematic Diagram – Power Section (2/2) – ························19 2-17. Printed Wiring Board – Power Section – ······························20 2-18. IC Block Diagrams·······························································21 2-19. IC Pin Function Description·················································23 3. EXPRODED VIEWS ·······················································25 3-1. SA-WPSD5 (FRONT SECTION)·········································25 3-2. SA-WPSD5 (AMP SECTION)·············································26 3-3. SS-SPSD5·············································································27 4. ELECTRICAL PARTS LIST ········································28
Page 2
3 SA-PSD5/WPSD5/SS-SPSD5 SECTION 1 GENERAL 18 GB Index to Parts and Controls Top panel/Front panel 1SOUND FIELD button (11) Selects the sound field. 2FUNCTION button (9) Selects the input signal. 3?/1 (POWER) switch and indicator (9) Turns on and off the power of the system. 4Display window (7, 9, 11, 14) Indicates the speaker setting, input signal, sound field mode, etc. 5MASTER VOL (volume) +/– buttons (9) Adjust the volume. 6MUTING button (9) Mutes the sound. 7 remote sensor (4) Accepts the remote control signals. Rear panel 8SPEAKER jacks (5) Connect to the supplied satellite speakers. 9AUDIO IN 1/2 jacks (6) Connect to the audio output of a TV, VCR, PSone, etc. 0DIGITAL IN OPTICAL 1/2 jacks (5, 6) Connect to the DIGITAL OUT (OPTICAL) jack of the PlayStation 2, DVD player, etc. qaBASS CONTROL knobs (10) Make fine adjustment of the bass sound. Refer to the pages indicated in parentheses for details. Subwoofer 1 2 34 5 6 7 8 9 q;qa ONLY FOR SS-SPSD5 FRONT R CENTERSPEAKERFRONT L REAR R REAR L 2 OPTICAL2 MID LOW HIGH MIN MAX LEVEL FREQUENCY 1 1 L R BASS CONTROL AUDIO INDIGITAL IN 19 GB Remote 1TV button (15) Turns the TV on and off. 2SHIFT button (7, 10, 14, 15) Switches the function of the buttons on the remote. 3TV CH +/– (TV/VIDEO) buttons (15) Changes the TV channel. To change the TV input, press – while pressing SHIFT. 4REAR +/– buttons (10) Adjust the rear speakers volume. 5CENTER +/– buttons (10) Adjust the center speaker volume. 6XPAUSE button (13) Pauses playing a disc. 7NPLAY button (13) Plays a disc.8./>PREV/NEXT buttons (13) Press to go to the next chapter or track, or to go back to the previous chapter or track. 9TITLE button (13) Displays the title menu on the TV screen. 0
