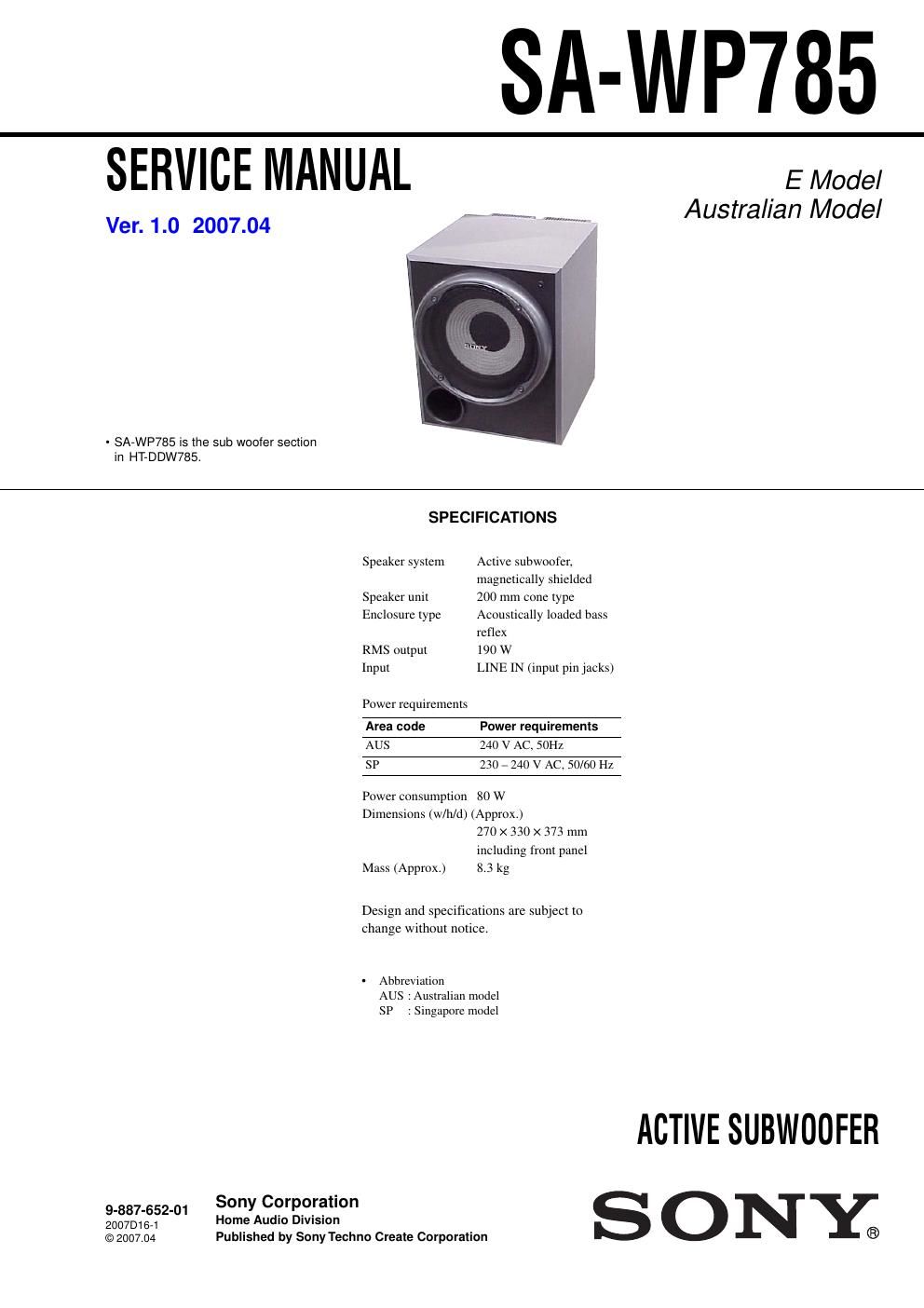

Sony sa wp 785 service manual
This is the 14 pages manual for sony sa wp 785 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony sa wp 785 service manual (Ocr-read)
Page 2
3 SA-WP785 SECTION 1 DIAGRAMS Note on Printed Wiring Boards: - X : parts extracted from the component side. - a : Through hole. - : P attern from the side which enables seeing. - Indication of transistor. Note on Schematic Diagrams: - All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. - 2 : nonflammable resistor. - 5 : fusible resistor. - All resistors are in Ω and 1/4 W or less unless otherwise specified. - C : panel designation. - A : B+ Line. - B : B– Line. -V oltages and dc with respect to ground under no-signal conditions. no mark : Power on -V oltages are taken with a VOM (Input impedance 10 M Ω). V oltage variations may be noted due to normal production tolerances. - Signal path. F : AUDIO -Ab breviation AU S: Australian model SP : Singapore model THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) - Circuit Boards Location B These are omitted. CE B These are omitted. CE Q Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. POWER TRANS board MAIN board INPUT CONTROL board SWITCH board LED board
