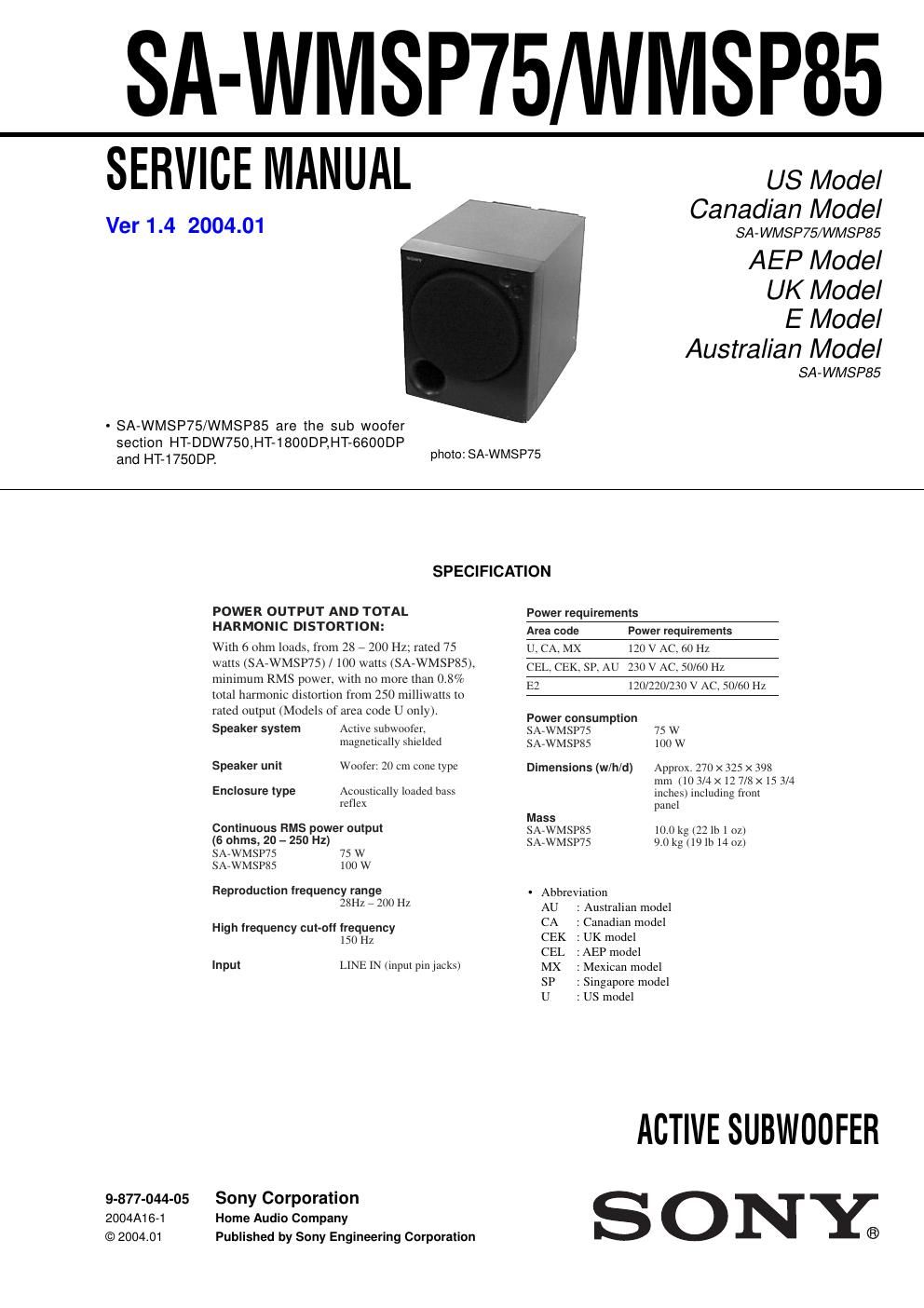

Sony sa wmsp 85 service manual
This is the 12 pages manual for sony sa wmsp 85 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony sa wmsp 85 service manual (Ocr-read)
Page 1
2 SA-WMSP75/WMSP85 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. Fig. A. Using an AC voltmeter to check AC leakage. 0.15 µF To Exposed Metal Parts on Set 1.5k Ω AC voltmeter (0.75V) Earth Ground Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder.
Page 2
3 3 SA-WMSP75/WMSP85 SECTION 1 DIAGRAMS Note on Printed Wiring Boards: -X: parts extracted from the component side. -Y: parts extracted from the conductor side. -b: Pattern from the side which enables seeing. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) Note on Schematic Diagram: -All capacitors are in µF unless otherwise noted. p: pF. 50 WV or less are not indicated except for electrolytics and tantalums. -2: nonflammable resistor. -5: fusible resistor. -All resistors are in Ω and 1/4 W or less unless otherwise specified. -C: panel designation. -A: B+ Line. -B: B– Line. -Voltages are dc with respect to ground under no-signal conditions. no mark : Power on -Voltages are taken with a VOM (Input impedance 10MΩ). Voltage variations may be noted due to normal preduction tolerances. -Signal path. F: AUDIO -Abbreviation CND : Canadian model. E2 : 120V AC Area in E model. MX : Mexican model. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 1-1. Circuit Board Location SWITCH BOARD CONTROL BOARDPOWER TRANS BOAR D INPUT(CONTROL) BOARD MAIN BOARD 1-2. IC Block Diagrams IC301 STK404-130S (MAIN Board) 2 3 1 4 5 6 7 8 9 10 11 12 13 SUB IC301 STK-404-100S (MAIN Board) 1 2 3 4 5 6 7 8 9 10 11 12 SUB
