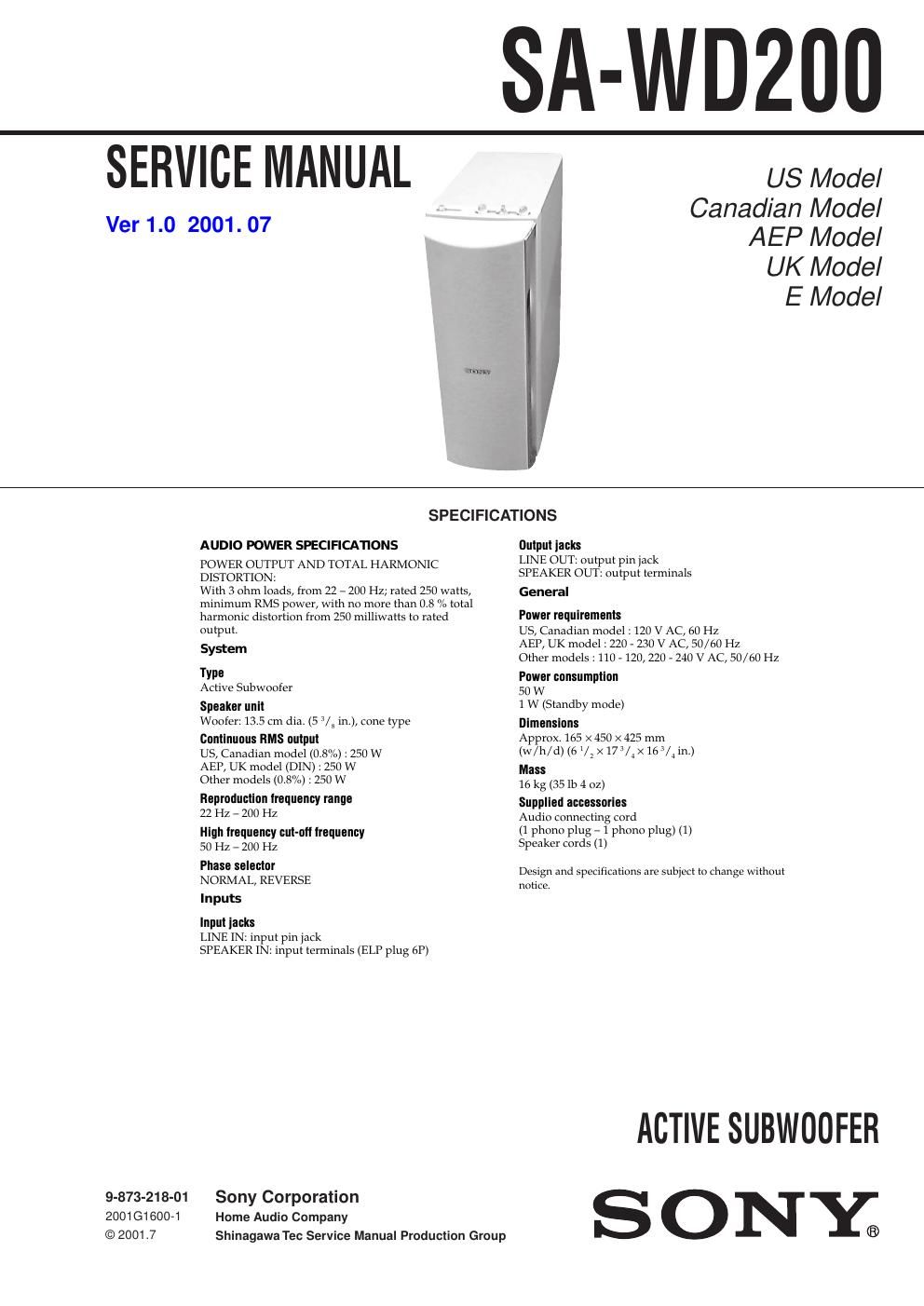

Extracted text from sony sa wd 200 service manual (Ocr-read)
Page 1
2 SA-WD200 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing - Keep the temperature of soldering iron around 270˚C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15 µF 1.5 kΩAC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage.
Page 2
3 3 SA-WD200 SECTION 1 DIAGRAMS 1-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS Note on Printed Wiring Board: - X : parts extracted from the component side. - a : Through hole. - b : Pattern from the side which enables seeing. - Indication of transistor B These are omitted. CE Q Note on Schematic Diagram: - All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. - All resistors are in Ω and 1/4 W or less unless otherwise specified. - 2 : nonflammable resistor - C : panel designation - A : B+ Line - B : B– Line - Voltages are dc with respect to ground under no-signal conditions. - Voltages are taken with a VOM (input impedance 10 M Ω). Voltage variations may be noted due to normal produc- tion tolerances. - Signal path F : AUDIO - Abbreviation CND : Canadian model MY : Malaysia model SP : Singapore model - Circuit Boards Location Note: The components identi- fied by mark \b or dotted line with mark \b are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque \b sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. INPUT board INPUT -SELECT board AC SELECT board (MY , SP ) POWER SUPPL Y board LED board PO WER-SW board CONTR OL board Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Par ts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. - IC Block Diagrams IC901 STR-F6426S (US, CND) 5 4 3 2 1 OSC DRIVE ICONST START REG. T.S.D. LATCH O.V.P. DS GNDVCCFB/OCP COMP.1 COMP.2 5 4 3 2 1 OSC DRIVE START REG. T.S.D. LATCH O.V.P. DS GNDVCCFB/OCP COMP.1COMP.2 IC901 STR-F6676 (AE P, UK, M Y, SP)
