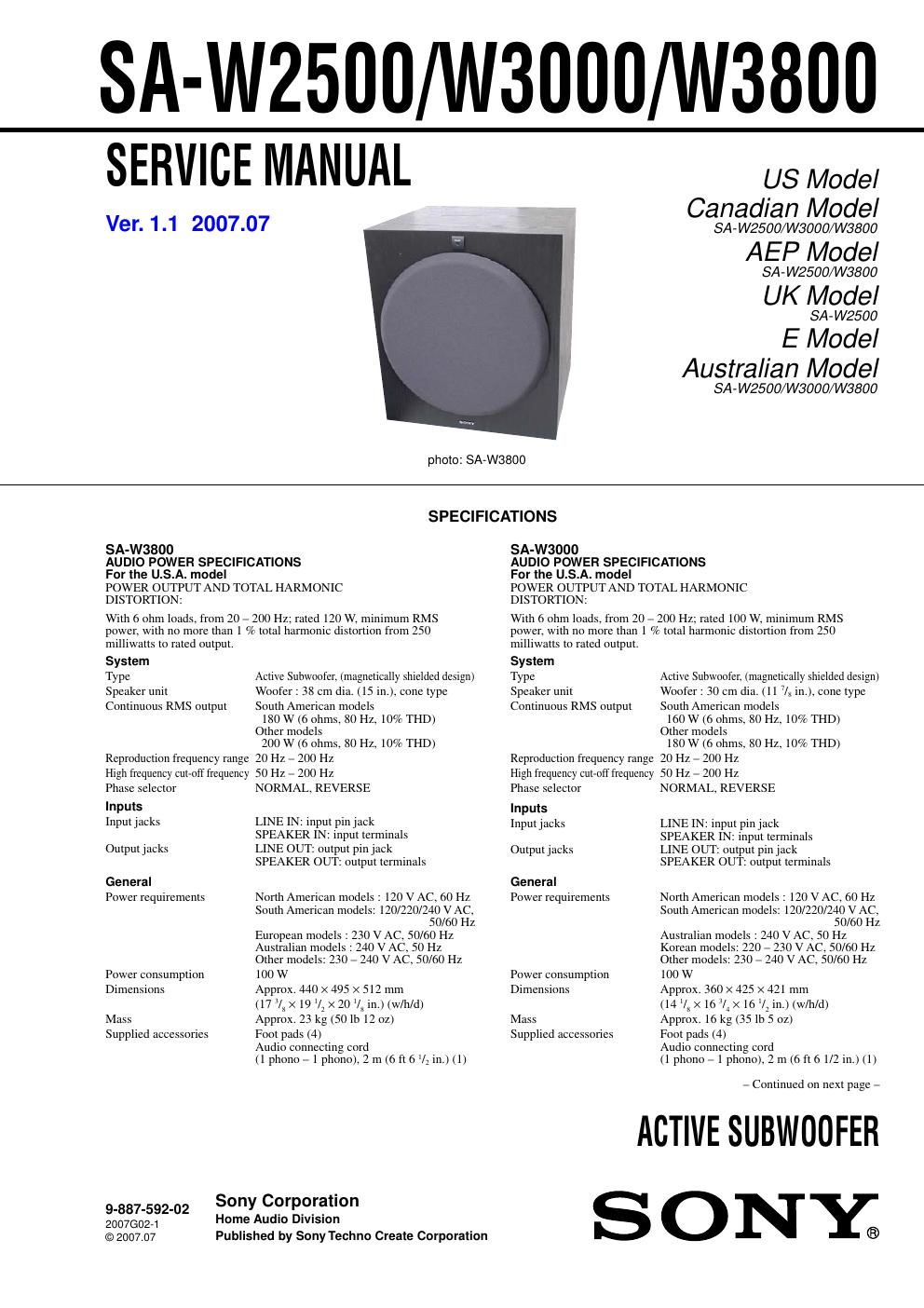

Page 1
SA-W2500/W3000/W3800
SERVICE MANUAL
Ver. 1.1 2007.07
US Model
Canadian Model
SA-W2500/W3000/W3800
AEP Model
SA- W2500/W3800
UK Model
SA - W25 00
E Model
Australian Model
SA-W2500/W3000/W3800
photo: SA-W3800
SPECIFICATIONS
SA-WSBOO
AUDIO POWER SPECIFICATIONS
For the U.S.A. model
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, from 20 - 200 Hz; rated 120 W, minimum RMS
power, with no more than 1 % total harmonic distortion from 250
milliwatts to rated output.
System
Type ACIIVE Subwoofer, (magnetically shielded design)
Speaker unit Woofer: 38 cm dia. (15 in.), cone type
South American models
180 W (6 ohms, 80 Hz, 10% THD)
Other models
200 W (6 ohms, 80 Hz, 10% THD)
Reproduction frequency range 20 Hz - 200 Hz
High frequency cut-off frequency 50 Hz - 200 Hz
Phase selector NORMAL, REVERSE
Continuous RMS output
Inputs
Input jacks LINE IN: input pin jack
SPEAKER IN: input terminals
Outputjacks LINE OUT: output pin jack
SPEAKER OUT: output terminals
General
North American models : 120 V AC, 60 Hz
South American models: 120/220/240 V AC,
50/60 Hz
European models ' 230 V AC, 50/60 Hz
Australian model : 240 VAC, 50 Hz
Other models: 230 - 240 V AC. 50l60 Hz
Power consumption 100 W
Dimensions Approx. 440 X 495 X 512 mm
(17 1, X 19 V2 x 20 V8 in.) (w/h/d)
Mass Approx. 23 kg (50 lb 12 oz)
Supplied accessories Foot pads (4)
Audio connecting cord
(1 phono -1phono),2 m (6 ft 6 'l; in.) (1)
Power requirements
Sony Corporation
9-887-592-02
2007G0271 Home Audio Division
© 200107 PUPIISI'led by SonyTechno Create Corporation
SA-W3000
AUDIO POWER SPECIFICATIONS
For the U.S.A. model
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, from 20 - 200 Hz; rated 100 W, minimum RMS
power. with no more than 1 70 total harmonic distortion from 250
milliwatts to rated output.
System
Type Active Subwoofer, (magnetically shielded design)
Speaker unit Woofer : 30 cm dia. (11 7/3 in.), cone type
Continuous RMS output South American models
160 W (6 ohms, 80 Hz, 10% THD)
Other models
180 W (6 ohms, 80 Hz, 10% THD)
Reproduction frequency range 20 Hz - 200 Hz
High frequency cut-OE frequency 50 Hz - 200 Hz
Phase selector NORMAL, REVERSE
Inputs
Inputjacks LINE IN: input pinjack
SPEAKER IN: input terminals
Outputjacks LINE OUT: output pinjack
SPEAKER OUT: output terminals
General
Power requirements North American models : 120 V AC, 60 Hz
South American models: 120/220/240 V AC,
50l60 I-Iz
Australian models : 240 VAC, 50 Hz
Korean model. ' 220 - 230 V AC, 50/60 Hz
Other models: 230 - 240 V AC, 50/60 Hz
Power consumption 100 W
Dimensions Approx. 360 X 425 X 421 mm
(14 lx ><16l4 X 16 '/2 in.) (wlhld)
Mass Approx. 16 kg (35 lb 5 oz)
Supplied accessories Foot pads (4)
Audio connecting cord
(1 phono -1phono),2 m (6 ft 6 1/2 in.) (1)
- Continued on next page -
ACTIVE suswoorin
S 0 NY.
Page 2
SA-W2500
AUDIO POWER SPECIFICATIONS
For the U.S.A. model
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, from 28 - 200 HZ; rated 60 W, minimum RMS power.
with no more than I 70 total harmonic distortion from 250 milliwatts to
rated output.
System
Type Active Subwoofer, (magnetically shielded design)
Speaker unit Woofer: 25 cm dia. (9 7/E in.). cone type
Continuous RMS output South American models
90 W (6 ohms, 80 Hz, 10% THD)
Other models
100 W (6 ohms, 80 Hz, 10% THD)
Reproduction frequency range 28 Hz - 200 Hz
High frequency cut-off frequency 50 Hz - 200 Hz
Phase selector NORMAL, REVERSE
Inputs
Input jacks LINE IN: input pin jack
SPEAKER IN: input terminals
Outputjacks SPEAKER OUT: output terminals
General
Power requirements North American models: 120 V AC, 60 Hz
South American models: 120/220/240 V AC,
50/60 Hz
European models: 230 VAC, 50/60 Hz
Australian mode 40 V AC, 50 Hz
Korean models: 220 - 230 VAC, 50/60 Hz
Taiwan model 110 V AC, 60HZ
Other models: 230 - 240 V AC. 50/60 Hz
Power consumption 70 W
Dimensions Approx. 290 X 350 X 391 mm
(11/,>
Supplied accessories Foot pads (4)
Audio connecting cord
(1 phono- 1 phone), 2 m (6 ft 6 /3 in.) (1)
Design and specifications are subject to change without notice.
SA-W2500NV3000NV3800
Ver. 1.1
SAFETY CHECK-OUT
(US model)
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal parts for AC leakage Check
leakage as described below.
LEAKAGE
The AC leakage from any exposed metal part to earth Ground
and from all exposed metal parts to any exposed metal part
having a return to chassis, must not exceed 0.5 mA (500
microampers). Leakage current can be measured by any one of
three methods.
1. A commercial leakage tester, such as the Simpson 229 or
RCA WTA540A. Follow the manufacturers instructions to
use these instruments.
2. A battery-operated AC milliammeter. The Data Precision
245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit
indication is 0.75 V, so analog meters must have an accurate
lowevoltage scale. The Simpson 250 and Sanwa SHA63Trd
are examples of a passive VOM that is suitable. Nearly all
battery operated digital multimeters that have a 2V AC range
are suitable. (See Fig. A)
To Exposed Metal
Parts on Set
A C
15kg voltmeter
(0. 75 V)
'=' Eanh Ground
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNINGl!
COMPONENTS IDENTIFIED BY MARK A 0R DOTTED
LINE WITH MARKAON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!!
LES COMPOSANTS IDENTIFIES PAFI UNE MARQUE A sun
LES DIAGRAMMES SCHEMATIQUES ET LA LISTE DES
PIECES SONT CRITIQUES POUR LA SECURITE DE
FONCTIONNEMENT. NE FIEMPLACEFI CES COMPOSANTS
QUE PAR DES PIECES SONY DONT LES NUMEROS SONT
DONNES DANS CE MANUEL ou DANS LES SUPPLEMENTS
PUBLIES PAR SONY.
