Sony sa w 11 303 305

This is the 10 pages manual for sony sa w 11 303 305.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 10

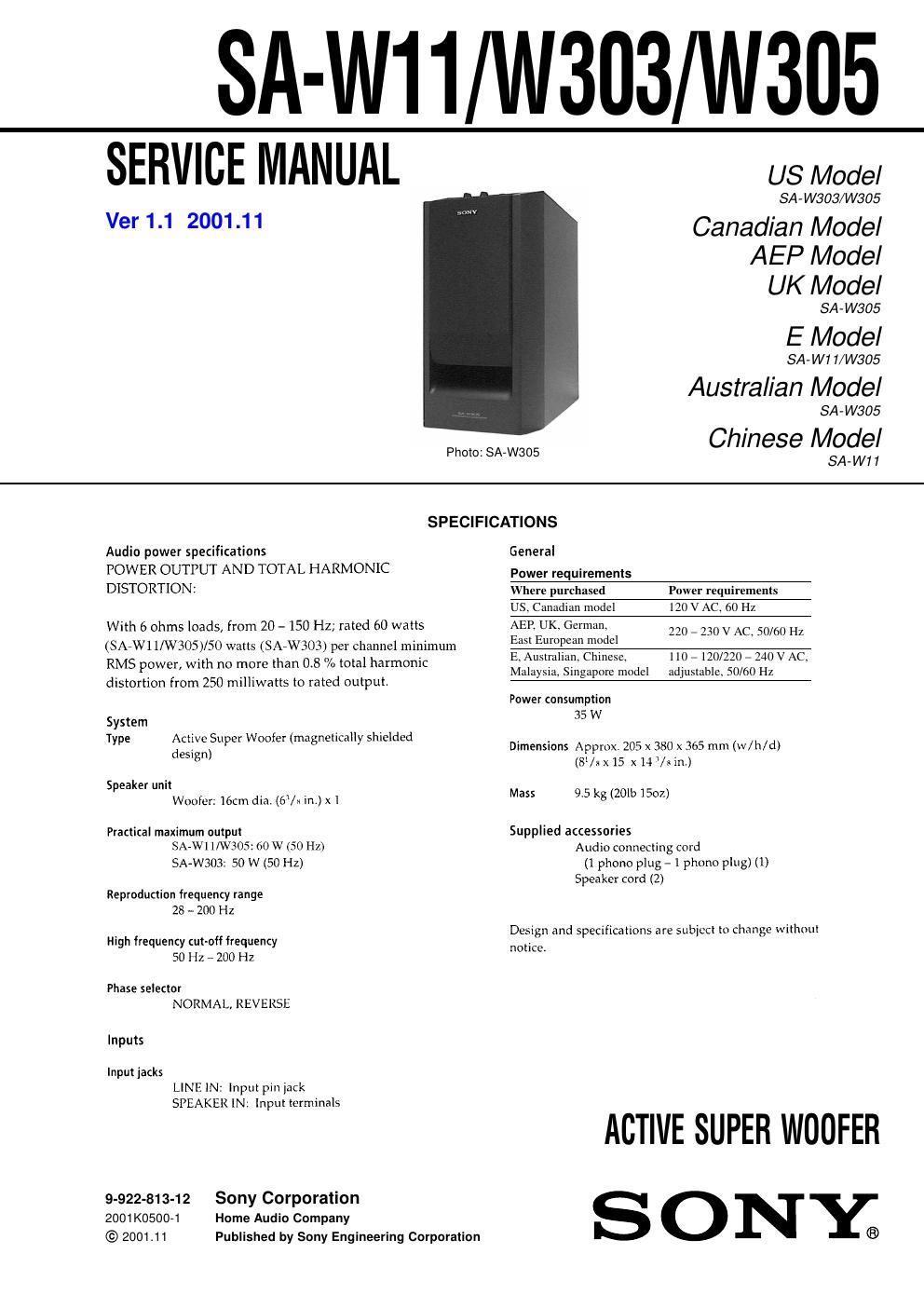

sony sa w 11 303 305

Extracted text from sony sa w 11 303 305 (Ocr-read)


Page 2

1 2 3 4 5 6 7 8 OVER LOAD DET F/F OFFSET DET LATCH/ AUTORESETV CC ON MUTE AC OFF DET V CC SECTION 1 GENERAL - Location of Controls REAR - IC Block Diagram IC302 µPC1237HA SECTION 2 DIAGRAMS LINE IN OUT IN OUT +– + – +– + – SPEAKER L R L R LINE IN/OUT jack SPEAKER IN/OUT terminal VOLTAGE SELECTOR switch (E, Australian, Singapore, Chinese, Malaysia) FRONT – 3 – – 4 – POWER switchLEVEL knobCUT OFF FREQ knobPHASE button Note on Schematic Diagram: -All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. -All resistors are in Ω and 1/4 W or less unless otherwise specified. -2: nonflammable resistor. -C: panel designation.Note on Printed Wiring Boards: -X: parts extracted from the component side. Abbreviation: AUS : Australian CH : Chinese CND : Canadian EE : East European G : German MY : Malaysia SP : Singapore -U: B+ Line. -V: B– Line. -Voltages are dc with respect to ground under no-signal conditions. -Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. -Signal path. F THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is each block.) Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified.Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.
