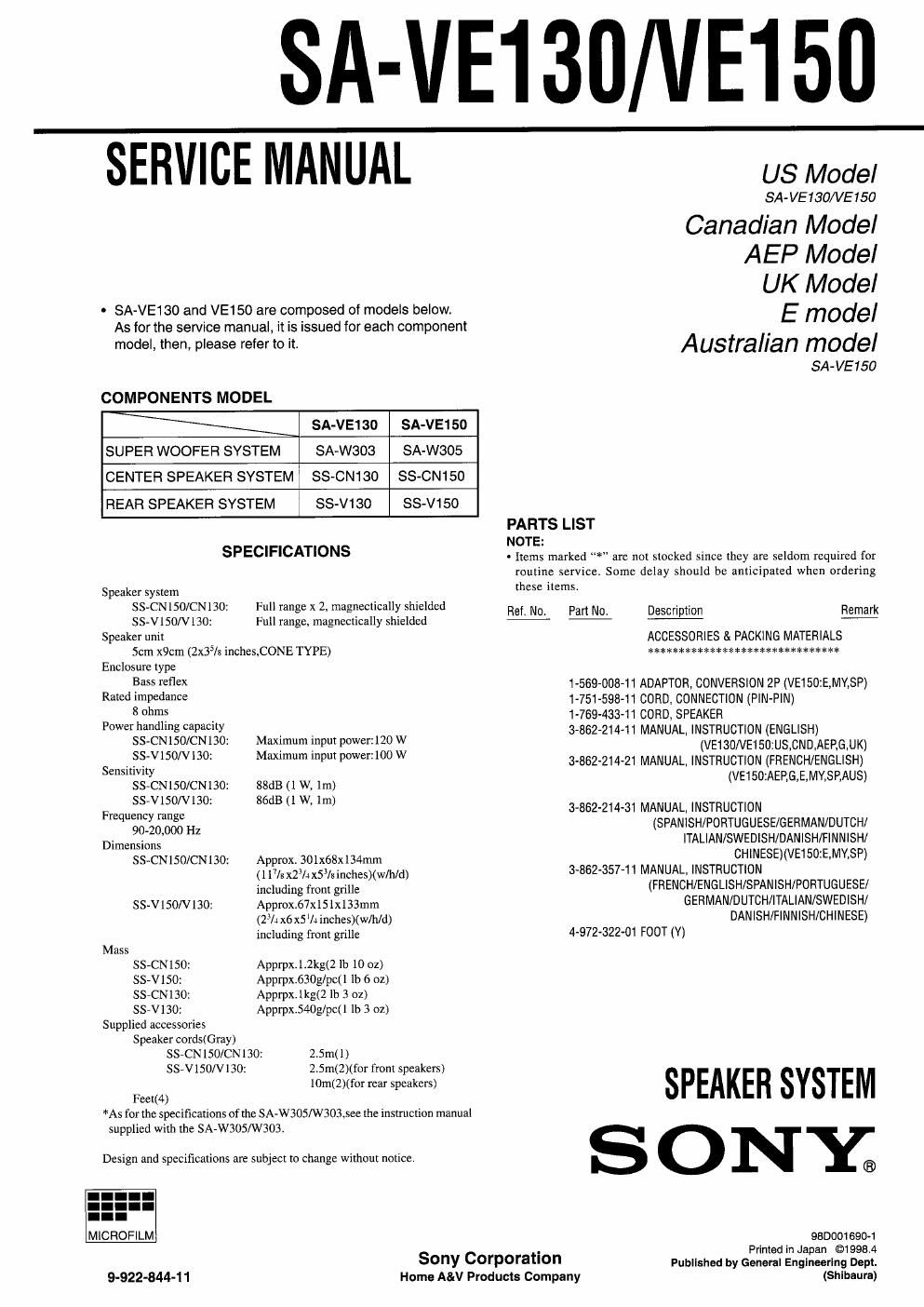

SA-VE130NE150

SERVICE NAN'UAL

- SA-VE130 and VE150 are composed of models below.
As for the service manual, it is issued for each component
model, then, please refer to it.

COMPONENTS MODEL
SA-VE130 SA-VE150
SU PER WOOFE R SYSTEM SA~W303 SA-W305
CENTER SPEAKER SYSTEM SS-CN1 30 SS-CN150
REAR SPEAKER SYSTEM SS-V130 SS-V150
SPECIFICATIONS
Speaker system

SS-CNl50/CN130:
SS-VlSO/Vl30:
Speaker unit
5cm x90rn (2x35/r inches,CONE TYPE)
Enclosure iype
Buss reflex
Rated impedance
8 ohms
Power handling capacity
SS-CNISO/CN130:
SS-VlSO/VISO:
Sensitivity
SS SSAVISONISO:
Frequency range
90-20,000 Hz
Dimensions
SS~CN150ICN1301

Full range x 2, magnectically shielded
Full range, magneclically shielded

Maximum input power: 120 W
Maximum input power: 100 W

BSdB (I W, 1m)
86d}; (1 W, 1m)

Approx. 301x68x134mm
(l17/3xZ3/4x53/sinches)(w/h/d)
including front grille

SS-VlSO/V I 30: Approx.67x15lxl33mm
(21/4 x6 x5 '/4 inches)(w/h/d)
including from grille
Mass
SSvCNISO: Apprpxrl.2kg(21h II) 02)
SS-VlSO: ApprpxfiflOg/pcfl lb 6 oz)
SS-CN130: Apprpx. lkg(2 lb 3 oz)
SSVV130: Apprpxr540g/pcil lb 3 oz)
Supplied accessories
Speaker cordsiGray)
SS-CN 150/CN130: 2.5m( l)

SSAVISO/VIBO: 2.5m(2)(for from speakers)
10m(2)(for rear speakers)

Feet(4)

*As for the specifications of the SA-W305/W303,see the instruction manual

supplied with [he SA-W3Il5/W303.

Design and specifications are subject to change wiLhout notice.

MICROFILM

Sony Corporation
Home A&V Products Company

9-922-844-1 1

US Model

SA-VE130/VE150

Canadian Model
AEP Model

UK Model

E model

Australian model
SA-VE 150
