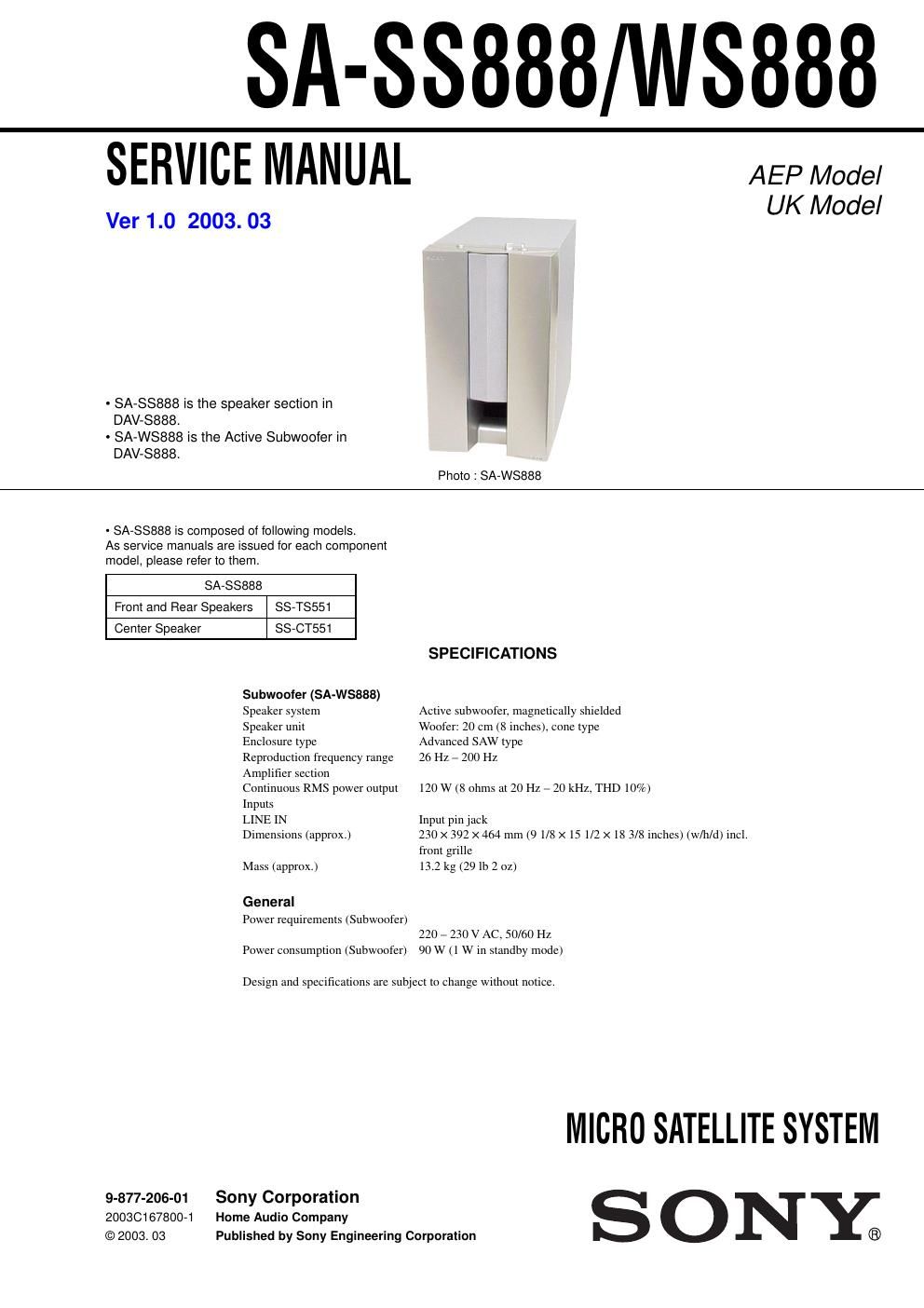

Sony sa ss888 ws888 pwramp
This is the 14 pages manual for sony sa ss888 ws888 pwramp.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony sa ss888 ws888 pwramp (Ocr-read)
Page 1
2 SA-SS888/WS888 TABLE OF CONTENTS 1.DIAGRAMS 1-1. Circuit Boards Location (SA-WS888) ............................ 3 1-2. Printed Wiring Boards (SA-WS888) .............................. 5 1-3. Schematic Diagram (SA-WS888) ................................... 6 2.EXPLODED VIEWS 2-1. Front Panel Section (SA-WS888) ................................... 7 2-2. Rear Panel Section (SA-WS888) .................................... 8 3.ELECTRICAL PARTS LIST ......................................... 9 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Page 2
3 SA-SS888/WS888 1-1. Circuit Boards Location (SA-WS888) SECTION 1 DIAGRAMS AUTO POWER board MAIN board POWER board LED board POWER SWITCH board CONTROL board
