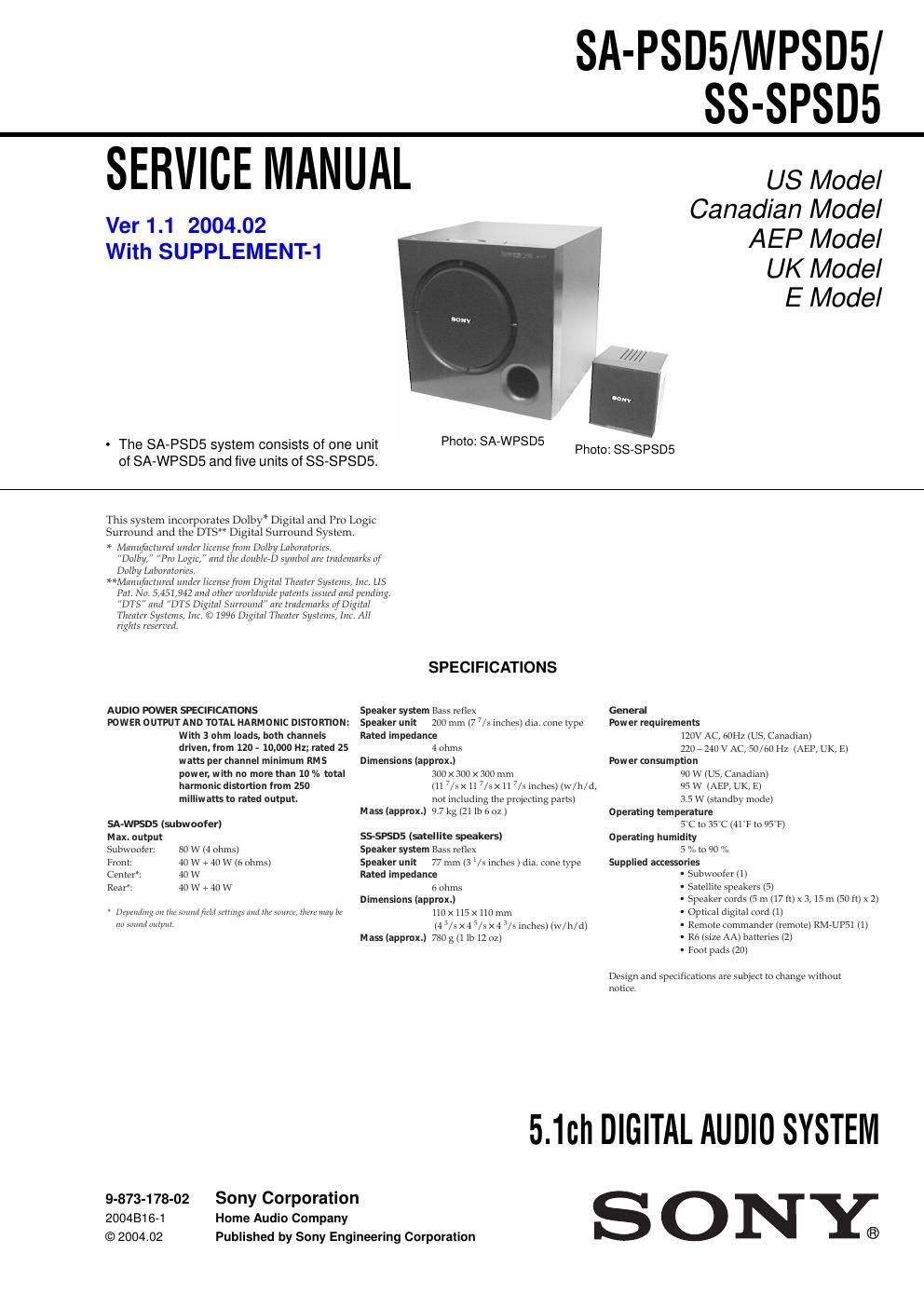

Sony sa psd 5 service manual

Page 2

3 SA-PSD5/WPSD5/SS-SPSD5 SECTION 1 GENERAL 18 GB Index to Parts and Controls Top panel/Front panel 1SOUND FIELD button (11) Selects the sound field. 2FUNCTION button (9) Selects the input signal. 3?/1 (POWER) switch and indicator (9) Turns on and off the power of the system. 4Display window (7, 9, 11, 14) Indicates the speaker setting, input signal, sound field mode, etc. 5MASTER VOL (volume) +/– buttons (9) Adjust the volume. 6MUTING button (9) Mutes the sound. 7 remote sensor (4) Accepts the remote control signals. Rear panel 8SPEAKER jacks (5) Connect to the supplied satellite speakers. 9AUDIO IN 1/2 jacks (6) Connect to the audio output of a TV, VCR, PSone, etc. 0DIGITAL IN OPTICAL 1/2 jacks (5, 6) Connect to the DIGITAL OUT (OPTICAL) jack of the PlayStation 2, DVD player, etc. qaBASS CONTROL knobs (10) Make fine adjustment of the bass sound. Refer to the pages indicated in parentheses for details. Subwoofer 1 2 34 5 6 7 8 9 q;qa ONLY FOR SS-SPSD5 FRONT R CENTERSPEAKERFRONT L REAR R REAR L 2 OPTICAL2 MID LOW HIGH MIN MAX LEVEL FREQUENCY 1 1 L R BASS CONTROL AUDIO INDIGITAL IN 19 GB Remote 1TV button (15) Turns the TV on and off. 2SHIFT button (7, 10, 14, 15) Switches the function of the buttons on the remote. 3TV CH +/– (TV/VIDEO) buttons (15) Changes the TV channel. To change the TV input, press – while pressing SHIFT. 4REAR +/– buttons (10) Adjust the rear speakers volume. 5CENTER +/– buttons (10) Adjust the center speaker volume. 6XPAUSE button (13) Pauses playing a disc. 7NPLAY button (13) Plays a disc.8./>PREV/NEXT buttons (13) Press to go to the next chapter or track, or to go back to the previous chapter or track. 9TITLE button (13) Displays the title menu on the TV screen. 0
