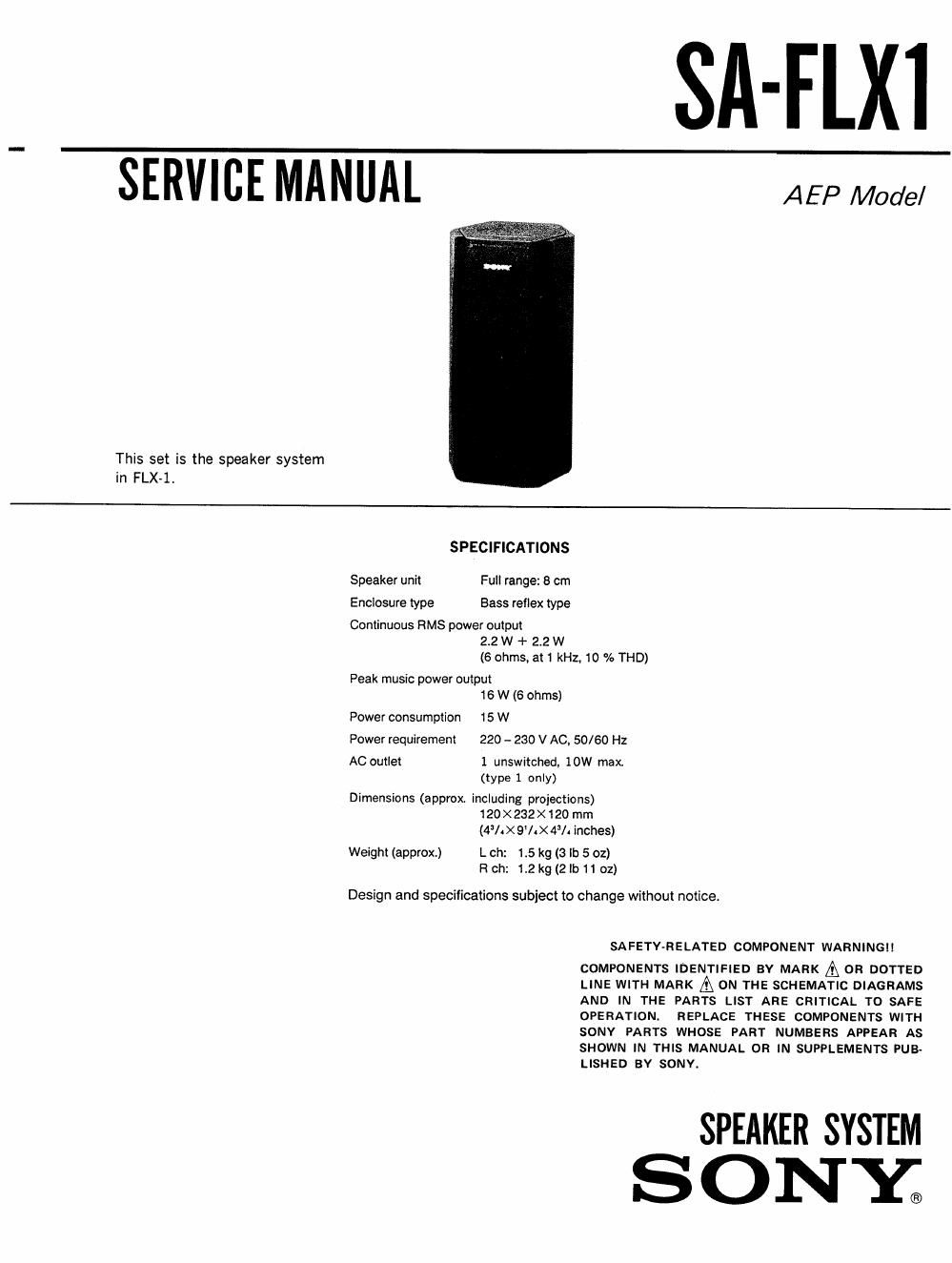

Page 1
SA-FLXI
SERVICE MANUAL AEP Model
This set is the speaker system
in FLX-l.
SPECIFICATIONS
Speaker unit Ful| range: 8 cm
Enclosure Type Bass reflex type
Continuous RMS power output
2.2 W + 2.2 W
(6 ohms, at 1 kHz, 10 % THD)
Peak music power output
16 W (6 ohms)
Power consumption 15 W
Power requirement 220 - 230 V AC, 50/60 Hz
AC outlet 1 unswitched, 10W max
(type 1 only)
Dimensions (a pprox including projections)
120x232>< 120 mm
(All. X 9% X 4% inches)
Weight (approx) L ch: 15 kg (3 lb 5 oz)
R ch: 1.2 kg (21b 11 02)
Design and specifications subjeci to change without notice.
SAFETY~RELATED COMPONENT WARNING
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
SPEAKER SYSTEM
ONY®
Page 2
SA-FLX1
SECTION 1
GENERAL
This section is extracted from
instruction manual.
Emplacement des
commandes.
, Locationoficontrols
Speakers
Left speaker
Enceinte gauche
Altavoz izquierdo
Altitalante esquerdo
Right speaker
Enceinte droite
Altavoz derecho
Altitalante direito
Refer to the pages indicated in O for details Pour ies details, priere de consulter les pages indiquées dans un
cercle 0.
LINE IN jack 9 Prise dentrée de ligne (LlNE W) G
Power indicator ® IE Témoin d'alimentation @
@ BALANCE control a IE Réglage de léquilibre (BALANCE) @
SPEAKER OUTPUT jack 9 ill Prise de sortie de haut-parleur (SPEAKER OUTPUT) @
CE AC OUTLET (type 1 only) 9 {1i Prise secteur (AC OUTLET) (type 1 uniquement) e
[E] Power cord [El Cordon dalimentation
Note
Differences in connection according to countries
There are two types of FLX»1 and each has a particular
connection method,
Type 1 :The AC power cord (coiled cord) of the main unit is con-
nected to the AC OUTLET of the left speaker, and the cord AEl
of the left speaker is connected to a wall outlet.
Type 2 t The AC power cords (straight cords) of both the main unit
and the left speaker must be connected to wall outlets
independently since no AC outlet is supplied on the rear of
the left speaker.
AEZ
The type of your FLX-l depends on where it was purchased.
Type 1 : Belgium, France, ltaly, Netherlands
Type 2: Austria, Denmark, Finland, Norway Portugal, Spain,
Sweden. Switzerland
