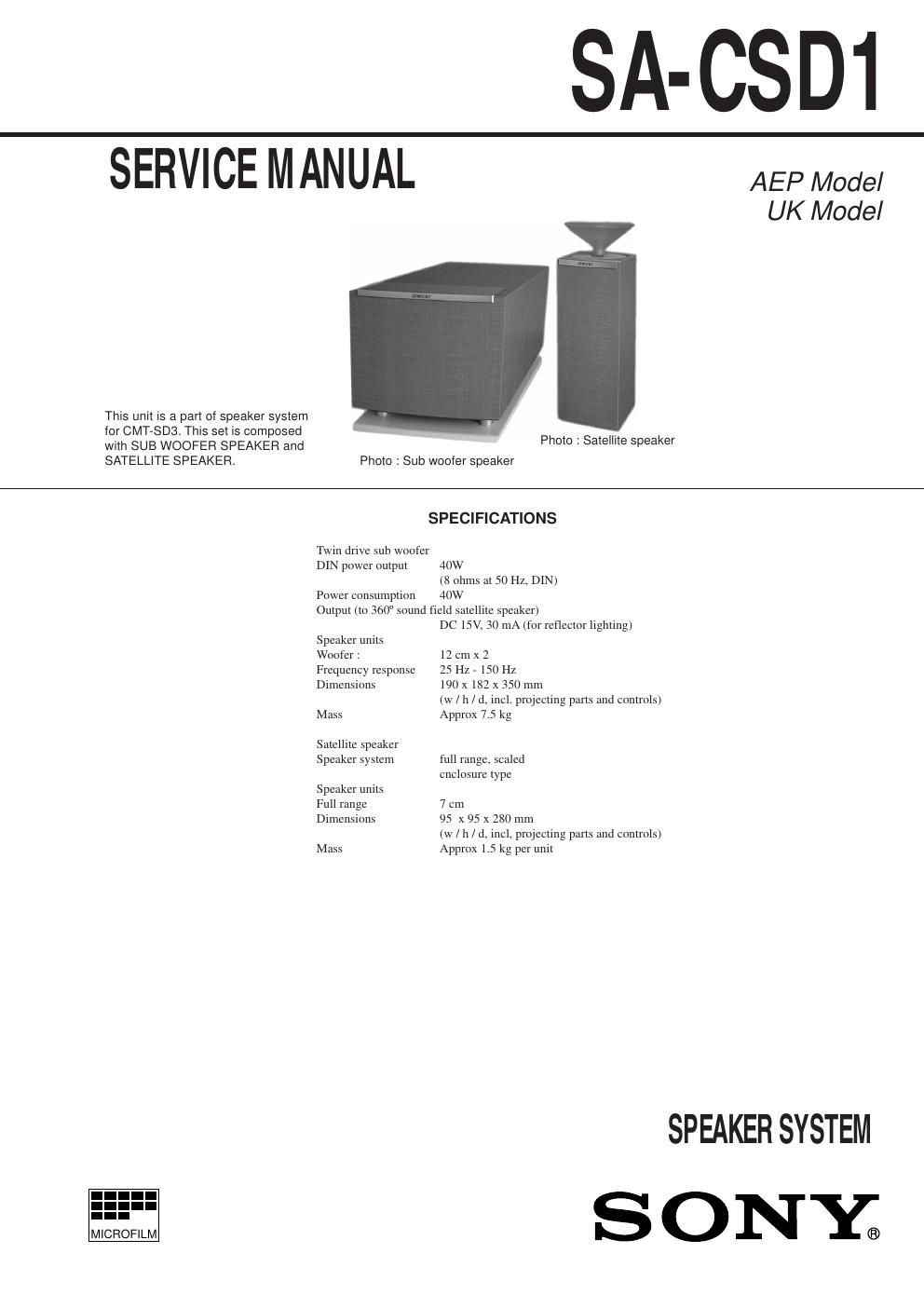

Sony sa csd 1 service manual
This is the 4 pages manual for sony sa csd 1 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony sa csd 1 service manual (Ocr-read)
Page 2
3 2. SATELLITE SPEAKER SECTION SP903 Supplied accessory not supplied #5 #5#7#7 #7 #7 #7 #8 #8 #8#8 #8 #8 515253 575859 606162 545556 VR101 VR102 VR103 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 1-694-585-11 TERMINAL BOARD 52 4-221-321-01 COVER, BOTTOM 53 1-418-526-11 CONTROL BLOCK, LIGHT 54 4-221-320-01 BOX (SATELLITE) *55 4-221-325-01 ORNAMENT (FRONT) 56 4-942-636-21 EMBLEM (NO. 3.5), SONY 57 1-418-525-11 LED BLOCK 58 2-125-479-01 NUT (M12), HEXAGON 59 4-221-322-01 NET, GRILLE 60 4-221-323-01 COVER, TOP61 4-221-324-01 BAR, LIGHT 62 4-221-342-01 REFLECTOR SP903 1-529-450-11 SPEAKER VR101 1-225-880-11 RES, BAR, CARBON 10K VR102 1-225-880-11 RES, BAR, CARBON 10K VR103 1-225-880-11 RES, BAR, CARBON 10K
