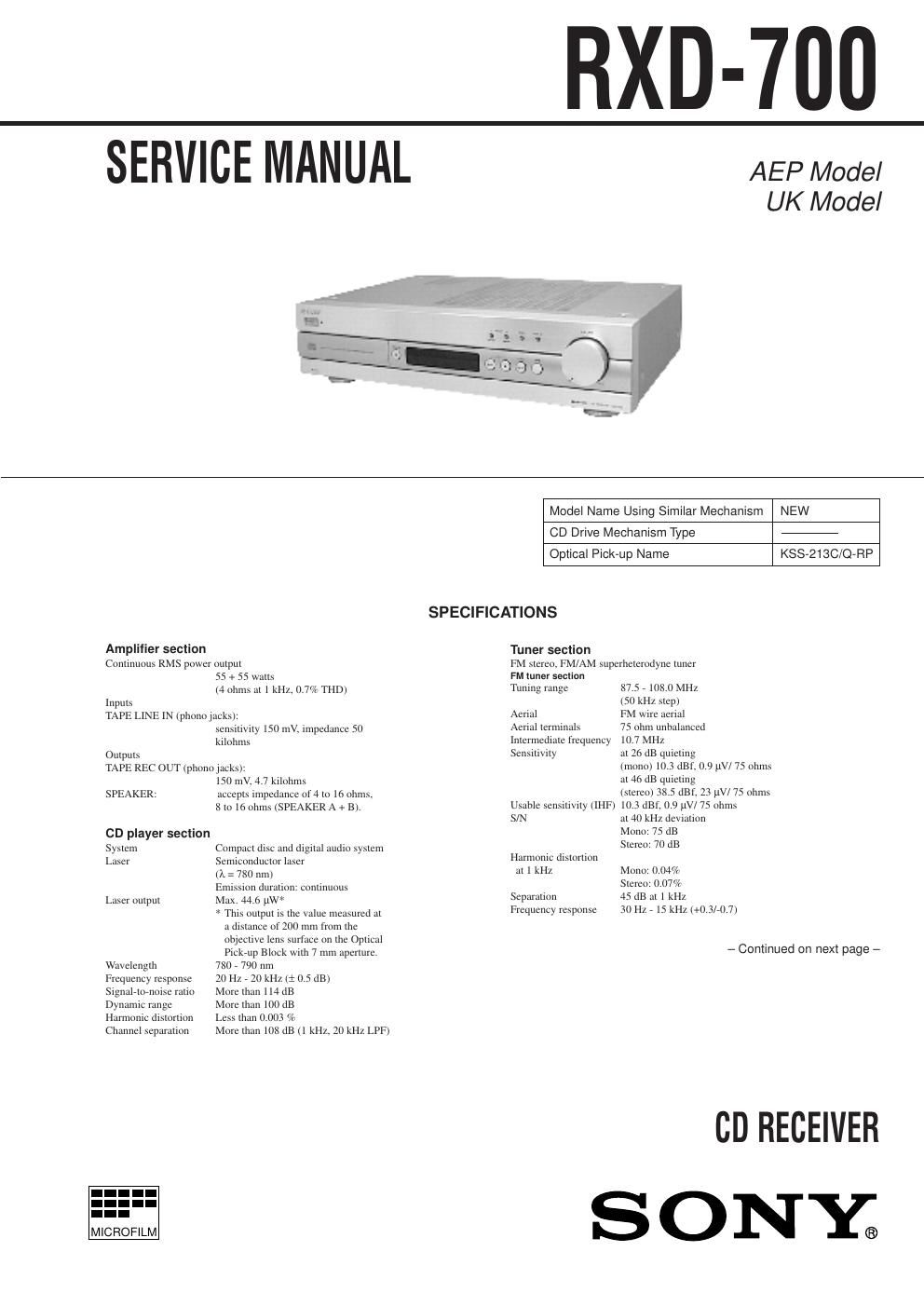

Sony rxd 700 service manual
This is the 44 pages manual for sony rxd 700 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony rxd 700 service manual (Ocr-read)
Page 1
Ð 2 Ð AM tuner sectionTuning range 531 - 1,602 kHz (9 kHz step) Aerial AM loop aerial, External aerial terminals Intermediate frequency 450 kHz Usable sensitivity 300 mV/m S/N 50 dB (50 mV/m, 999 kHz) Harmonic distortion 0.3 % (50 mV/m, 400 Hz) GeneralPower requirements 230 V AC, 50/60 Hz Power consumption 150 watts Dimensions (w/h/d) Approx. 440 ´ 110 ´ 340 mm (17 3/8 ´ 4 3/8 ´ 13 1/2 in) incl. projecting parts and controls Mass Approx. 7.4 kg (16 lb. 5 oz.) Supplied accessories Remote commander (remote) RM-U301 (1) R6 (size AA) batteries (2) AM loop aerial (1) Design and specifications are subject to change without notice. SERVICE NOTE CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on Chip Component Replacement ·Never reuse a disconnected chip component. ·Notice that the minus side of a tantalum capacitor may be damaged by heat. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. NOTES ON PICK-UP FLEXIBLE BOARD The pick-up flexible board in this set is secured to the optical pick- up with an adhesive tape. Once the tape is removed, an adhering force becomes weak, and it cannot be reused. Therefore, if the optical pick-up is replaced, replace also the pick- up flexible board with a new one. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. NOTES ON CLEANING THE OBJECTIVE LENS Apply CD lens cleaner B-4 (Part No.:J-2501-000-A) to cotton swabs (narrow type) (Part No.:J-2501-023-A) to be lightly wet. Use a force (about 5 g (0.18 oz)) to make the objective lens in contact with the bottom lightly, and clean the lens by spirals as following below. Replace the cotton swab and repeat this cleaning two or three times. Notes: Do not force to push the objective lens. Otherwise, the plate spring supporting the objective lens will be bent, causing a deteriorated RF waveform. Never touch anything other than the objective lens. Otherwise, a significant deterioration occurs in the RF waveform. cotton swabs objective lens 2-axis actuato r 2-axis cover slide base surface of objective lens
Page 2
Ð 3 Ð TABLE OF CONTENTS 1. GENERAL Getting Started Unpacking ........................................................................... 4 Hooking Up the System ...................................................... 4 Setting the Clock ................................................................ 5 Presetting Radio Stations .................................................... 5 Basic Operations Selecting a Source .............................................................. 6 Playing a CD ....................................................................... 6 Receiving Preset Stations ................................................... 7 2. DISASSEMBLY 2-1. Cabinet (Top) ..................................................................... 8 2-2. Front Panel (1) ................................................................... 8 2-3. Front Panel (2) ................................................................... 9 2-4. Front Board ........................................................................ 9 2-5. Mechanism Block ............................................................ 10 2-6. Chassis (Back) .................................................................. 10 2-7. Power Transformer ........................................................... 11 2-8. Main Board ...................................................................... 11 3. ELECTRICAL ADJUSTMENTS FM Section ........................................................................... 12 AM Section ........................................................................... 13 Audio Section ....................................................................... 13 Front Section ........................................................................ 13 CD Section ........................................................................... 13 4. DIAGRAMS 4-1. Block Diagram ÐCD SectionÐ .......................................... 15 4-2. Block Diagram ÐTuner SectionÐ ...................................... 17 4-3. Circuit Boards Location ................................................... 19 4-4. Printed Wiring Boards ÐCD SectionÐ .............................. 21 4-5. Schematic Diagram ÐCD SectionÐ ................................... 23 4-6. Printed Wiring Board ÐFront SectionÐ ............................. 27 4-7. Schematic Diagram ÐFront SectionÐ ............................... 31 4-8. Printed Wiring Boards ÐMain SectionÐ ........................... 36 4-9. Schematic Diagram ÐMain Section (1/2)Ð ....................... 39 4-10. Schematic Diagram ÐMain Section (2/2)Ð ....................... 43 5. EXPLODED VIEWS 5-1. Case Section ..................................................................... 51 5-2. Front Panel Section .......................................................... 52 5-3. Chassis Section ................................................................ 53 5-4. CD Mechanism Section ................................................... 54 5-5. Optical Pick-up Section ................................................... 55 6. ELECTRICAL PARTS LIST................................... 56 This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. The following caution label is located inside the unit.
