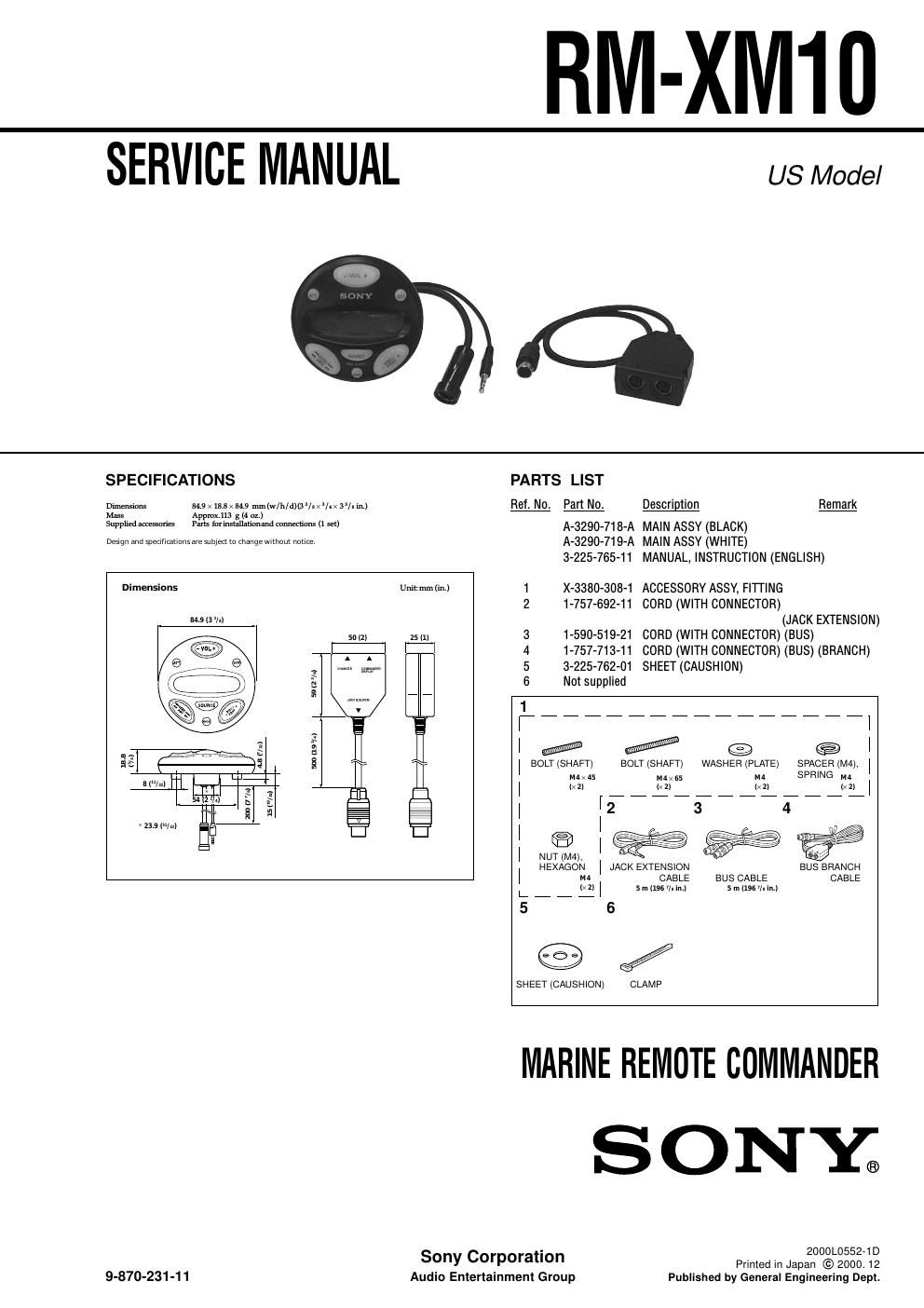

Sony rm xm 10 service manual

Page 1

2 Features With this remote commander, you can control your car audio equipment easily. Use this remote commander with master units equipped with the special input jack for the rotary commander and the Sony Bus system control. Location and function of controls The following buttons (except the SOURCE and MODE button) share the same functions as those on the master unit or the wireless remote commander. For more information about the functions of each button or control, refer to the operating instructions of your Sony car audio equipment. 1VOL (volume) + – button 2ATT (attenuate) button Press to attenuate the sound momentarily. 3SOURCE button Press to select program sources. 4SEEK/AMS button During tape or CD/MD playback: - AMS* function: Locates the beginning of tracks. Each time you press either side of the button a track is skipped. To skip several tracks at once, press either side of the button momentarily and release. Within one second, press it again and hold it. * Automatic Music Sensor.- Manual search: Locates the desired part of a track. Press and hold either side of the button until the desired part is located. When the desired track is reached, release. During radio/TV reception: - Automatic tuning: Automatically tunes in to a station. When a station is tuned in, the search stops automatically. Press either side of the button momentarily several times until a desired station is tuned in. - Manually searches for a station. Press either side of the button until the desired station is tuned in. If you press again within one second, you can continue manually search for another station. 5MODE button - Changes the playback side of the cassette. - Selects CD units when several CD units are connected. For example: CD1 t CD2 t ··· - Selects MD units when several MD units are connected. For example: MD1 t MD2 t ··· - Changes the preset groups. For example: FM1 t FM2 t AM t ··· - Changes the TV/AUX (video) mode. 6OFF button Press to turn off the unit. 7DISC/PRST button - Fast-winds the tape. To resume normal playback, press the MODE button. - Changes the disc when one or more CD/MD units are connected. - Receives the stations memorized on the preset number buttons on the master unit. 8ATT (attenuate) indicator When the ATT function is on, the ATT indicator blinks. 9Source information 0Mode information Source Source information (9) Mode information (0)Tuner FM1, FM2, AM FrequencyTape TAPE - FWD (Forward) - REV (Reverse) - FF (Fast-forward) - REW (rewind) CD/MD CD, MD Disc number (with the CD/MD units) and Track numberTV TV Channel numberVideo AUX – – – –Volume VOL Volume level Installation Notes - Choose the mounting location carefully so that the remote commander: - will not interfere with driving the motorboat. - can easy of operate the remote commander and the display is to see. - will not get wet or dirty from sea water, rain, dust, etc. - is not subject to high temperatures, such as from direct sunlight. - Be sure to use only the supplied mounting hardware for a safe and secure installation. - When installing the remote commander, be sure not to damage the electrical cables etc., on the other side of the mounting surface. 1 Make the mounting holes as follows. 2 Connection MASTER UNIT CHANGER COMMANDER/ DISPLAY 1 or 2345 ¿ 8.5 ( 11/32) ¿ 24.5 ( 31/32) 54 (2 1/4) Unit: mm (in.) CD/MD changer 8 67 Not supplied (supplied with CD/MD changer) Master unit with Sony BUS systemNotes - Be sure all the cords, connection plugs, and the divide box are located and fixed in position so that they are not subjected to high temperatures, vibration, sea water, rain, dust, etc. -When finished making all the connections, press the RESET button of the master unit. - When you connect the remote commander to the master unit and other units (CD/MD changer etc.), refer also to the Installation/Connections manual of the master unit and other units. - You cannot connect more than two CD/MD changers. Master unit After connecting, bundle up the connecting cords of the remote commander with other connecting cords of the audio equipment by attaching the supplied clamp 0. Be sure to leave some slack in the connecting cord between the plug and the clamp as illustrated. 9 0 GENERAL This section is extracted from instruction manual.
