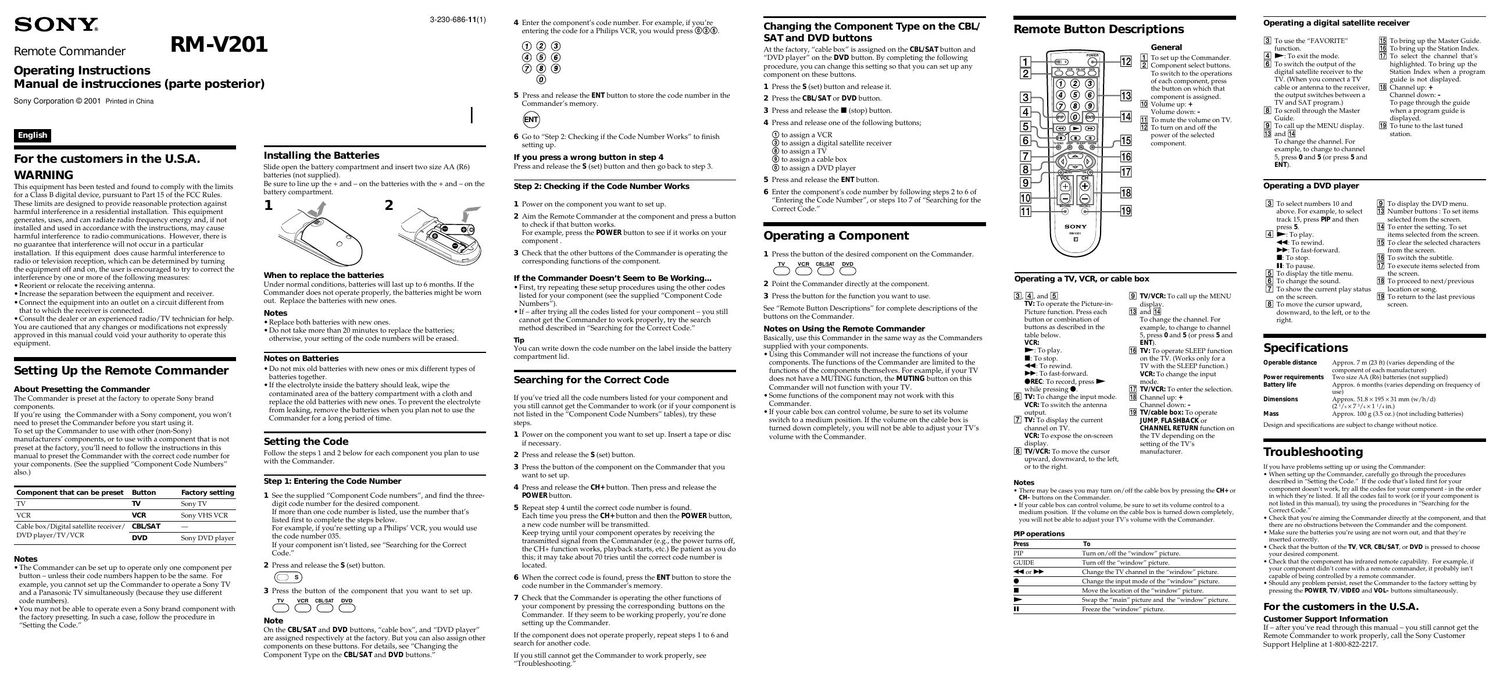

Page 1

SONYs

Remote Commander
Operating Instructions

3-230-686-1 1(1)

RM -V201

Manual de instrucciones (parte posterior)

Sony Corporation © 2001 Printed in China

For the customers in the U.S.A.
WARNING

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. it this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
I Reorient or relocate the receiving antenna.
I Increase the separation between the equipment and receiver.
I Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
I Consult the dealer or an experienced radio/ TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.

Setting Up the Remote Commander

About Presetting the Commander

The Commander is preset at the factory to operate Sony brand
components.

If youre using the Commander with a Sony component, you wont
need to preset the Commander before you start using it.

To set up the Commander to use with other (non-Sony)
manufacturers components, or to use with a component that is not
preset at the factory, youll need to follow the instructions in this
manual to preset the Commander with the correct code number for
your components. (See the supplied Component Code Numbers
also.)

Component that can be preset Button Factory setting
TV TV Sony TV

VCR VCR Sony VHS VCR
Cable box/ Digital satellite receiver/ CBLISAT 7

DVD Player/TV/ VCR DVD Sony DVD player
Notes

I The Commander can be set up to operate only one component per
button - unless their code numbers happen to be the same. For
example, you cannot set up the Commander to operate a Sony TV
and a Panasonic TV simultaneously (because they use different
code numbers).

I You may not be able to operate even a Sony brand component with
the factory presetting. in such a case, follow the procedure in
Setting the Code.

Installing the Batteries

Slide open the battery compartment and insert two size AA (R6)
batteries (not supplied).

Be sure to line up the + and - on the batteries with the + and - on the
battery compartment.

1

When to replace the batteries

Under normal conditions, batteries will last up to 6 months. If the
Commander does not operate properly, the batteries might be worn
out. Replace the batteries with new ones.

Notes

I Replace both batteries with new ones.

I Do not take more than 20 minutes to replace the batteries;
otherwise, your setting of the code numbers will be erased.

Notes on Batteries

I Do not mix old batteries with new ones or mix different types of
batteries together.

I if the electrolyte inside the battery should leak, wipe the
contaminated area of the battery compartment with a cloth and
replace the old batteries with new ones. To prevent the electrolyte
from leaking, remove the batteries when you plan not to use the
Commander for a long period of time.

Setting the Code

Follow the steps 1 and 2 below for each component you plan to use
with the Commander.

Step 1: Entering the Code Number

1 See the supplied Component Code numbers, and find the three-
digit code number for the desired component.
If more than one code number is listed, use the number thats
listed first to complete the steps below.
For example, if youre setting up a Philips VCR, you would use
the code number 035.
if your component isnt listed, see "Searching for the Correct
Code.

2 Press and release the 5 (set) button.

3 Press the button of the component that you want to set up.
TV VCR DEL/SAT DVD

Note

On the CBLSAT and DVD buttons, cable box, and "DVD player
are assigned respectively at the factory. But you can also assign other
components on these buttons. For details, see "Changing the
Component Type on the CBL/SAT and DVD buttons.

4 Enter the component's code number. For example, if youre
entering the code for a Philips VCR, you would press ®©@.

®®@

@©©

®O©
@

5 Press and release the ENT button to store the code number in the
Commanders memory.

@

6 Go to Step 2: Checking if the Code Number Works" to finish
setting up.

If you press a wrong button in step 4
Press and release the 5 (set) button and then go back to step 3.

Step 2: Checking if the Code Number Works

1 Power on the component you want to set up.

2 Aim the Remote Commander at the component and press a button
to check if that button works.
For example, press the POWER button to see if it works on your
component .

3 Check that the other buttons of the Commander is operating the
corresponding functions of the component.

If the Commander Doesn't Seem to Be Working...

I First, try repeating these setup procedures using the other codes
listed for your component (see the supplied Component Code
Numbers).

I if - after trying all the codes listed for your component -- you still
cannot get the Commander to work properly, try the search
method described in Searching for the Correct Code.

Ti P

You can write down the code number on the label inside the battery

compartment lid.

Searching for the Correct Code

If you've tried all the code numbers listed for your component and
you still cannot get the Commander to work (or if your component is
not listed in the Component Code Numbers tables), try these
steps.

1 Power on the component you want to set up. Insert a tape or disc
if necessary.

2 Press and release the 5 (set) button.

3 Press the button of the component on the Commander that you
want to set up.

4 Press and release the CH+ button. Then press and release the
PO W ER button.

5 Repeat step 4 until the correct code number is found.
Each time you press the CH+ button and then the POWER button,
a new code number will be transmitted.
Keep trying until your component operates by receiving the
transmitted signal from the Commander (e.g., the power turns off,
the CH+ function works, playback starts, etc.) Be patient as you do
this; it may take about 70 tries until the correct code number is
located.

6 When the correct code is found, press the ENT button to store the
code number in the Commanders memory.

7 Check that the Commander is operating the other functions of
your component by pressing the corresponding buttons on the
Commander. if they seem to be working properly, youre done
setting up the Commander.

If the component does not operate properly, repeat steps 1 to 6 and
Search for another code.

If you still cannot get the Commander to work properly, see
Troubleshooting."

Changing the Component Type on the CBL/
SAT and DVD buttons

At the factory, "cable box i. ssigned on the CBL/SAT button and
DVD player" on the DVD button. By completing the following
procedure, you can change this setting so that you can set up any
component on these buttons.

1 Press the 5 (set) button and release it.

2 Press the CBl/SAT or DVD button.

3 Press and release the I (stop) button.

4 Press and release one of the following buttons,-
(D to as ign a VCR
© to a. gn a digital satellite receiver
to as. ign a TV

(9 to assign a cable box
© to assign a DVD player

5 Press and release the ENT button.

6 Enter the components code number by following steps 2 to 6 of
"Entering the Code Number, or steps 1to 7 of Searching for the
Correct Code.

Operating a Component

1 Press the button of the desired component on the Commander.
TV VCR cat/5A1 DVD

2 Point the Commander directly at the component.
3 Press the button for the function you want to use.

See Remote Button Descriptions" for complete descriptions of the
buttons on the Commander.

Notes on Using the Remote Commander

Basically, use this Commander in the same way as the Commanders

supplied with your components.

I Using this Commander will not increase the functions of your
components. The functions of the Commander are limited to the
functions of the components themselves. For example, if your TV
does not have a MUTING function, the M UTING button on this
Commander will not function with your TV.

I Some functions of the component may not work with this
Commander.

I If your cable box can control volume, be sure to set its volume
switch to a medium position. if the volume on the cable box is
turned down completely, you will not be able to adjust your TVs
volume with the Commander.

Remote Button Descriptions

General

To set up the Commander.
Component select buttons.
To switch to the operations
of each component, press
the button on which that
component is assigned.
Volume up: +

Volume down: -

To mute the volume on TV.
To turn on and off the
power of the selected
component.

Operating a TV, VCR, or cable box

E, E, and El
TV: To operate the Picture-iri-
Picture function. Press each
button or combination of
buttons as described in the
table below.
VCR:
>: To play.

. To stop.
«; To rewind.
»; To fast-forward.
exec: To record, press >
while pressing o.

E TV: To change the input mode.
VCR: To switch the antenna
output.

TV: To display the current
channel on TV.

VCR: To expose the onscreen
display.

TV/VCR: To move the cursor
upward, downward, to the leit,
or to the right.

Notes

E TV/VCR: To call up the MENU
displa .
and

To change the channel. For
example, to change to channel
5, press 0 and 5 (or press 5 and

EMT).
TV: To operate SLEEP function
on the TV. (Works only for a
TV with the SLEEP function.)
VCR: To change the input
mode.

TV/ VCR: To enter the selection.

Channel up: +
Channel down: -

TV/rable box: To operate
jUMP, FLASHBACK or
CHANNEL RETURN function on
the TV depending on the
setting of the TVs
manufacturer.

Operating a digital satellite receiver

E To use the FAVORITE
function.

E >» To exit the mode.

E To switch the output of the
digital satellite receiver to the
TV. (When you connect a TV
cable or antenna to the receiver,
the output switches between a
TV and SAT program.)

To scroll through the Master
Guide.

E To call up the MENU display.

and
To change the channel. For
example, to change to channel
5, press 0 and 5 (or press 5 and
EMT).

E To bring up the Master Guide.
To bring up the Station index.
To select the channel thats
highlighted. To bring up the
Station index when a program
guide is not displayed.
Channel up: +
Channel down: -
To page through the guide
when a program guide is
displayed
To tune to the last tuned
station.

Operating a DVD player

E To select numbers 10 and
above. For example, to select
track 15, press PIP and then
press 5.

E >: To play.

«: To rewind.
»; To fast-forward.
I To stop.

To pause.

E To display the title menu.
To change the sound.

To show the current play status
on the screen.

To move the cursor upward,
downward, to the left, or to the
right.

E To display the DVD menu.
Number buttons : To set items
selected irom the screen.

To enter the setting. To set
items selected from the screen.

E To clear the selected characters
from the screen.

To switch the subtitle.

To execute items selected from

the screen.

To proceed to next/previous
location or song.

To return to the last previous
screen.

SpeCIfications

Operable distance

Approx. 7 m (23 ft) (varies depending of the

component of each manufacturer)
Pow er requirements Two Size AA (R5) batteries (not supplied)

Battery life Approx. 6 months (varies depending on frequency of
use)

Dimensions Approx. 51.8 x 195 x 31 mm (w/h/d)
(2 vi x7i/t x l Vt in.)

Mass Approx. 100 g (3.5 oz.) (not including batteries)

Design and specitications are subject to change without notice.

Troubleshooting

if you have problems setting up or using the Commander:
- When setting up the Commander, carefully go through the procedures
described in Setting the Code. if the code thats listed first for your

- There may be cases you may turn Un/nff the cable box by pressing the CH+ or
CH- buttons on the Commander.

I If your cable box can control Volume, be sure to Set its Volume control to a
medium position. if the volume on the cable box is turned down completely,
you will not be able to adjust your TVs Volume with the Commander

PIP operations

Press To

PIP Turn on/off the window picture.

GUIDE Turn off the window picture

« or » Change the TV channel in the window picture

0 Change the input mode of the window picture.

I Move the location of the window picture

> Swap the mam picture and the window picture
II Freeze the window picture

component doesnt work, try all the codes for your component . in the order
in which they're listed. if all the codes fail to work (or it your component is
not listed in this manual), try using the procedures in Searching tor the
Correct Code.

- Check that youre aiming the Commander directly at the component, and that
there are no obstructions between the Commander and the component.

- Make sure the batteries youre using are not worn out, and that theyre
inserted correctly.

- Check that the button of the TV, VCR cat/SAT, or DVD is pressed to choose
your desired component.

- Check that the component has infrared remote capability For example, if
your component didnt come with a remote commander, it probably isnt
capable of being controlled by a remote commander.

- Should any problem persist, reset the Commander to the factory setting by
pressing the rowan, TV/VIDEO and VOL- buttons simultaneously.

For the customers in the U.S.A.

Customer Support Information

if - after youve read through this manual r you still cannot get the
Remote Commander to work properly, call the Sony Customer
Support Helpline at 1-800-822-2217.
