Sony rm s 410 owners manual

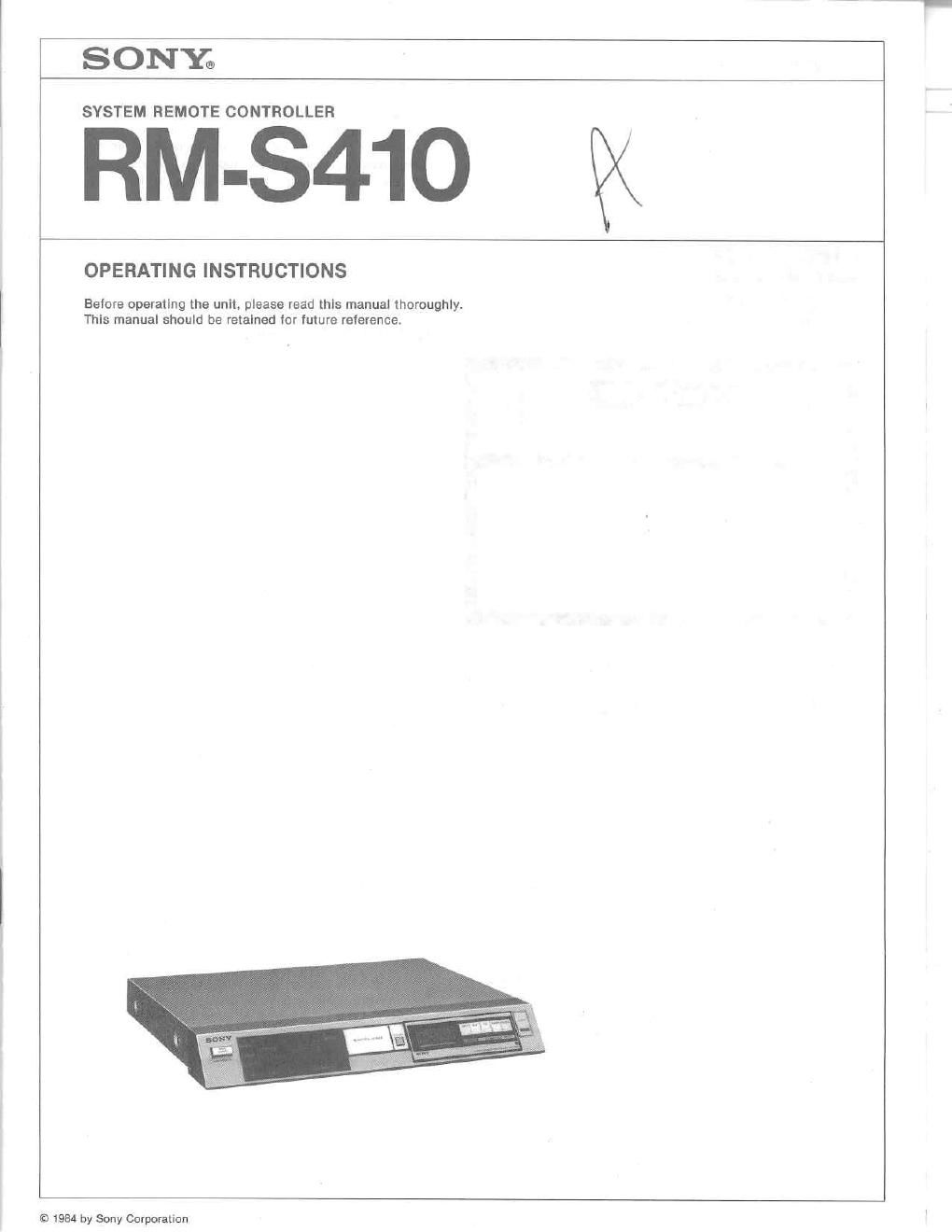

Page 1

SONE

SYSTEM REMOTE CONTROLLER

RM-S41O

OPERATING INSTRUCTIONS

Before operating the unlt, please read thls manual thoroughly.
This manual should be reIaIned Ior future reference.

© 1934 by Sony Corporauan

Page 2

OWNERS RECORD

The model and serial numbers are located at the rear Record the
serial number in the space provided below. Refer to these numbers
whenever you call upon your Sony dealer regarding this product.

Model No. RM-SMO

To prevent fire or shock hazard, do not ex-
pose the unit to rain or moisture.

Serial No.

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION : TO REDUCE THE HlSK OF ELECTRIC SHOCK.

DO NOT REMOVE COVE (OR BACK),

NO USER-SERVICEABLE PARTS letDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol is intended to alert the user to the
presence of uninsulated "dangerous voltage"
within the products enclosure that may be of
sufficient magnitude to constitute a risk of elec-
tric shock to persons.

This symbol is intended to alert the user to the
presence of important operating and mainte-
nance (servicing) instructions In the literature
accompanying the appliance.

INFORMAHON
This equipment generates and uses radio frequency energy and if
not installed and used properly, that is. In strict accordance with
the manufacturer's instructions, may cause interference to radio
and television reception. it has been type tested and found to com-
ply with the limits for a Class B computing device in accordance
with the specifications In Subpart J of Part 15 of FCC Rules, which
are designed to provide reasonable protection against such in-
terference in a residential installation. However. there is no
guarantee that Interference will not occur in a panicular installa-
tion. If this equipment does cause interference to radio or televi-
slon reception. which can be determined by turning the equipment
off and on. the user is encouraged to try to correct the interference
by one or more of the following measures :

Reorient the receiving antenna

Relocate this equipment with respect to the receiver

Move this equipment away from the receiver

Plug this equipment into a different outlet so that equipment and
receiver are on different branch circuits.
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user
may find the following booklet prepared by the Federal Com-
munications Commission helpful :
How to Identify and Resolve RadioTV Interference Problems".
This booklet is available from the U.S. Government Printing Office,
Washington, DC 20402. Stock No. DOA-000003454.

TABLE OF CONTENTS

Features
Precautions
Connection
Connection notes ......
Power cord connection
Location and function of controls .
Controller ..
Commander ..
How to elect the commander
To install the commander.,
Battery installation for commander
lnstallation ............
Battery replacement
Clock adjustment .........
Remote control operation
Turntable operation
Tuner operation
Tape deck operation
CD player operation
Range of the remote control
Timer operation .......
To set thetimer .
After setting the timer programs.
To check the timer setting time .
Examples of timer use
To lock all the settings
Errorindicators .
Sleep timer function .
To set the sleep timer
To check the remaining time of the sleep timer .
To extend the sleep timer function
Specifications . . . .
Trouble checks
