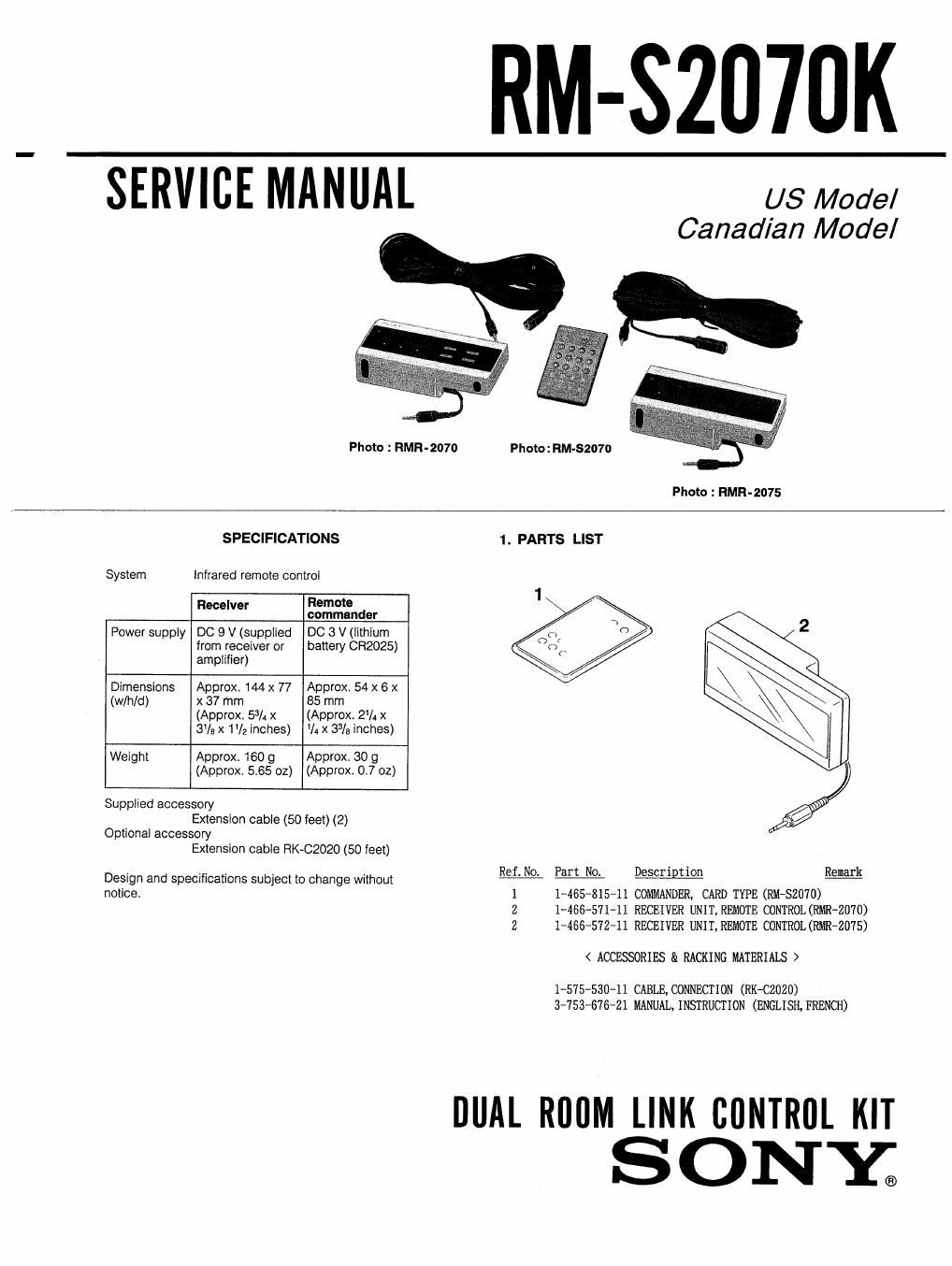

RM-SZD70K
SERVICE MANUAL
Photo : RMFl-2070
US Model
Canadian Model
Photo: RM-szo7o
Photo : RMR-2075
System
SPECIFICATIONS
Infrared remote control
Receiver
Remote
commander
Power supply
DC 9 V (supplied
from receiver or
amplifier)
DC 3 V (lithium
battery CR2025)
Dimensions
(w/h/d)
Approx, 144 x 77
x 37 mm
(Approxv 53/4 x
3% x We inches)
Approx, 54 x 6 x
85 mm
(Approx 2% x
lt x 33/3 inches)
Weight
Approx. 160 9
(Approx 565 oz)
Approx. 30 9
(Approx, 07 oz)
Supplied accessory
Extension cable (50 feet) (2)
Optional accessory
Extension cable RK-CZOZO (50 feet)
Design and specifications subject to change without
notice.
1 . PARTS LIST
Ref. No. Part No. Description Remark
1-465-815~11 COMMANDER, CARD TYPE (RM-$2070)
1-466-571-11 RECEIVER UNIT, REMOTE CONTROL(RMR-ZO70)
1-466-572-11 RECEIVER UNIT, REMOTE CONTROL(RMR-ZO7S)
NNI-l
< ACCESSORIES 8i RACKING MATERIALS >
1-575-530-11 CABLE, CDNNECTION (RK~C2020)
3-753-676-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
DUAL RflflM LINK CONTROL KIT
SON EC
