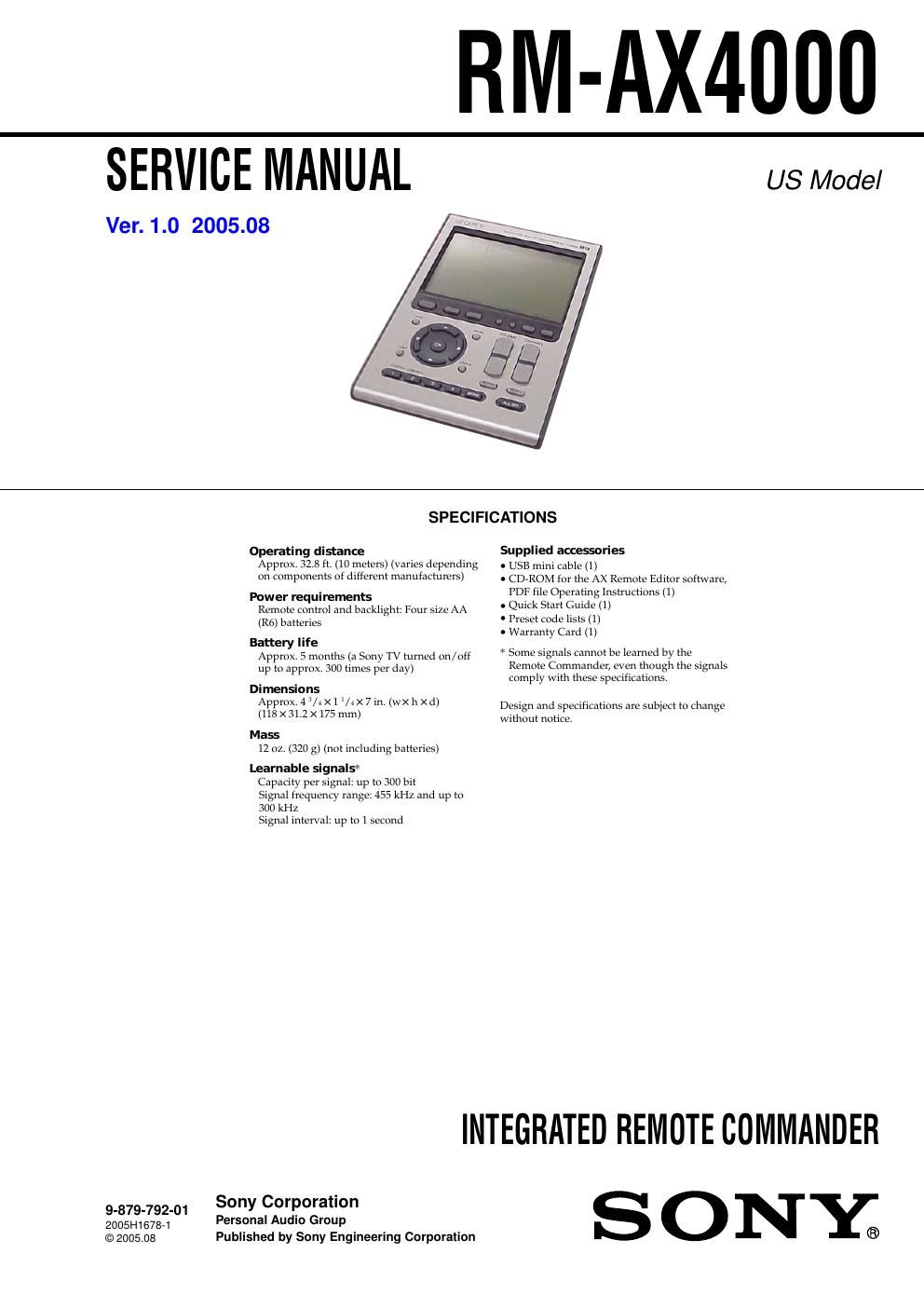

Sony rm ax 4000 service manual

Page 2

3 RM-AX4000 SECTION 1 GENERAL This section is extracted from instruction manual. Location and function of controls EPGMENU SYSTEM CONTROL OK 1 MORE 4 3 COMPONENT VOLUME BACK XPRESS 2 RECALL OFF LIGHTTIMERCOMMANDER MUTING SYNC-UP CHANNEL EXIT TOOLS ALL OFF qs wa wd ws qd qh qj ql qk w; qg qf 1 2 qa 9 0 7 6 5 4 3 8 The CHANNEL + button has a tactile dot. 1Clock display (pages 11, 42) Displays the clock, the transmission mark, the battery mark and the timer mark. 2Label keys Different keys appear depending on the selected display. The Label keys are used mainly to choose the XPRESS function/component/System Control/Timer/setting items, etc. You can change the names of the XPRESS function, components, System Control key and Timer as the Label keys. 3COMPONENT button (page 27) The component names appear as the Label keys. When you press a component name, the operating display for that component appears. 4BACK button (page 24) Used to return to the previous display. 5XPRESS button (pages 22-24) The XPRESS names appear as the Label keys. When you press an XPRESS name, the operating display for that XPRESS function appears, and its macro is performed. 6MENU button (pages 76-87) Calls up the menu screen for components that have menu function. 7EPG button (pages 76, 78, 81, 84, 86) 8OK and Cursor Control buttons (pages 40, 46, 62, 67, 76, 78-81, 83-88) 9EXIT button (pages 39, 76, 78-81, 83-87) q;TOOLS button (pages 76, 78, 81, 84, 86) qaSYSTEM CONTROL buttons (pages 31, 51, 54) You can automatically carry out the entire program by pressing one button.qsDisplay title Shows the title of the LCD Display. If a page number such as /1 appears, multiple pages are available. If you press the number, next page displays. qdTouch-keys The keys are used for setting the Remote Commander and operating each component appear on the LCD display. NoteDo not press the touch-keys using sharp objects such as pins or ball-point pens. qfSYNC-UP button (pages 25, 49, 55) Used to synchronize with the status of a component . qgTIMER button (pages 29, 30) Used to set the timer program on/off. qhCOMMANDER OFF button (page 33) Turns the power of the Remote Commander off. qjLIGHT button (pages 32, 49) Used to brighten the backlight in the dark. Press the button once to turn on/off the light. qkCHANNEL +/– buttons (pages 76-78, 80-81, 83-87) Selects the channel. qlVOLUME +/– buttons* (pages 29, 50, 76-90) Adjusts the volume. w;RECALL button (pages 76-78, 81, 84-86, 91) waALL OFF button (page 33) wsMUTING button* (pages 29, 50, 76-90) Silences the sound. Press the button to silence, and again to return to the previous volume level. wdMORE button (pages 31, 51, 55) The System Control keys (SYSTEM5- 8) are displayed as the Label keys. When you press a System Control key, its macro is performed. NoteNo default System Control key macros are set at the factory. *Note on the VOLUME +/– and MUTING buttons The Remote Commander can control or silence the TV and amplifier's volume when you select a visual or audio component. Note on the LCD displays power on/off To turn on the LCD display, press any button except the COMMANDER OFF button. To turn off the LCD display, press the COMMANDER OFF button. If you do not use the Remote Commander within 5 minutes, the LCD display automatically turns off. This interval can also be changed (page 37).
