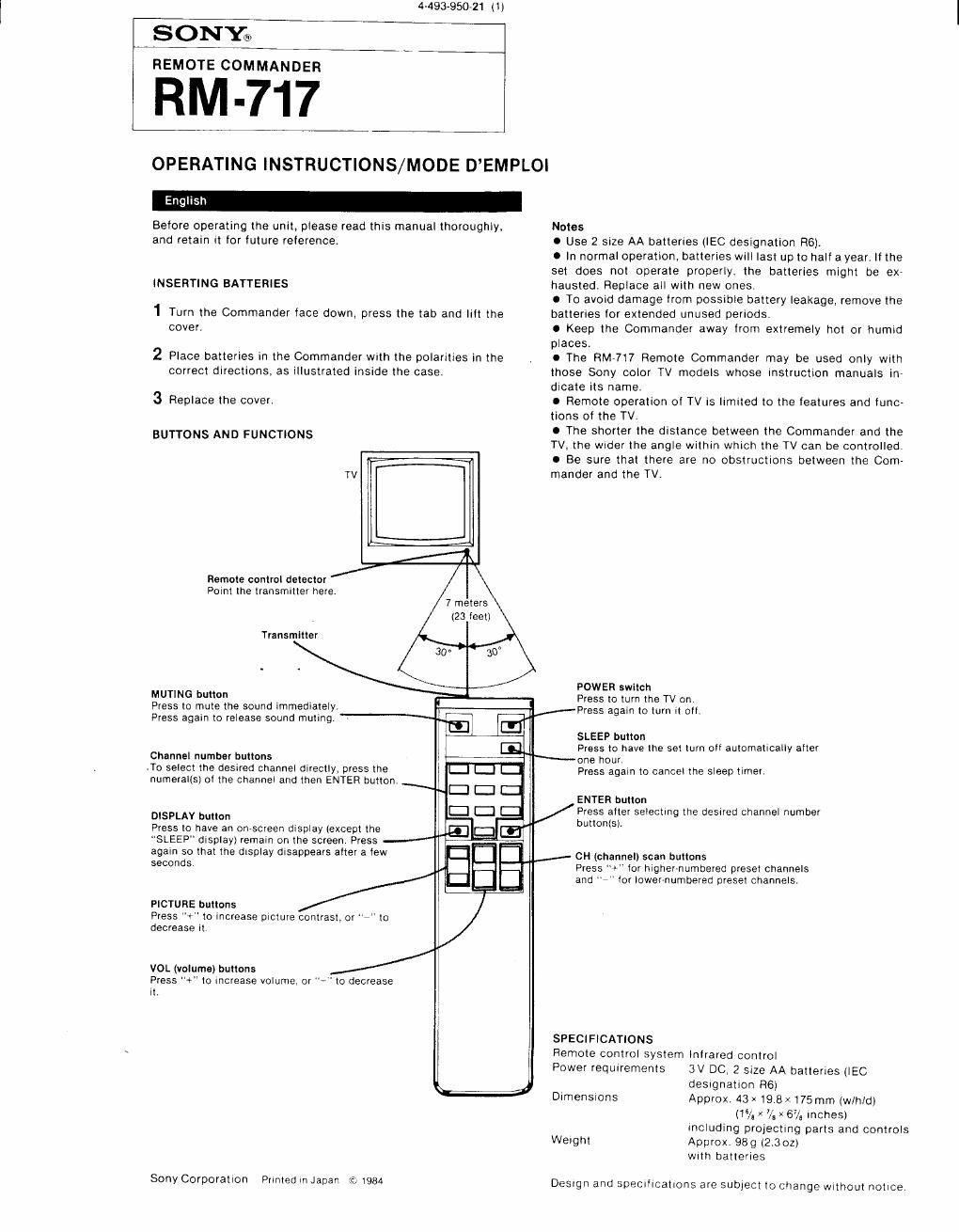

Page 1

449395021 (1)

SONYs

REMOTE COMMANDER

RM-717

OPERATING INSTRUCTIONS/MODE DEMPLOI

Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
INSERTING BATTERIES

1 Turn the Commander face down, press the tab and lilt the
cover.

2 Place batteries in the Commander with the polarities in the
correct directions, as illustrated inside the case.

3 Replace the cover.

BUTTONS AND FUNCTIONS

TV

l

i

l

L
/-7

Remote control detector
Point the transmitter here.
7 meters

(23 Ieeti
Transmitter
30° 30

MUTING button

Press to mute the sound immediately,

Press again to release sound muting. -- --\ .m If

Channel number buttons

.To select the desired channel directly. press the

numeral(s) of the channel and then ENTER button. _\

D
DISPLAY button Cl
Press to have an art-screen display (except the E
SLEEP" dlsplay) remain on the screen. Press
again so that the display disappears after a few

seconds

l

PICTURE buttons
Press +" to increase picture contrast, or e" to
decrease it,

VOL (volume) buttons
Press + to increase volume, or a" to decrease
it.

Sony Corporation Printedin Japan © teaa

Notes

0 Use 2 size AA batteries (IEC designation Re).

0 In normal operation, batteries wrll last up to halt ayear. Ifthe
set does not operate properly, the batteries might be ex
hausted. Replace all with new ones,

0 To avoid damage from possrble battery leakage, remove the
batteries for extended unused periods,

0 Keep the Commander away lrorri extremely hot or humid
places.

a The FiM-717 Remote Commander may be used only with
those Sony color TV models whose instruction manuals in
dicate its name.

0 Remote operation of TV is limited to the features and func-
tions of the TV.

0 The shorter the distance between the Commander and the
TV, the Wider the angle within which the TV can be controlled,
0 Be sure that there are no obstructions between the Com-
mander and the TV.

POWER switch
Press to turn the TV on

/--'Press again to turn it olf.

SLEEP button
Press to have the set turn oil automalically alter

one hour

Press again to cancel the sleep timer.

ENTER button
Press alter selecting the desired channel number
button(s).

CH (channel) scan buttons
Press " lor highernumbered preset channels
and 7 tor lowerrnumbered preset channels.

SPECIFICATIONS

Remote control system Inlrared control

Power requirements 3V DC, 2 size AA batteries (lEC
designation R6)

Dimensions Approx. 43x 19.8 X i75rnrn (w/hldi
(1% x 7/9 X 67/, Inches)
including protecting parts and controls
Weight Approx. 989 (2 302)

With batteries

Desrgn and spectlications are supiect to change Without notice
