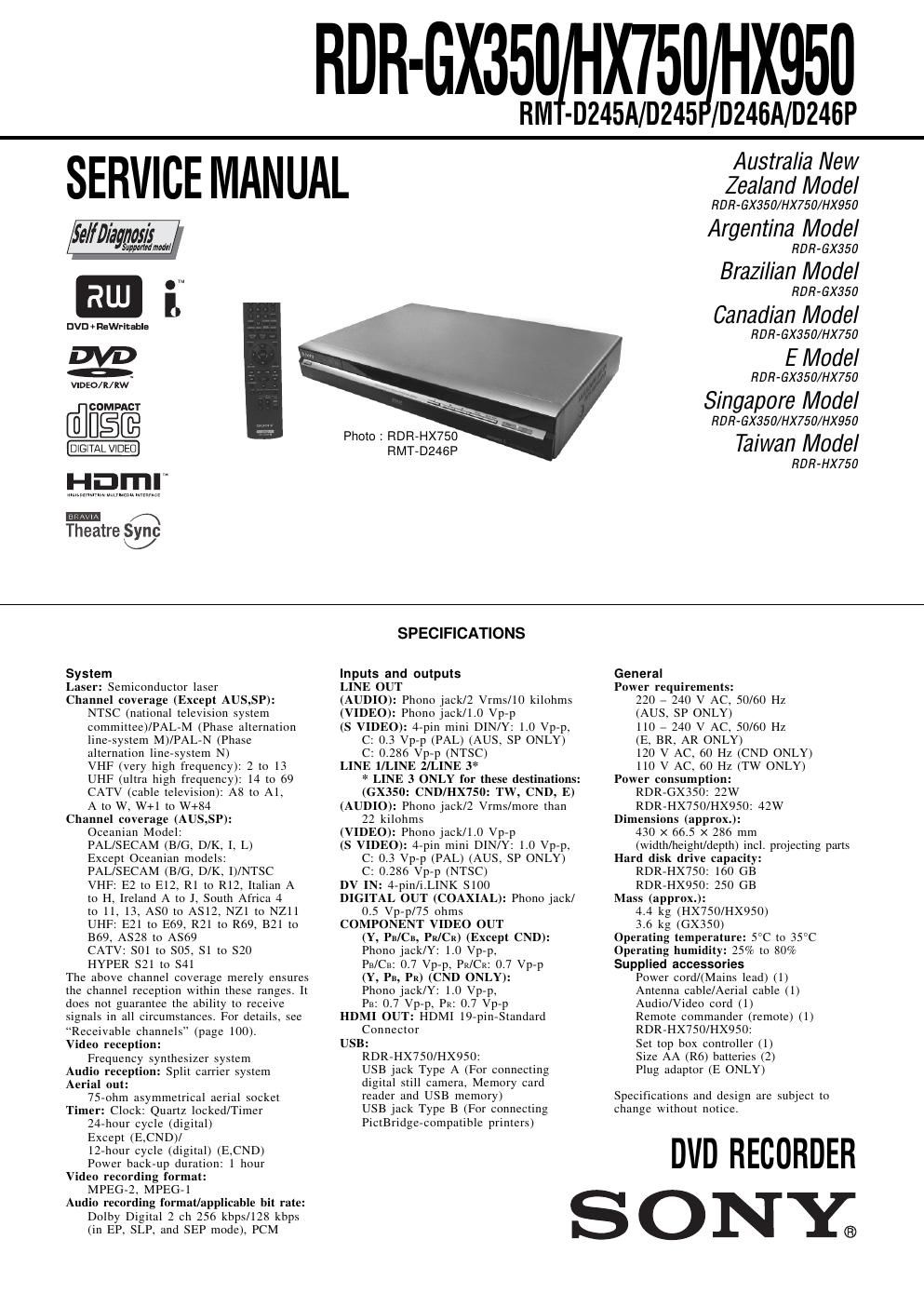

Page 1
– 2 – RDR-GX350/HX750/HX950SAFETY CHECK-OUT 1. Check the area of your repair for unsoldered or poorly-solderedconnections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are pinched or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. 4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement. 5. Check the line cord for cracks and abrasion. Recommend the replacement of any such line cord to the customer. 6. Check the B+ voltage to see it is at the values specified. 7. Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CAUTION: The use of optical instrument with this product will increase eye hazard. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK OR DOTTED LINE WITH MARK ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCATW-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC volmeter. The limit indication is 0.75V, so analog meters must have an accurate low voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Unleaded solder Boards requiring use of unleaded solder are printed with the lead-free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40°C highter than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. To Exposed Metal Parts on Set 0.15 F 1.5k AC Voltmeter (0.75 V) Earth Ground Fig.A. Using an Acvoltmeter to check AC leakage.
Page 2
– 3 – RDR-GX350/HX750/HX950 TABLE OF CONTENTS SERVICE NOTE 1. Disc Removal Procedure in the Tray cannot be Ejected(Forced Ejection) ................................................................... 5 2. Board Connection, Service Remote Controller .................... 5 3. Model Name Setting Method when Engine is replaced ....... 6 4. HOW TO DIAGNOSE HDD FAILURE ................................. 7 4-1. Defective HDD ............................................................. 7 4-2. HDD Recognition status .............................................. 7 4-3. Display [E01] on FLD with unrecognized HDD ......... 8 4-4. Display [E02] on FLD ................................................... 9 4-5. When playing a video, MP3, or JPG, the contents freeze ...................................................... 9 4-6. Facto ry Check........................................................... 10 4-7. Self Test ..................................................................... 10 4-8. Performance Check .................................................. 11 1. GENERAL WARNING........................................................................\ ... 1-1 Precautions ........................................................................\ .. 1-1 Quick Guide to Disc Types ................................................ 1-1 Hookups and Settings ................................................................ 1-2 Hooking Up the Recorder ................................................... 1-2 Step 1: Connecting the Aerial Cable .................................. 1-3 Step 2: Connecting the Video Cords/HDMI Cord ............. 1-3 Step 3: Connecting the Audio Cords/HDMI Cord ............. 1-4 Step 4: Connecting the AC Power Cord (Mains Lead) ..... 1-4 Step 5: Preparing the Remote ............................................ 1-4 Step 6: Easy Setup ............................................................. 1-5 Connecting a VCR or Similar Device ................................. 1-5 Connecting to a Satellite or Digital Tuner .......................... 1-6 Eight Basic Operations -Getting to Know Your DVD Recorver ............................ 1-6 Inserting a Disc ................................................................... 1-6 Recording a Programme .................................................... 1-6 Playing the Recorded Programme (Title List) ................... 1-6 Displaying the Playing Time and Play Information ............ 1-7 Changing the Name of a Recorded Programme ............... 1-7 Labelling and Protecting a Disc .......................................... 1-8 Playing the Disc on Other DVD Equipment (Finalise) ...... 1-8 Reformatting a disc ............................................................. 1-9 Timer Recording ........................................................................\ . 1-9 Before Recording ................................................................ 1-9 Time Recording ................................................................. 1-10 Checking/Changing/ Cancelling Timer Settings (Timer List) .......................1-11 Recording From Connected Equipment ..........................1-11 Playback ........................................................................\ ............ 1-11 Playing the Recorder Programme/DVD ..........................1-11 Playing from the Beginning of the Programme You Are Recording (Chase Play) .............................................. 1-13 Playing a Previous Recording While Making Another (Simultaneous Rec and Play) .....................................1-13 Searching for a Time/Title/Chapter/Track, etc. ..............1-13 Erasing and Editing .. ................................................................. 1-14 Before Editing ..................................................................... 1-14 Erasing and Editing a Title ................................................ 1-14 Erasing and Editing a Chapter ..........................................1-15 Creating and Editing a Playlist ..........................................1-15 Dubbing (HDD <-> DVD) ......................................................... 1-16 Before Dubbing .................................................................. 1-16 HDD/DVD Dubbing ........................................................... 1-16 Dubbing Using Dubbing List .............................................1-16 Making a Backup Disc (DVD Backup) ............................1-17DV Camcorder Dubbing ........................................................... 1-17 Before DV Camcorder Dubbing .......................................1-17 Dubbing an Entire DV Format Tape (DV One Touch Dubbing) ............................................ 1-18 Dubbing Selected Scenes (Manual Dubbing) .................1-18 Playing from a DV Camcorder .........................................1-18 Audio Tracks ........................................................................\ ..... 1-18 Playing Audio Tracks from CD/DVD ................................1-18 Searching for an Audio Track ..........................................1-19 About Jukebox .................................................................. 1-19 Preparing for Using Jukebox ...........................................1-19 Playing Audio Tracks Using Jukebox/USB Device ........1-20 Managing Audio Tracks on the Music Jukebox .............1-20 JPEG Image Files ..................................................................... 1-21 About the Photo Album Function ...................................1-21 Preparing for Using the Photo Album Function ............1-21 Using the Photo Album List ............................................1-22 Managing JPEG Image Files on the HDD .......................1-22 Printing JPEG Image Files ............................................... 1-23 Setting and Adjustments ........................................................... 1-23 Disc Settings (Disc Setup) ............................................... 1-23 Recording Settings (Basic) .............................................. 1-23 Aerial Reception Settings (Tuner) ...................................1-24 Video Settings (Video In/Out) ...........................................1-25 Audio Input Settings (Audio In) .........................................1-25 Audio Output Settings (Audio Out) ..................................1-25 Language Settings (Language) ........................................1-25 Recording Settings (Recording) .......................................1-26 Playback Settings (Playback) ..........................................1-26 HDMI Settings (HDMI Output) .........................................1-27 Other Settings (Options) .................................................. 1-28 Additional Information ................................................................ 1-28 Troubleshooting ................................................................ 1-28 Resetting the Recorder ..................................................... 1-30 Notes About This Recorder .............................................1-30 Specifications ..................................................................... 1-30 Notes on MP3 Audio Tracks, JPEG Image Files, and DivX Video Files .................................................... 1-30 About i.LINK ....................................................................... 1-30 Guide to Parts and Controls .............................................1-31 2. DISASSEMBLY 2-1. Upper Case........................................................................\ . 2-1 2-2. Tray Cover Assembly ......................................................... 2-1 2-3. Front Panel Section ............................................................. 2-2 2-4. FR-274 Board, FL-178 Board ............................................ 2-2 2-5. DVD Drive........................................................................\ .... 2-3 2-6. DC FAN ........................................................................\ ....... 2-3 2-7. Hard Disk (Except GX350) ................................................ 2-4 2-8. AV-117 Board ...................................................................... 2-4 2-9. VCD-001 Board .......................................................... ......... 2-5 2-10. Power Supply Block ............................................................ 2-5 2-11. Circuit Boards Location ....................................................... 2-6 3. BLOCK DIAGRAMS 3-1.Overall Block Diagram ........................................................ 3-1 3-2 AV-117 Block Diagram ........................................................ 3-3 3-3. RD-065 Block Diagram ....................................................... 3-5 3-4. FR274, FL178, VDC-001 Block Diagram .......................... 3-7 3-5. Power Line Block Diagram ................................................. 3-9
