Sony PSE 4000 Service Manual

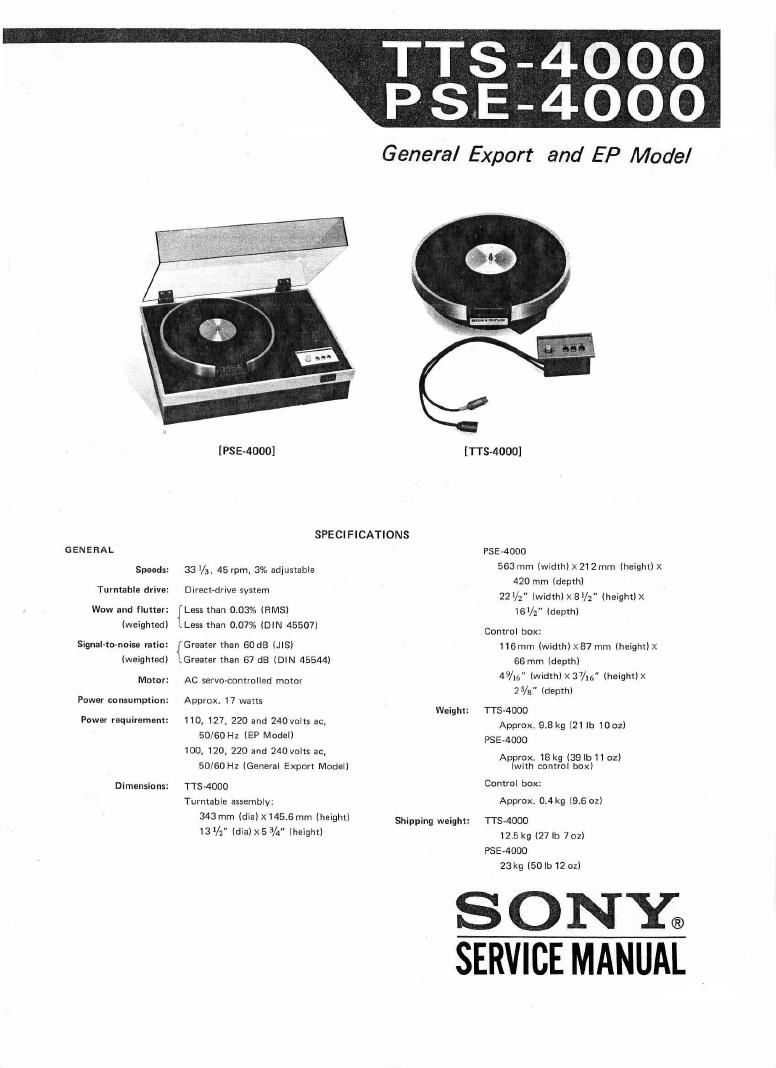

This is the 22 pages manual for Sony PSE 4000 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sony PSE 4000 Service Manual (Ocr-read)
Page 2
SECTION 1.
1-1,
1-2,
1-3.
SECTION 2.
271.
2-2.
2-3,
24
SECTION 3.
SECTION 4.
SECTION 5.
4~li
452.
SECTION 6.
SECTION 7.
TABLE OF CONTENTS
Tizle Page
Servicing Notes ........................................................................ 1
TECHNICAL DESCRIPTION
Technical Specifications 2
Principle of AC Servo System 2
Block Diagram ........................................................................ S
DISASSEMBLY AND REPLACEMENT
Top Cover Removal (P5134000 only) 6
Turntable Platter Removal 6
Turntable Assembly Removal 6
Chassis Removal 6
ADJUSTMENTS ............................................................... 8
REPACKING .................................................................... 9
DIAGRAMS
Mounting Diagram ll
Schematic Diagram 13
EXPLODED VIEW ................................................................. l5
ELECTRICAL PARTS LIST ........................ r. ............. 18
