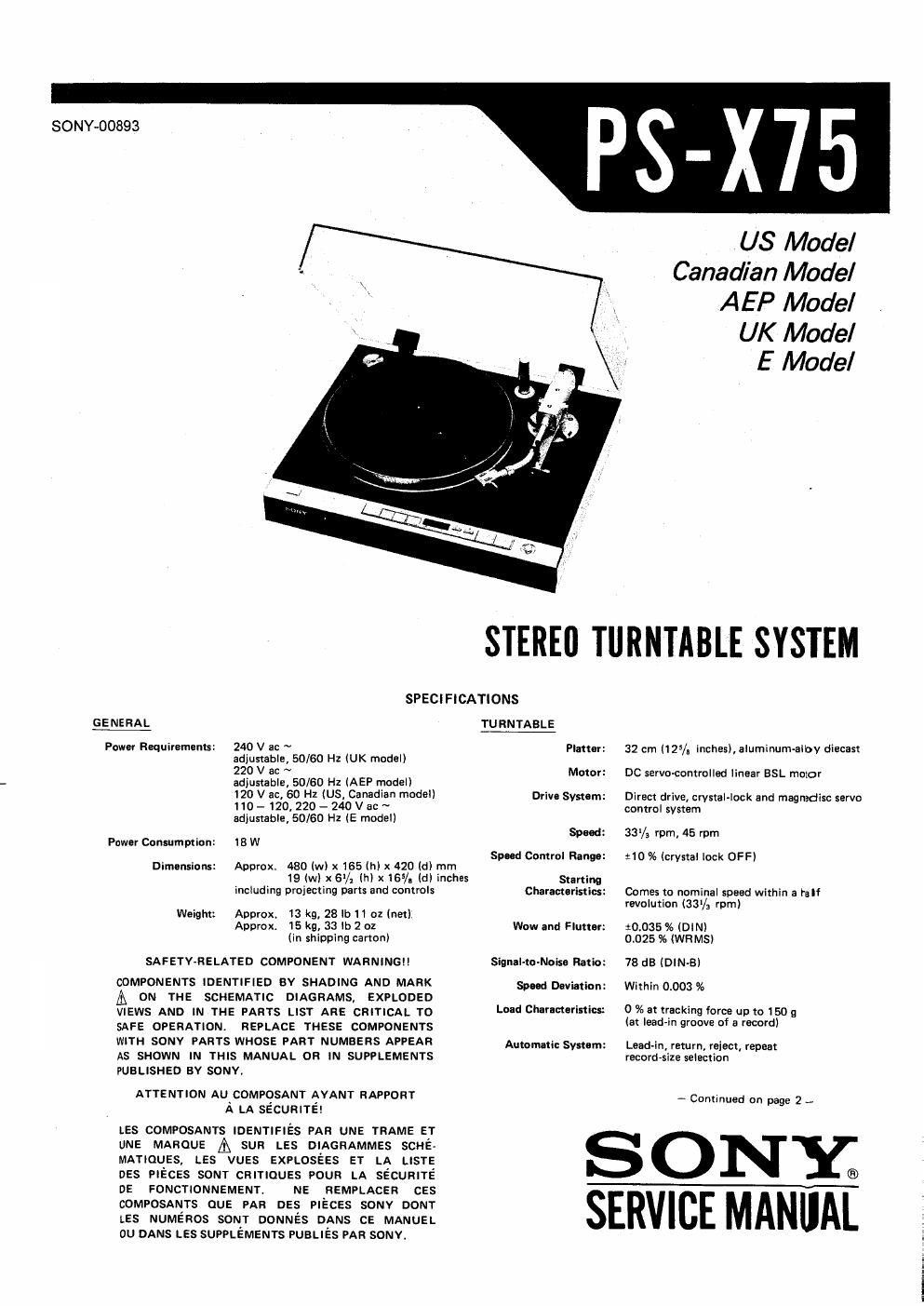

Page 1

SONY~00893

US Model
Canadian Model
AEP Model
UK Model

E Model

STEREO TURNTABLE SYSTEM

SPECIFICATIONS
GENERAL TURNTABLE
Power Requirements: 240 V ac ~ Platter: 32 cm (125/. inches).aluminum-albv diecasi
adjustable, 50/60 HZ (UK model)
220 V ac ~ Motor: DC servo-controlled linear BSL maror

Power Consumption:

adiustable, 50/60 Hz (AEP model)
120 V ac, 60 Hz (US, Canadian model)
110-120, 220- 240Vac ~
adjustable, 50/60 Hz (E model)

18W

Dimensions: Approx. 480(wlx165lhlx 420 Id) mm
19 (wl x6l/1 (hlx165/. Id) inches
includlng projecting parts and controls
Weight: Approx 13 kg; 28 lb 11 01 (net)

Approx 15 kg, 33 lb 2 oz
(in shipping carton)

SAFETYRELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY SHADING AND MARK

ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TD
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONV PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES cowosmrs IDENTIFIES PAR UNE TRAME ET
UNE MAROUE A sun LES DIAGRAMMES SCHE-
MATIOUES, LES vuss EXPLOSEES ET LA 1.:er
ass PlECES som camouss POUR LA sécumTE
DE FONCTIONNEMENT. NE REMPLACER ces
COMPOSANTS cue PAR DES PIECES souv oom-
LES NUMEROS sour DONNES DANS CE MANUEL
ou DANS LES SUPPLEMENTS PUBLIES PAR souv.

Drive system:

Speed:

Swud Carmel Range:
Start i nu

Charamnrist in:

Wow 3nd Flutter:

Signal-to-Naise Ratio:
Spa-d Deviation:

Load Char-movinics:

Automatic System:

Direct drive, crvslal-Iock and magnadisc servo
control system

331/, rpm, 45 rpm

:10 96 (crystal lock OFF)

Comes to nominal speed within a half
revolution (33% rpm)

10.035 % (DlNI
0.025 % (WRMSI

78 dB (DIN-BI
Within 0.003 %

0 % al tracking force up to 150 g
(M lead-in groove of a record)

Lead-in, return, reject. repeat
record-size selection

- Continued on page 2 w

SON'Y®
SERVICE MANUAL
