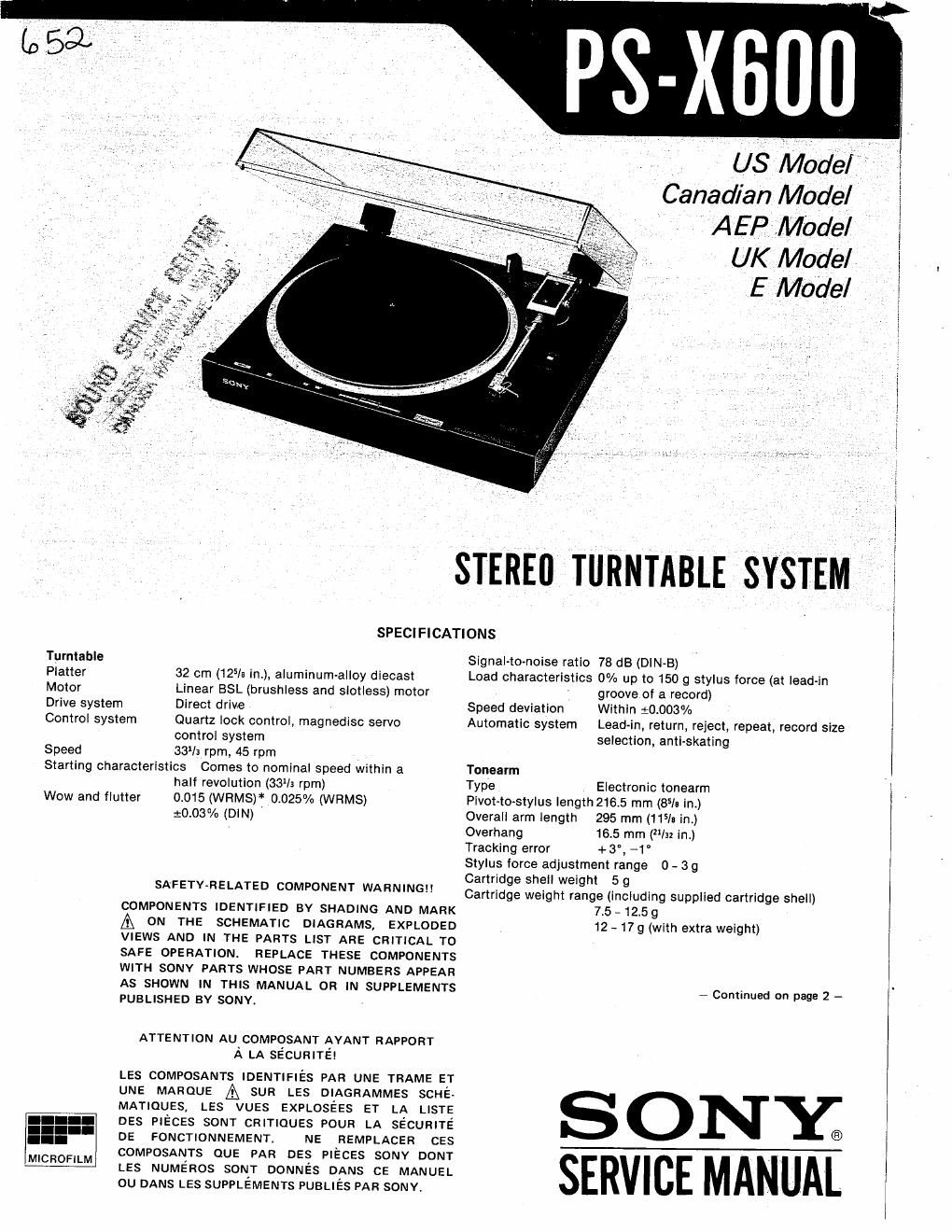

Page 1

Turntable
Platter
Motor

Drive system

US Model
7 Canadian Model
AEP VMvode/

UK Model
E Model

STEREII TURNTABLE SYSTEM

SPECIFICATIONS

32 cm (125/: in.), aluminum-alloy diecast
Linear BSL (brushless and sloiless) motor
Direct drive

Control system Quartz lock control, magnedisc servo

Speed

control system
331/3 rpm, 45 rpm

Starting characteristics Comes to nominal speed within a

hall revolution (331/: rpm)

Wow and flutter 0.015 (WRMS)* 0.025% (WRMS)

MICROEILM

20.03% (DIN)

SAFETY«RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BV SONY. .

ATTENTION AU COMPOSANT AVANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MARQUE A sun LES DIAGRAMMES SCHE-
MATIQUES, LES VUES EXPLOSEES ET LA LISTE
DES PIECES SONT cnmouas POUR LA sécumré
DE FONCTlONNEMENT. NE REMPLACER ces
COMPOSANTS QUE PAR DES PIECES so~v DONT
LES NUMEROS SONT DONNES DANS CE MANUEL
0U DANS LES SUPPLEMENTS PUBLIES FAR SONY.

Signal-to~noise ratio 78 dB (DIN-B)
Load characteristics 0% up to 150 g stylus force (at lead-in
groove of a record)
Speed deviation Within :0.003%
Automatic system Lead-in, return, reject, repeat, record size
selection, anti-skating

Tonearm

Type Electronic tonearm

Pivot~to»stylus length 216.5 mm (55/: in.)

Overall arm length 295 mm (HS/u in.)

Overhang 16.5 mm (/32 in.)

Tracking error +3, ~1"

Stylus force adjustment range 0 < 39

Cartridge shell weight 5 g

Cartridge weight range (including supplied cartridge shell)
7.5 - 12.5 g
12 ~ 17 g (with extra weight)

7 Continued on page 2 -

SON Y;
SERVICE MANUAL

Page 2

PS-XbOO

General
Power requirements

Power consumption
Dimensions

Weight

US, Canadian Modal: 120 V ac. 60 Hz

AEP Model: 220 V ac. 50/50 Hz
UK Model: 240 V ac, 50/60 Hz
E Model: 110-120 or 220-240 V ac

adjustable 50/60 Hz
16 W
Approx. 430 x 120 x 335 mm (w/hld)

(17 X 43/4 X 15Id in.)

including projecting parts and controls
Approx. 8.5 kg (18 lbs 12 02), net
Approx. 10 kg (22 lbs 1 oz), in shipping
carton

Cartridge (AEP, E model)

Type

Frequency response
Channel separation
Output voltage
Load impedance
Tracking force
Stylus

Weight

Moving-magnet

10 -- 30,000 Hz

25 dB at 1 kHz

3 mV at 1 kHz, 5 om/sec, 45°

50 ka - 100 km

1.0 - 2.0 9 (1.5 9 recommended)
Sony ND-ZOOE

3.4 9

MODEL IDENTIFICATION
- Specification Label -

SONYw

STEREO TURNTABLE SYSTEM
Mom no. PS-XGOO

SERIAL N0.
MADE IN JAPAN

- Power Cord -

E1 model: euro-plug 1-555-734-21

E

* This new measuring method concerns only the turntable
assembly, including the platter. It excludes wow and flutter
caused by the tonearm, the cartridge, or the record. Mea-

sured by obtaining signal from magnetic pickup head.

US, Canadian model:
AC120V 60H: 16W

AEP model:
AC 220 V ~ 50/60 Hz 16W

UK model:
AC 240 V ~ 50/60 Hz 16W

E model:
Ac 110 - 120, 220 -- 240 V ~ 50/60 Hz 16 W

E2 model: parallel-blade plug 1-551-473-31

:JWE
