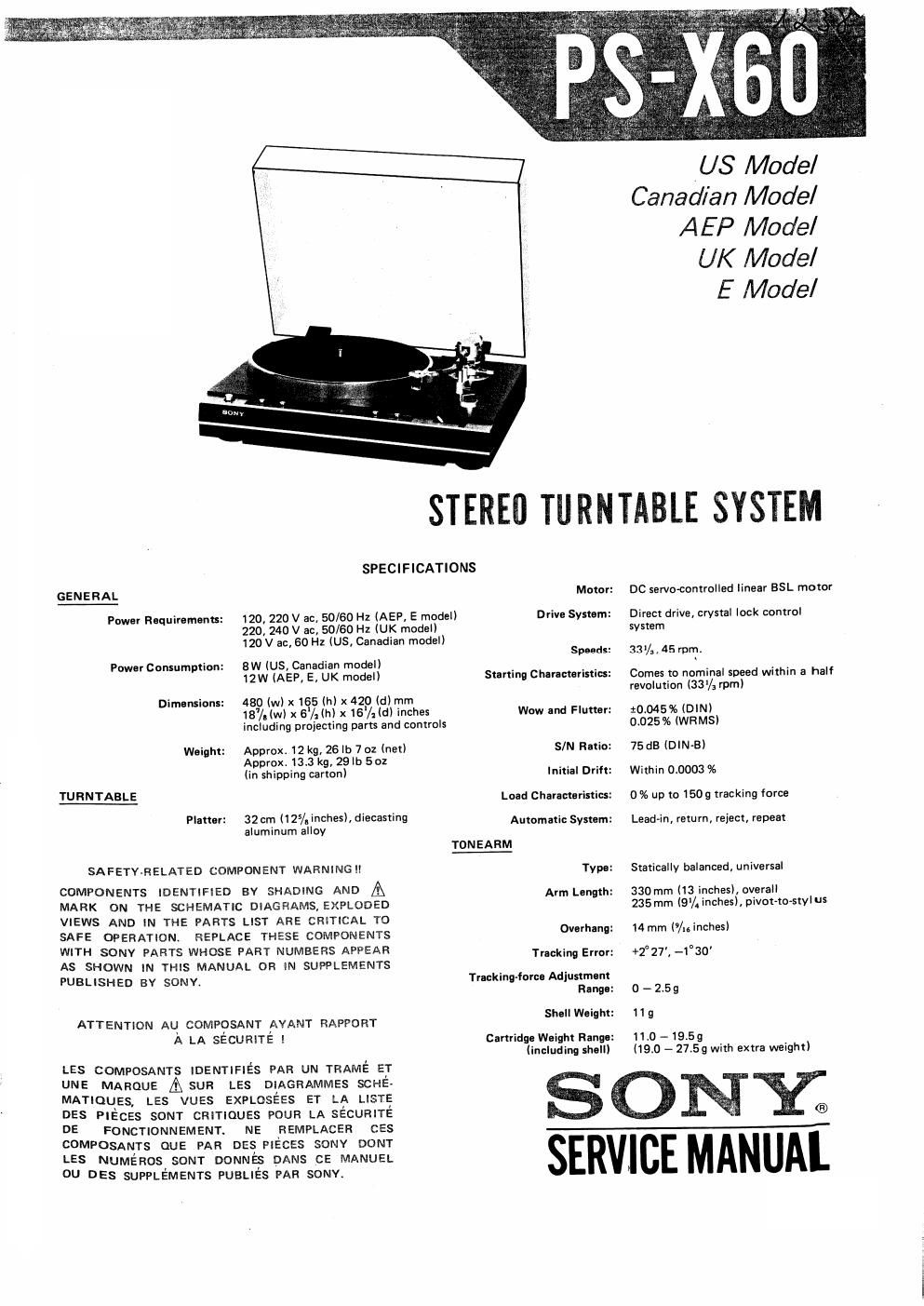

Page 1

SPECIFICATIONS

GENERAL

Power Requiremens:

8W (US, Canadian model)

Power Consumption:
12W (AEP, E, UK model)

120 220 V as 50/60 Hz (AEP, E model)
220, 240V ac, 50/60 Hz (UK model)
120 V ac, 60 Hz (US, Canadian model)

Dimensions: 480 (w) x 165 (h) x 420 (d) rnrn
187/3IW) x 6/; (h) x 16 /;(d) inches
including projecting parts and controls

Weight: Approx 12 kg, 26 lb 7 oz (net)

Approx. 13 .3 kg, 29lb So:
(in shipping carton)

TURNTABLE

Platter: 32cm (125/! inches), diecasting

aluminum alloy

SAFETY-RELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BY SHADING AND &
MARK ON THE SCHEMATIC DIAGRAMS,EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION, REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

ATTENTION ALI COMPOSANT AVANT RAPPORT
A LA SECURITE !

LES COMPOSANTS IDENTIFIES PAR UN TRAME ET
UNE MARQUE ASUR LES DIAGRAMMES SCI-1E
MATIQUES, LES VUES EXPLosEES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA sécur-IITE
DE FONCTIONNEMENT. NE REMPLACER cEs
COMPOSANTS QUE PAR DES PIECES SONY 90m
LES NUMEROS SONT DDNNI-S DANS cE MANUEL
ou DES SUPPLEMENTS PUBLIES PAR sonv.

Motor:

Speeds:

Starting Characteristics:

Wow and Flutter:

S/N Ratio:

initial Drift:

Load Characteristics:
Automatic System:

w

Type:

Arm Length:

Overhang:

Tracking Error:

Tracking-force Adjustment

Range:
Shell Weight:

Cartridge Weight Range:

(including shell)

Drive System:

US Model
Canadian Mode/
AEP Model
UK Model

E Model

STERET) TURNTABLE SYSTEM

DC servo-controlled linear BSL motor

Direct drive, crystal lock control
system

33/3,45 rpm.

Comes to nominal speed within a half
revolution (33V3 rpm)

10.04596 (DIN)
0.025% IWRMS)

75 dB (DIN-B)
Within 0.0003 %
0 % up to 1509 tracking force

Lead-in, return, reject, repeat

Statically balanced, universal

330mm (13 inches), overall
235 mm (91/. inches), pivot-to-styl us

14mm IV/Isinches)

+2°27', -I°3o'

0-259
119

IT 0 -19.59
(19.0 27. 59g with extra weight)

SONY:
SERVICE MANUAL

Page 2

PS-X60

SERVICING NOTE
I. Wait a few minutes after the power switch is
turned on.

2. When replacing the lamp of automatioretum
detection, make the automatic-return adjustment

(page 13),
3. Platterhandlingt

Bottom View of platter

Be sure not to spoil the magnetic
coating (dark brown calarl.

4. When operating the set, confirm that the transit
screws are removed.

red-pain ted
transit scre w;

MODEL IDENTIFICATION
- Specification Label -

(US, Canadian model)

t
STEREO TURNTABLE SYSTEM
SONK MODEL No,PS -X60
Ac |20V 60H: aw
SERIAL Noi
MADE IN JAPAN A
IAEP, E1 and E2 model)
STEREO TURNTABLE SYSTEM
SONZ: MODEL No,PS-X60
NIZO,220V 50/60H1 Izw
SERIAL N0. E
L_ MADE IN JAPAN J
(UK model)
r_
STEREO TURNTABLE SYSTEM
SONY MODEL No,PS-X60
~220,24ov season: Izw
SERIAL No. E
_ MADE IN JAPAN

- Power Cord -

E2 model: parallelvblade plug
1-534-487-XX

zamta

E1 model: euro-plug
1-551-530-00
