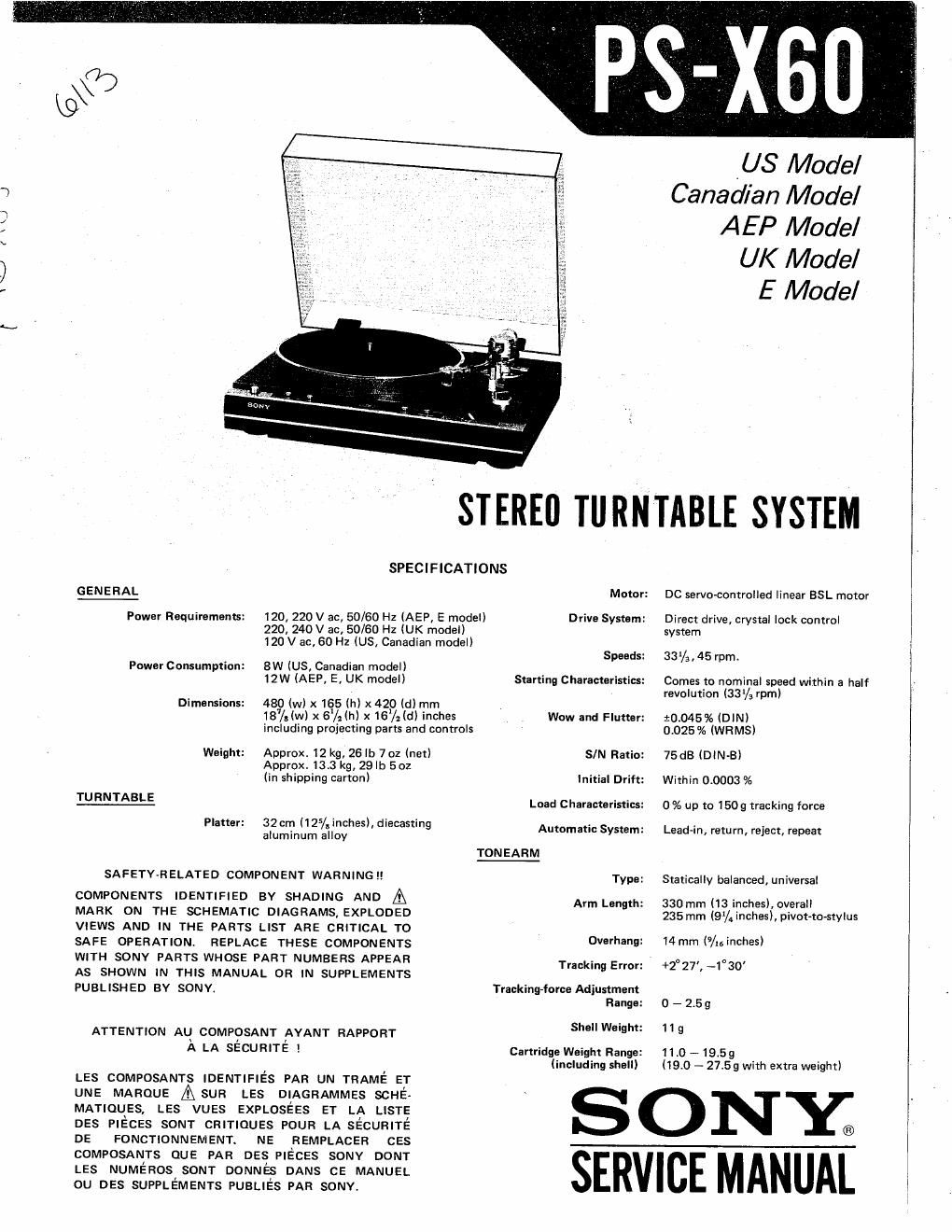

Page 1

J

z \\<)

\ K)

Sony

GENERAL

Power Requirements:

Power Consumption:

VUS Model
Canadian Model
AEP Model

UK Model
E Model

STEREll TURNTABLE SYSTEM

SPECIFICATIONS

120, 220 V ac, 50/60 Hz (AEP, E model)
220, 240 V ac, 50/60 HZ (UK model)
120 V ac, 60 Hz (US, Canadian model)

8W (US, Canadian model)
12W (AEP, E, UK model)

Dimensions: 480 (w) X 165 (h) x 429 (d) mm
187/alw) x 67:01) x Iii/aid) inches
including projecting parts and controls

Weight: Approx. 12 kg, 26 lb 7oz (net)

Approx: 13.3 kg, 29 lb 5 oz
(in shipping carton)

TURNTABLE

Platter: 32 cm (125/a inches), diecasting
aluminum alloy

SAFETY-RELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BY SHADING AND A
MARK ON THE SCHEMATIC DIAGRAMS,EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

ATTENTION ALI COMPOSANT AYANT RAPPORT
A LA SECURITE !

LES COMPOSANTS IDENTIFIES PAR UN TRAME ET
UNE MAROUE sun LES DIAGRAMMES SCHE-
MATIoUEs, LES qus EXPLosEEs ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER cES
cOMPOSANTS oUE PAR DES PIECES SONY DONT
LEs NUMERos SONT DONNES DANS CE MANUEL
ou DES SUPPLEMENTS PUBLIES PAR SONY.

M otor:

Drive System:

Speeds:

Starting Characteristics:

Wow and Flutter:

S/N Ratio:

Initial Drift:

Load Characteristics:

Automatic System:

TONEARM

Type:
Arm Length:

Overhang:

Tracking Error:

Tracking-force Adjustment

Range:
Shell Weight:

Cartridge Weight Range:
(including shell)

DC servocontrolled linear BSL motor

Direct drive, crystal lock control
system

33% , 45 rpm.

Comes to nominal speed within a half
revolution (33% rpm)

$034596 (DIN)
0.025% (WRMS)

75dB (DIN-B)
Within 0,0003%
0% up to 1509 tracking force

Lead-in, return, reject, repeat

Statically balanced, universal

330mm (13 inches), overall
235 mm (Bl/finches). pivot»toatylus

14 mm (9/16 inches)

+2°27', -1°3o'

0-2.5g
11g
11.0w19.59

(190 ~ 27.59 with extra weight)

T SONY;

SERVICE MANUAL

Page 2

:S-Xbo I

SERVICING NOTE

1. Wait a few minutes after the power switch is 4 When operating ,the set, confirm that the transit
turned on. screws are removed, '

2. When replacing the lamp of automatic-return
Llelection, make the automatic-return adjustment
(page 13)

3. Platter handling.

Battom View of platter

redwain ted
trans/t screw;

Be sure not to spoil the magnetic
coating (dark bio wn color).

MODEL IDENTIFICATION

~ Specification Label - - Power Cord -
E1 model: euro-plug E2 model: parallel-blade plug
(US, Canadian model) 1-551-530-00 1-534-487-XX
l SON-x STEREO TURNTABLE SYSTEM
MODEL NO,PS -X60 = X
ac IZOV 60H: 8w l:( E ,

SERIAL N0.
MADE IN JAPAN

(AEP, E1 and E2 model)

STEREO TURNTABLE SYSTEM
SONY MODEL NO,PS - X 60

MI20,220V SO/GOHI IZW
SERIAL N0. E
MADE IN JAPAN

STEREO TURNTABLE SYSTEM
SONY MODEL N0,PS-X60

~220,240V SO/GOHZ l2W
SERIAL N0. E
MADE IN JAPAN

(UK model)
