Sony ps x 55 service manual

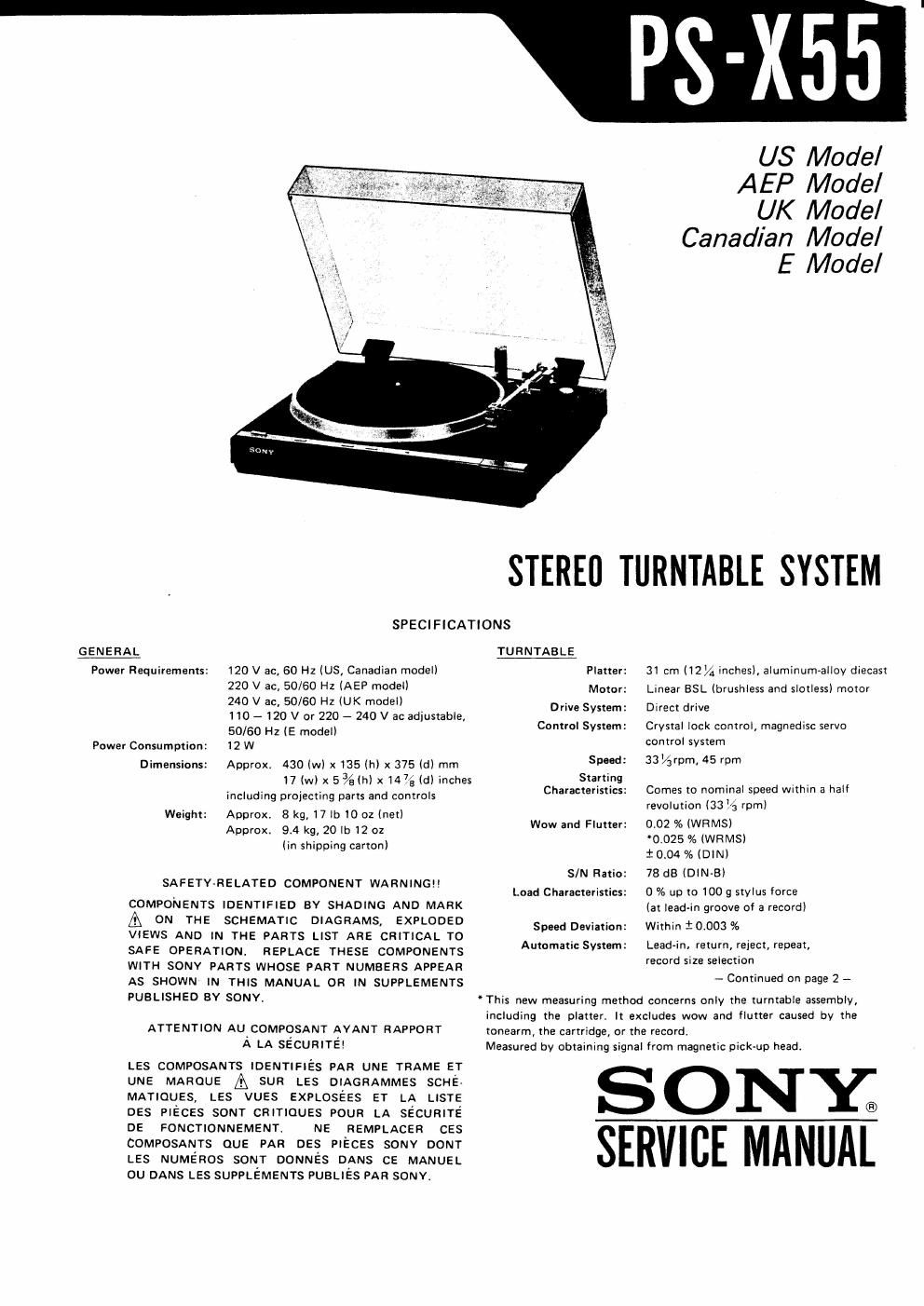

Page 1

US Model

AEP Model

UK Model
Canadian Model
E Model

STEREO TURNTABLE SYSTEM

SPECIFICATIONS

GENERAL TURNTABLE

Power Requirements: 120 V ac, 60 Hz (US, Canadian model) Platter: 31 cm (12% inches), aluminum-alloy diecast
220 V BC, 50/50 HZ (AEP "10m? Motor: Linear BSL lbrushless and slotless) motor
240 V ac, 50/60 Hz (UK model)
110 - 120 V or 220 -~ 240 V ac adjustable,
50/60 Hz (E model)
Power Consumption: 12 W
Dimensions: Approx 430 (W) x 135 (h) x 375 (d) mm

17 (w) x 53/901) x 147g (dl inches Starting C e | d th'n a half
including projecting parts and controls Characteristics. omes to nomina spee w I

W h A 8 k 17 lb 10 ( ) revolution (33% rpm)
9! t: I'OX. , OZ 9
g Aggrox 9 49kg 20|b12 01 Wow and Flutter: 0.02 % (WRMS)

. (in shioping carton) .0'025 % (WRMS)

i 0.04 % (DIN)
SIN Ratio: 78 dB (DIN-B)

Load Characteristics: 0 % up to 100 g stylus force
COMPONENTS IDENTIFIED BY SHADING AND MARK (at leadvin groove of a record)
& ON THE SCHEMATIC DIAGRAMS, EXPLODED spew Deviation: Within tooosse
VIEWS AND IN THE PARTS LIST ARE CRITICAL T0
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

Drive System: Direct drive
Control System: Crystal lock control, magnedisc servo
control system

Speed: 33 Varpm. 45 rpm

SAFETY~RELATED COMPONENT WARNING

Automatic System: Lead-in. return, reject, repeat,
record size selection
- Continued on page 2 -

PUBLISHED BY SONV. This new measuring method concerns only the turntable assembly,
including the platters lt excludes wow and flutter caused by the
ATTENTION AUCOMPOSANT AYANT RAPPORT tonearrn, the cartridge, or the record
A LA SECURITEI Measured by obtaining signal from magnetic pickup head.

LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MAROUE A SUR LES DIAGRAMMES SCHE-
MATIOUES, LES VUES EXPLOSEES ET LA LISTE ®

DES PIECES som camouEs POUR LA sécumTé

DE FONCTIONNEMENT. NE REMPLACER CES
COMPOSANTS QUE PAR DES PIECES SONY DONT M
LES NUMEROS SONT DONNES DANS CE MANUEL

0U DANS LES SUPPLEMENTS PUBLIES PAR SONY.
