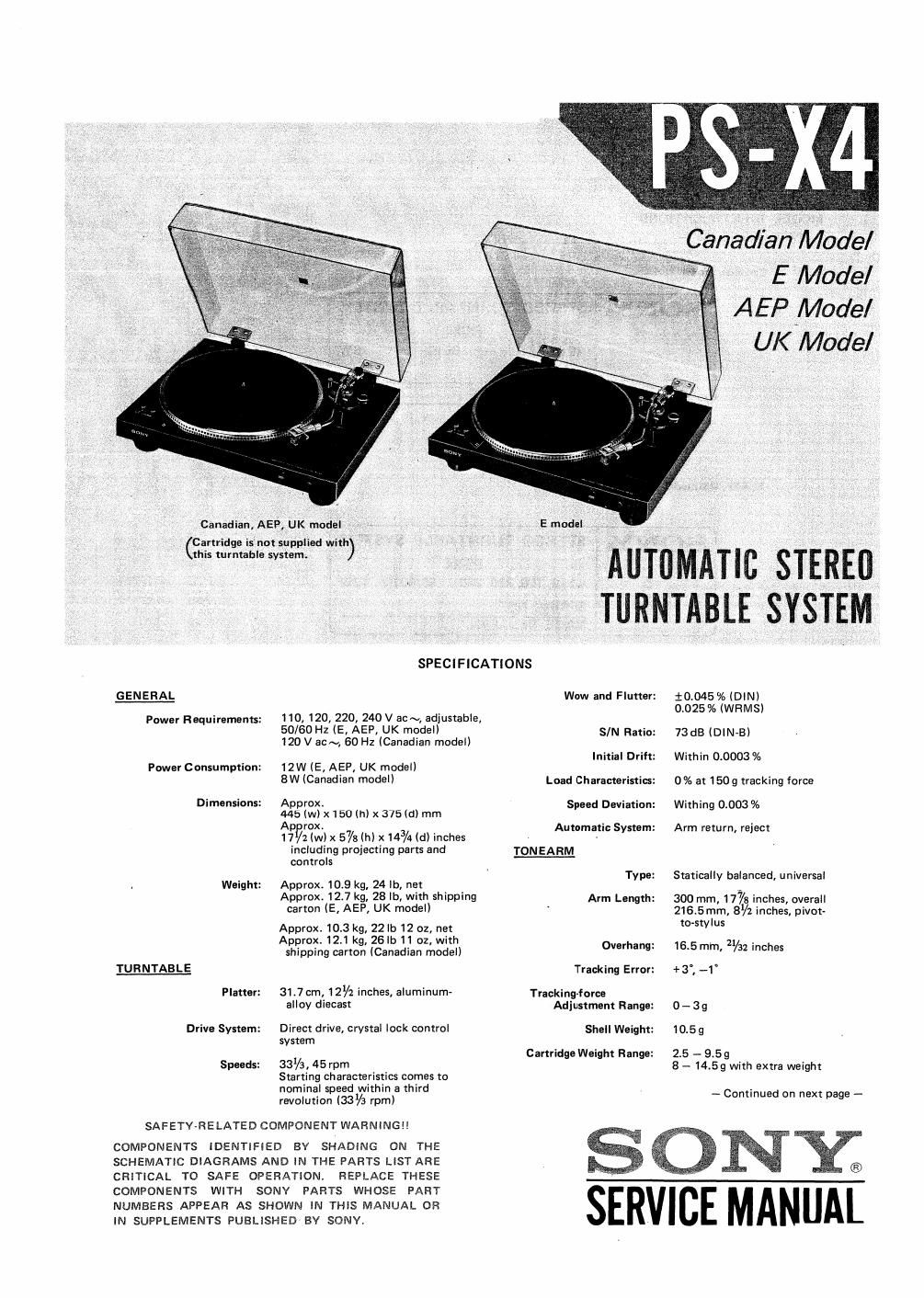

Page 1

Canadian, AEPHUK model

(Cartridge is'not supplied with;
this turntable system:

GENERAL

Power Requirements:

Power C onsumptiun:

Dimensions:

Weight:

TURNTABLE

Platter:

Drive System:

Speeds:

SPECIFICATIONS

110, 120, 220, 240 V ac ~, adjustable,
50/50 HZ (E, AEP, UK model)
120 V ac~, 60 Hz (Canadian model)

12W (E, AEP, UK model)
8W (Canadian model)

Approx
445 (w) x 150 (h) x375 (d) mm

Approx.

17/2 (w) x 573lh)x143/4(d) inches
including projecting parts and
controls

Approx. 10.9 kg, 24 lb, net
Approx. 127 kg. 28 lb, with shipping
carton (E, AEP, UK model)

Approx. 10.3 kg, 22 lb 12 oz, net
Approx, 12.1 kg, 26: 11 02, with
shipping carton (Canadian model)

31.7cm, 121/2 inches, aluminum-
allov diecast

Direct drive, crystal lock control
system

331/3, 45 rpm

Starting characteristics comes to
nominal speed within a third
revolution (331/3 rpm)

SAFETV-RELATED COMPONENT WARNING

COMPON ENTS

IDENTIFIED 8V SHADING ON THE

SCHEMATlC DIAGRAMS AND lN THE PARTS LIST ARE

CRITICAL TO SAFE OPERATION.

REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

Wow and Flutter:

S/N Ratio:

Initial Drift:

Load Characteristits:
Speed Deviation:

Autamatic System:

TON EARM
Type:
Arrn Length:
Overhang:

Tracking Error:

Tracking-force

Adiustment Range:
Shell Weight:

Cartridge Weight Range:

E Model
AEP Model
UK Model

__ *AUmMATIc STEREO
TURNTABLE SYSTEM

$004531: (DIN)
0.025% (WRMS)

73 dB (DIN-B)

Within 0.0003%

0% at 150 g tracking force
Withing 0.003%

Arm return, reject

Statically balanced, universal

300mm, 1778 inches, overall

216.5mm, 81/2 inches, pivot-
to-stylus

16.5mm, 21/32 inches

+3.'_1.

0-39
10.59

25 - 9.5 g
8 A 14.59 with extra weight

- Continued on next page -

SERVICE MAANuf
